Climate Control Module (CCM) [2019-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove blower motor unit, front. Refer to: [BLOWER MOTOR UNIT, FRONT]

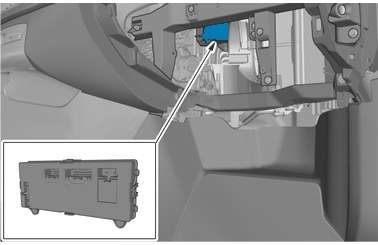

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

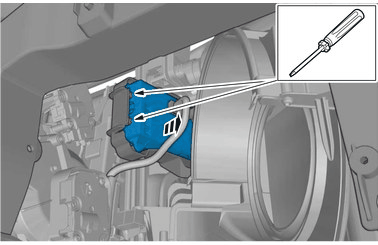

Release the locks.

Courtesy of VOLVO CARS CORPORATION

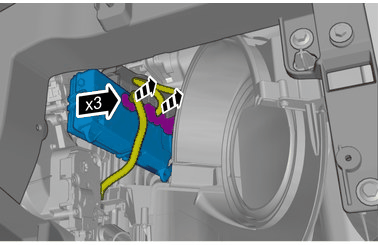

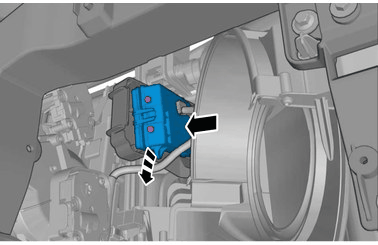

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

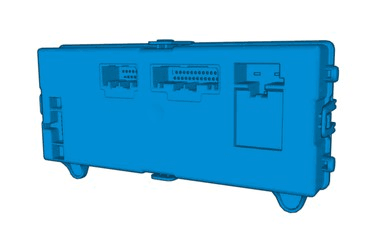

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
