Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

INFORMATION

APPLIES TO POLESTAR

Courtesy of VOLVO CARS CORPORATION

WARNING:

This component must not be adjusted.

ALL VEHICLES

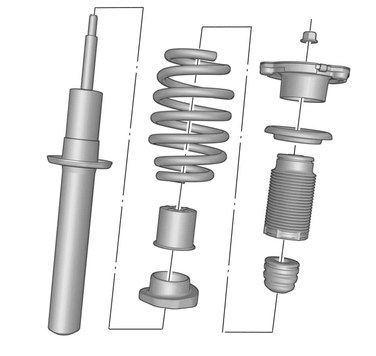

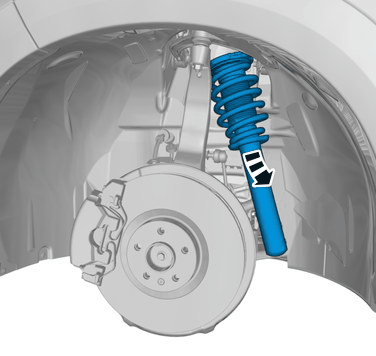

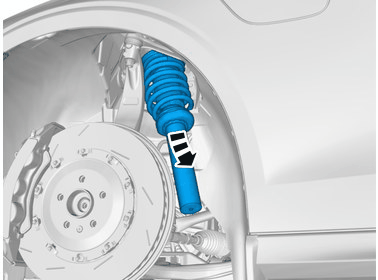

Remove shock absorber fork. Refer to: [SHOCK ABSORBER FORK]

VEHICLES WITHOUT POLESTAR CHASSIS (VARIANT CODE RA09)

Courtesy of VOLVO CARS CORPORATION

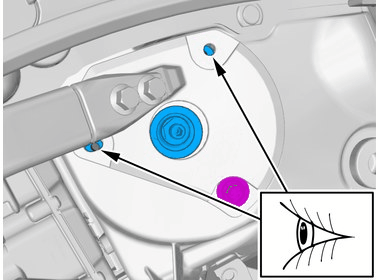

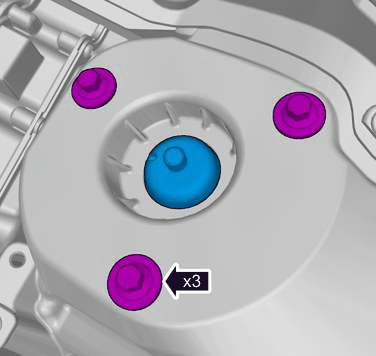

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH POLESTAR CHASSIS (VARIANT CODE RA09)

Perform shock absorber, adjustment. Refer to: [SHOCK ABSORBER, ADJUSTMENT]

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Torque: Shock absorber adjusting screw, 13Nm

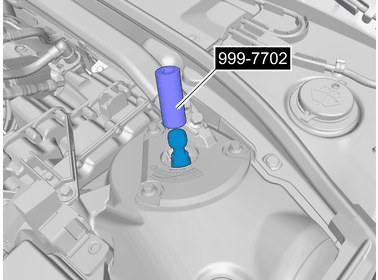

Special Tool: 999 7702 Sleeve

Courtesy of VOLVO CARS CORPORATION

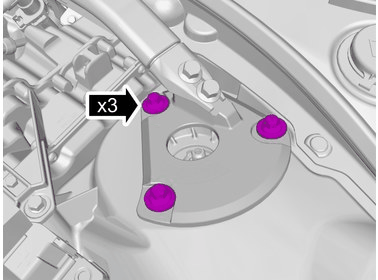

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

If necessary

Remove part of component according to image.

APPLIES TO POLESTAR

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified special tool.

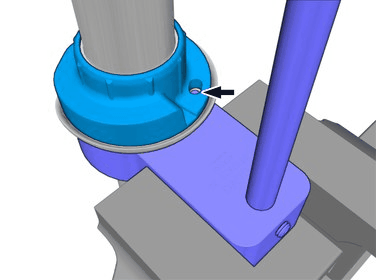

Install the tool.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

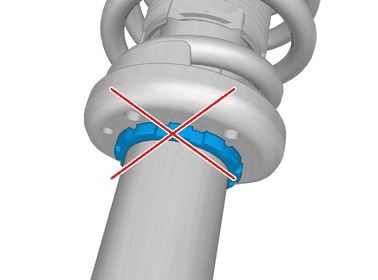

Make sure that the component is positioned correctly.

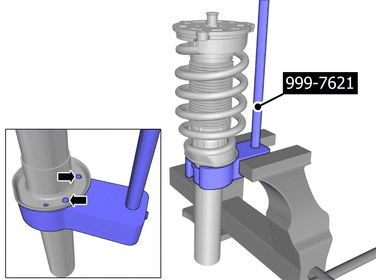

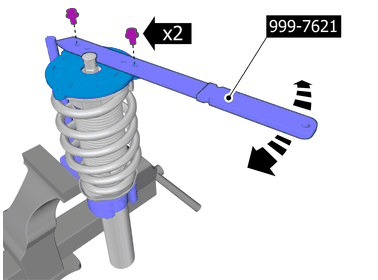

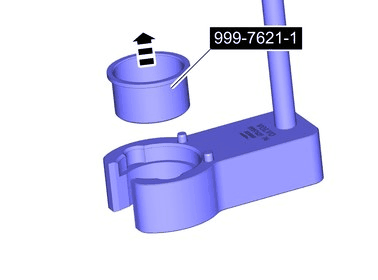

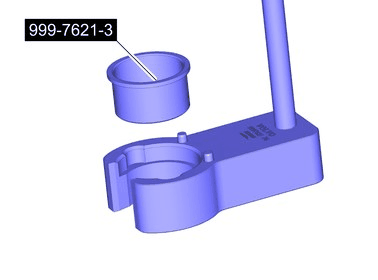

Special Tool: 999 7621 Position adjuster

Courtesy of VOLVO CARS CORPORATION

WARNING:

The safety wire must be installed while the spring is compressed.

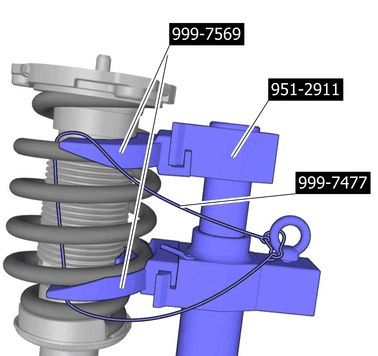

Special Tool: 951 2911 Hydraulic piston Special Tool: 999 7569 Claw Special Tool: 999 7477 Wire

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

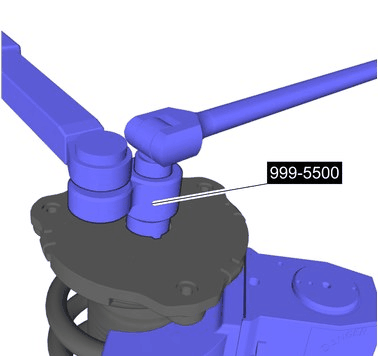

Special Tool: 999 5500 SOCKET UPPER NUT REAR SHOCK ABSORBER

Torque: Bearing front shock absorber to shock absorber, 60Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling the compressed spring.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

NOTE:

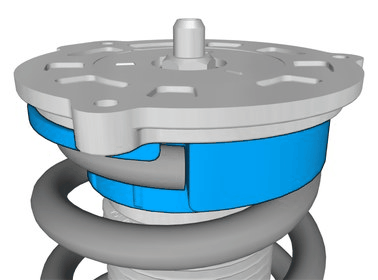

The component can only be installed in 1 position.

Courtesy of VOLVO CARS CORPORATION

NOTE:

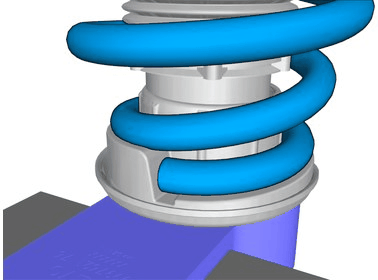

Make sure that the spring is correctly located in the lower spring seat.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

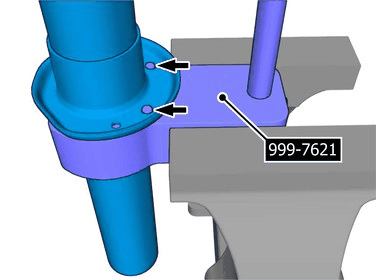

CAUTION:

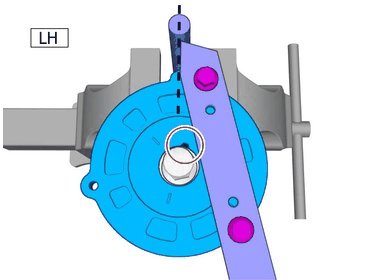

Make sure that the installation marks are aligned.

Locate relevant marking.

APPLIES TO THE RIGHT-HAND SIDE

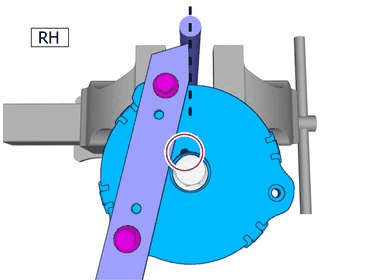

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the installation marks are aligned.

Locate relevant marking.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure at the installation that the component has not become twisted.

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is centered.

NOTE:

The image content (components etc.) may vary depending on equipment level or for other reasons.

Torque: Front shock absorber bearing, to Body, 24Nm
