Transmission Control Module (TCM) [2021, B420T, AWF8G55 AWD | 2021-2022, B420T2, AWF8G45 AWD | 2021-2022, B420T2, AWF8G45 Fwd]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the selector lever is in the neutral (N) position.

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Remove the air filter housing. Refer to: [AIR CLEANER HOUSING]

Courtesy of VOLVO CARS CORPORATION

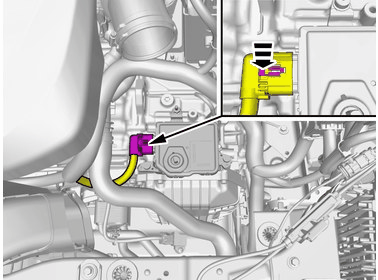

Release the connector's catch.

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

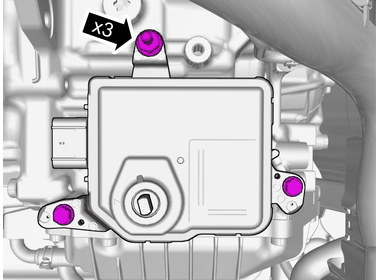

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

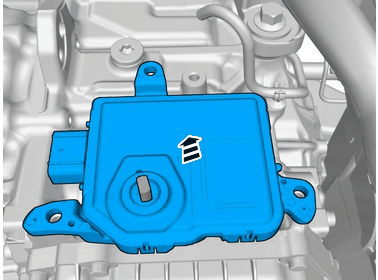

Remove the part carefully

Remove the marked part.
