Speed Sensor, Transmission Input Speed [2021-2022, AWF8G45 AWD | 2021-2022, AWF8G45 Fwd | 2021, AWF8G55 AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the valve housing. Refer to: [VALVE HOUSING]

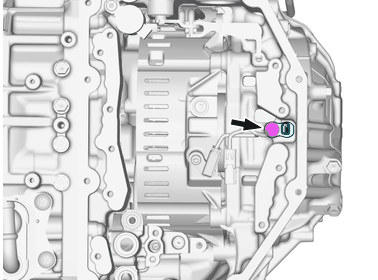

GLL1053304

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Torque: Speed sensor, transmission input speed, 5Nm
