Cover, Control System [2021, B420T, AWF8G55 AWD | 2021-2022, B420T2, AWF8G45 AWD | 2021-2022, B420T2, AWF8G45 Fwd]: Installation

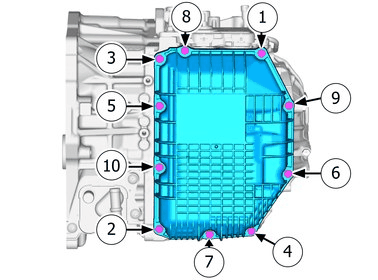

GLL1054565

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the correct sequence during installation.

Install the marked component.

Install the screws.

Torque: Cover, control system, 7Nm

To install, reverse the removal procedure.

Fill oil transmission. Refer to: [TRANSAXLE OIL]
