Transfer Case Seal RH [2021, B420T, AWF8G55 AWD | 2021-2022, B420T2, AWF8G45 AWD]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .
SPECIAL TOOLS

GLL100536Courtesy of VOLVO CARS CORPORATION
999 5651 Extractor (crankshaft rear seal) D5252T
Tool number:  999 5651
Tool description:  Extractor (crankshaft rear seal) D5252T
Tool boards:  21
GLL100260Courtesy of VOLVO CARS CORPORATION
999 5919 PULLER (SEAL-PINION, CAM-CRANKSHAFT) B200-6304
Tool number:  999 5919
Tool description:  PULLER (SEAL-PINION, CAM-CRANKSHAFT) B200-6304
Tool boards:  46

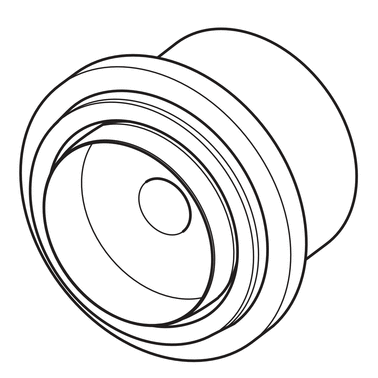

GLL1049925Courtesy of VOLVO CARS CORPORATION
999 7736 Drift
Tool number:  999 7736
Tool description:  Drift
Tool boards:  43

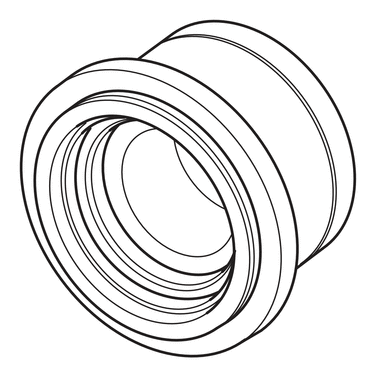

GLL1047071Courtesy of VOLVO CARS CORPORATION
999 7751 Drift
Tool number:  999 7751
Tool description:  Drift
Tool boards:  43
Materials
Designation  Part number
Oil
