Foot Movement Detection Module (FMDM) [2021]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

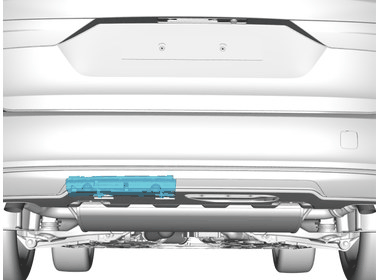

Orientation view

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Courtesy of VOLVO CARS CORPORATION

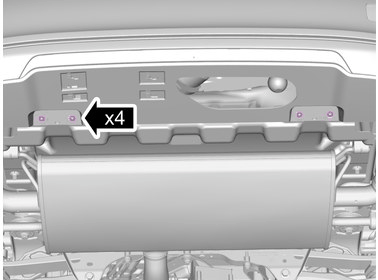

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

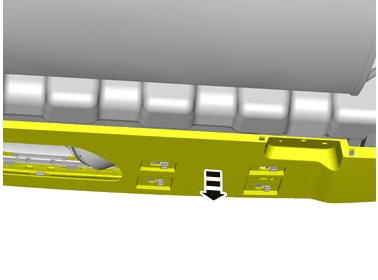

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

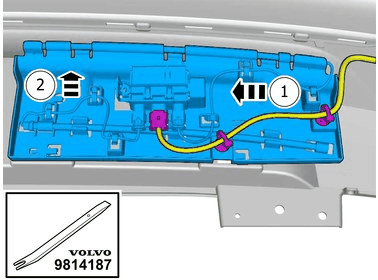

Disconnect the connector.

Loosen the clips.

Remove the marked part.
