Foot Movement Detection Module (FMDM) [2021-2022, E400V6]: Removal

Perform battery disconnecting and connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

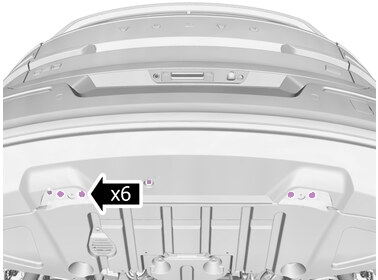

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

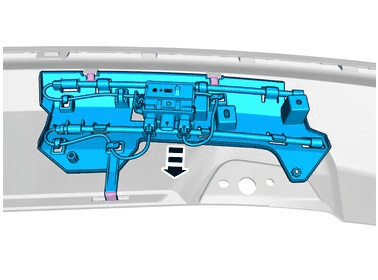

Disconnect the connector.

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

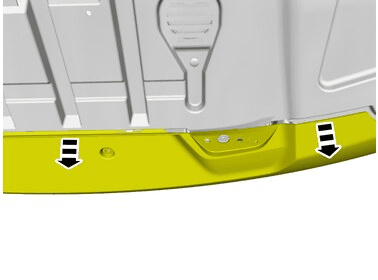

Remove the marked part.
