Switch Module, Instrument Panel [2021, E400V6]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

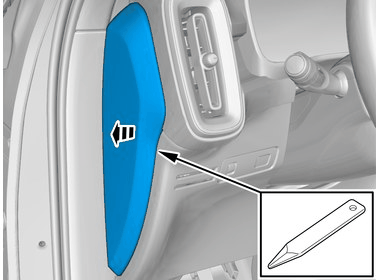

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

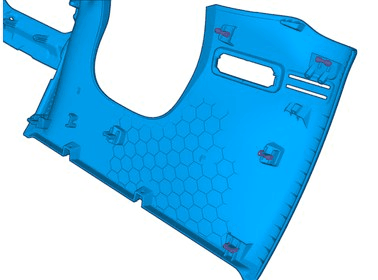

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only use moderate force.

Use hands only.

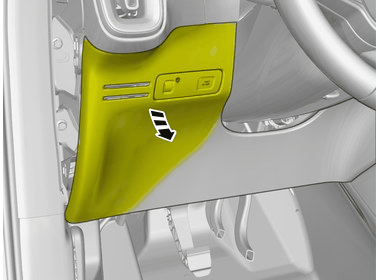

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

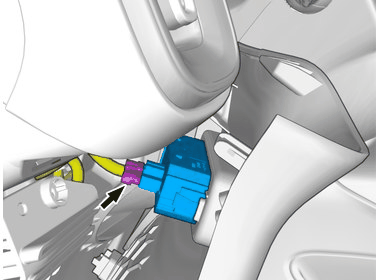

Disconnect the connector.

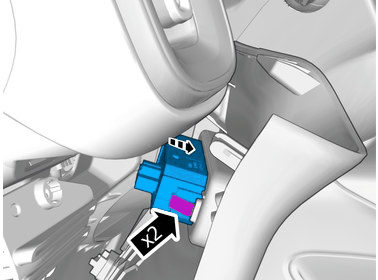

Courtesy of VOLVO CARS CORPORATION

Depress the locking device.

Remove the marked part.
