Wide Angle Vision Module (WAM) [2018-2020]: Removal

LEFT HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

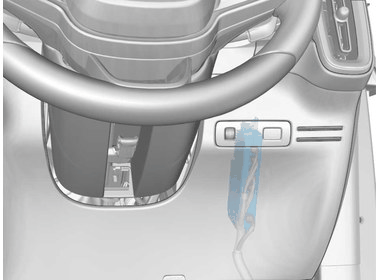

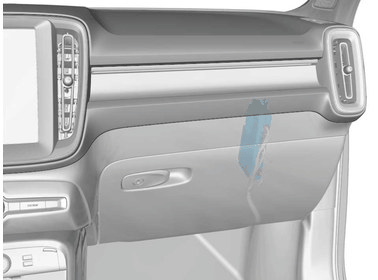

Orientation view

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove glove compartment. Refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

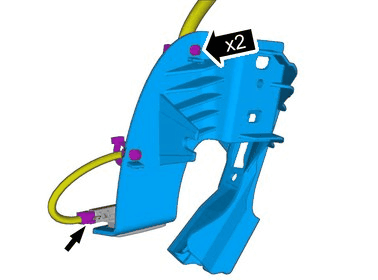

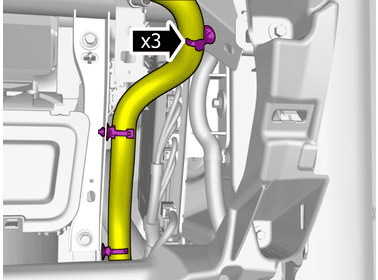

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

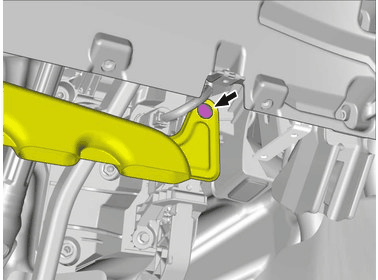

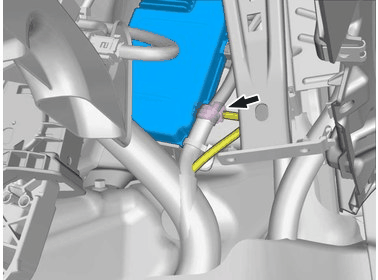

Loosen the clip.

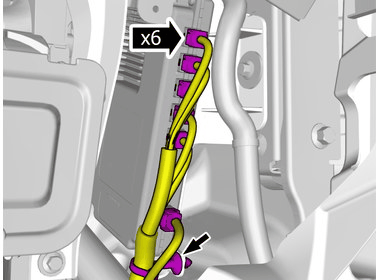

Disconnect the connectors.

Fold marked part aside.

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

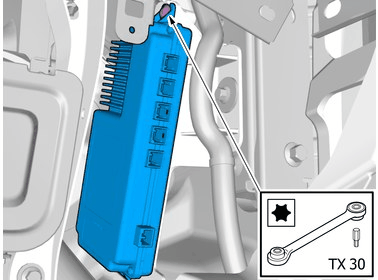

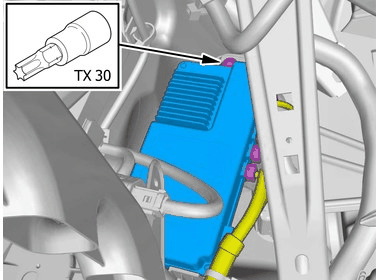

Remove the screw.

Remove the marked part.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

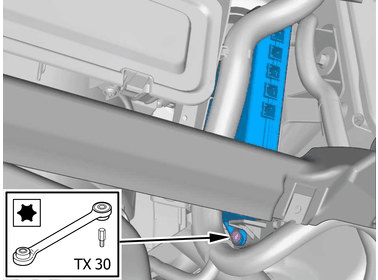

Remove the screw.

Remove the marked part.

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove airbag driver's side knee. Refer to: DRIVER'S KNEE AIRBAG

Courtesy of VOLVO CARS CORPORATION

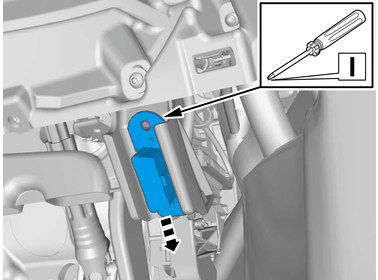

Remove the marked part.

Use: Electrician's screwdriver

Courtesy of VOLVO CARS CORPORATION

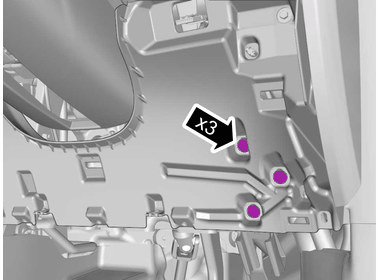

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

View from below

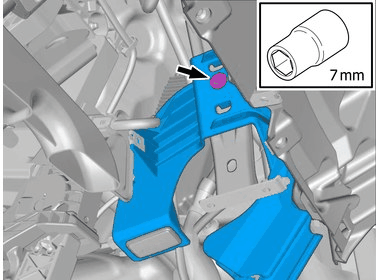

Remove the nut.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

View from below

Disconnect the connector.

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

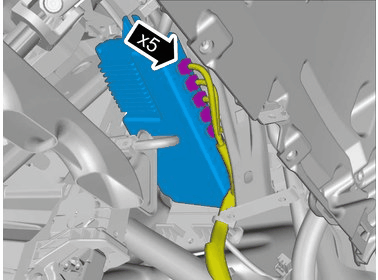

Disconnect the connectors.

Remove the marked part.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Remove the marked part.

ALL VEHICLES
