Transmission Control Module (TCM) [2019-2022, TG-81SC | 2018-2022, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

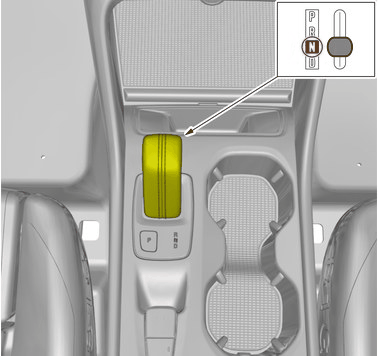

Make sure that the selector lever is in the neutral (N) position.

Perform battery disconnecting and connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING

Remove transmission actuator. Refer to: TRANSMISSION ACTUATOR

Courtesy of VOLVO CARS CORPORATION

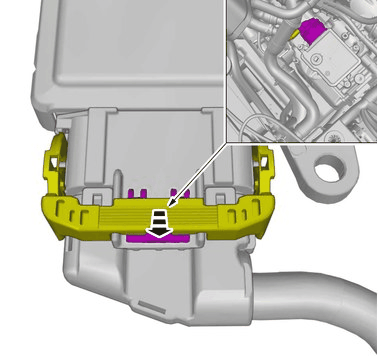

Release the connector's catch.

Lift the marked component up

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

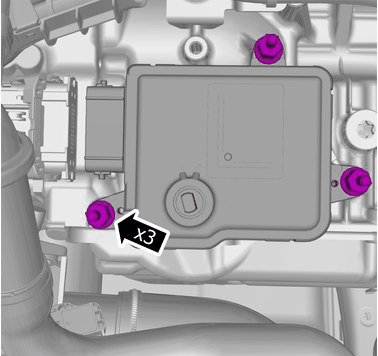

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

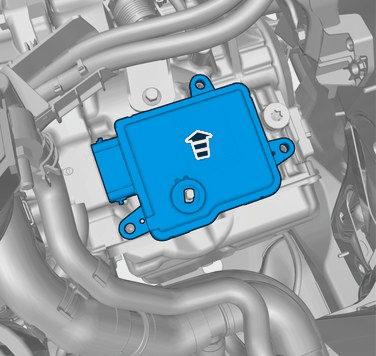

Remove the part carefully

Remove the marked part.
