Wide Angle Vision Module (WAM) [2018-2021]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

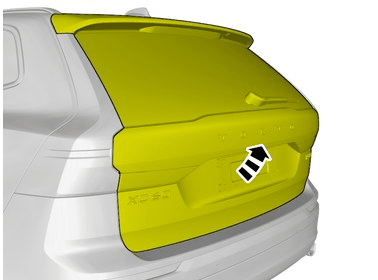

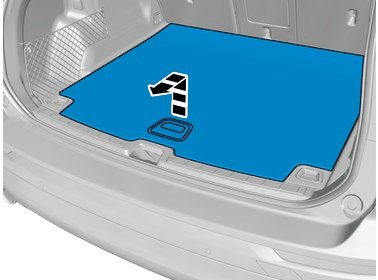

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

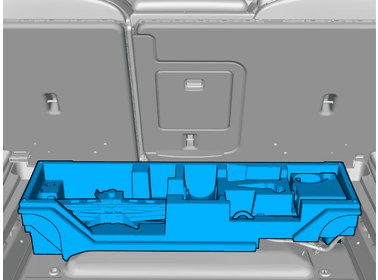

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

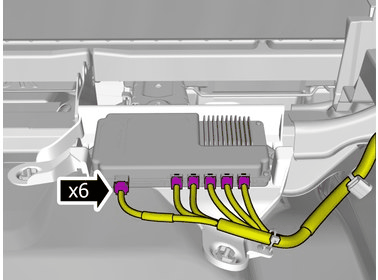

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

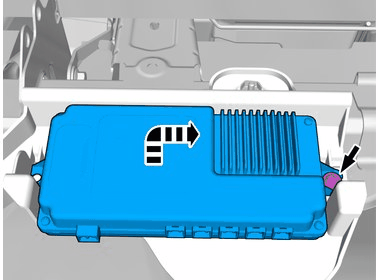

Remove the screw.

Remove the marked part.
