Wide Angle Vision Module (WAM) [2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove passenger side front floor carpet. Refer to: FRONT FLOOR CARPET

Courtesy of VOLVO CARS CORPORATION

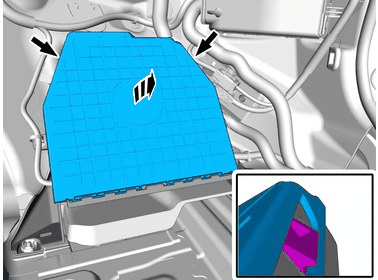

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

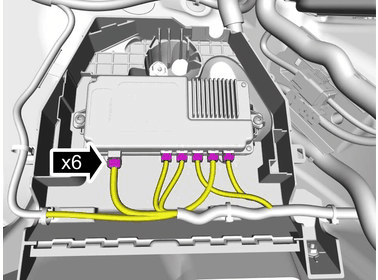

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

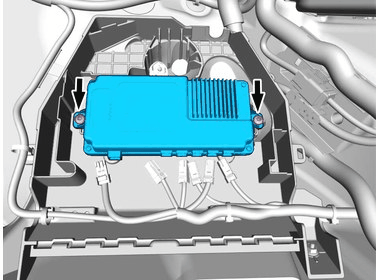

Remove the screws.

Remove the marked part.
