Foot Movement Detection Module (FMDM) [2018-2021]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Follow instructions for lifting points body frame. Refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

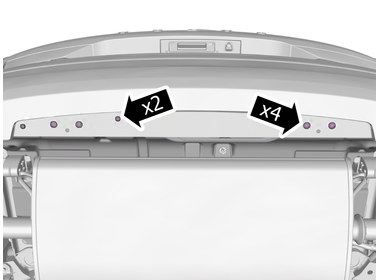

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

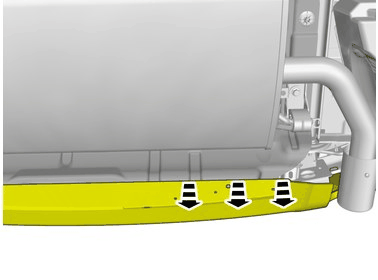

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

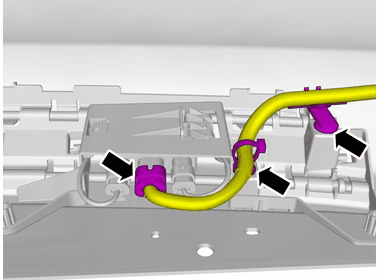

Disconnect the connector.

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

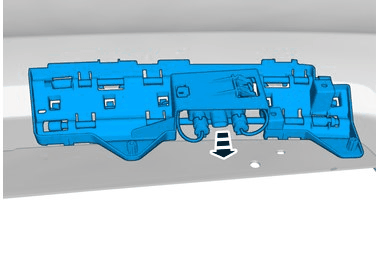

Remove the marked part.
