Knock Sensor [2021-2022, B420T2]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Integrated starter and generator ISG. Refer to: INTEGRATED STARTER - GENERATOR ISG

Courtesy of VOLVO CARS CORPORATION

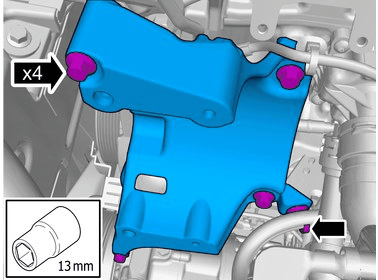

Remove the screws.

Loosen the clip.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

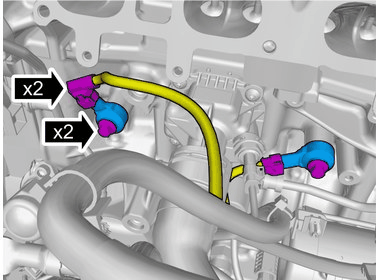

Disconnect the connectors.

Remove the screws.

Torque: Knock sensor, 20 Nm
