Code 6 - Coolant Temperature Sensor (TW Sensor)

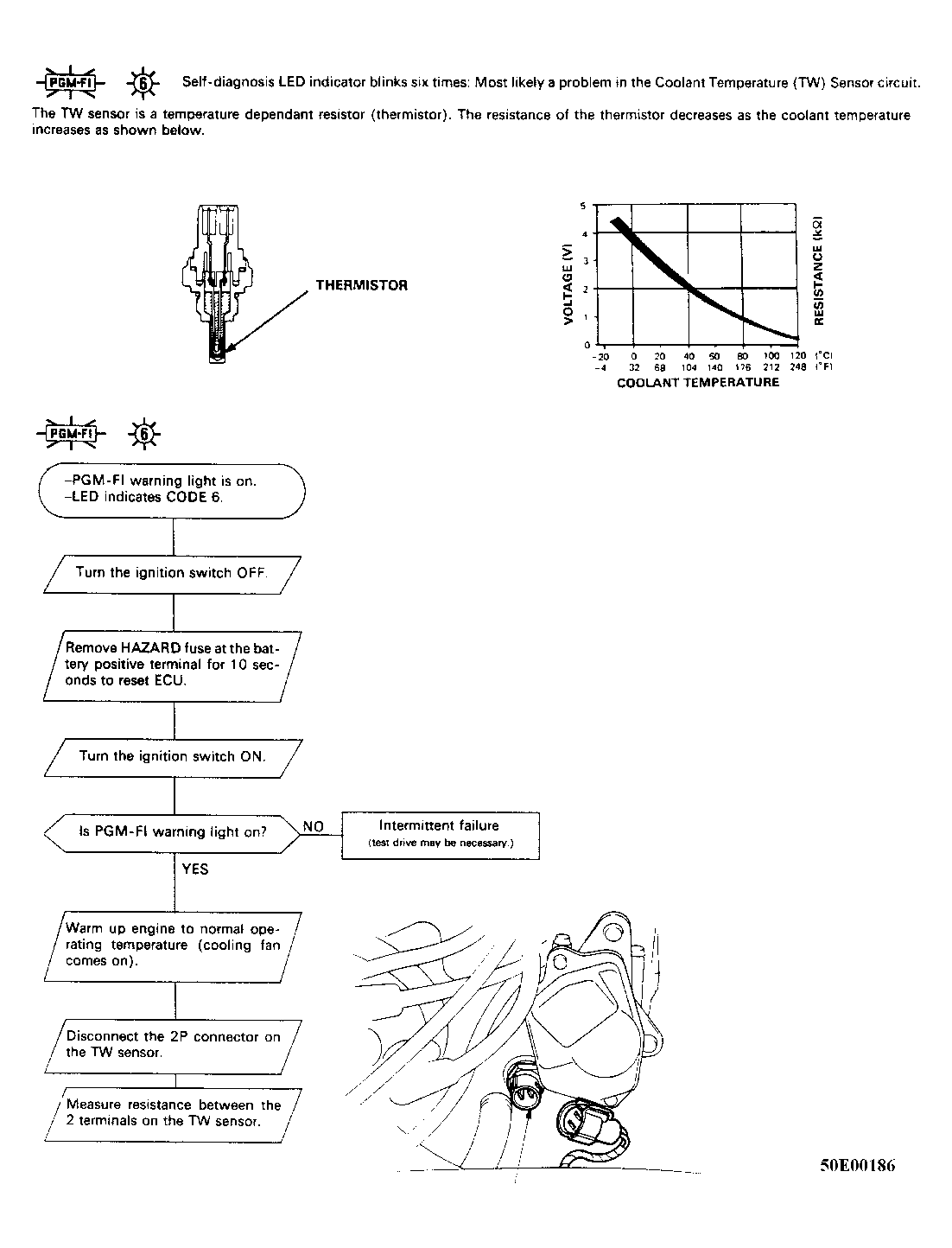

Fig 1: Code 6, TW Sensor, Flow Chart (1 of 2)
G50E00186

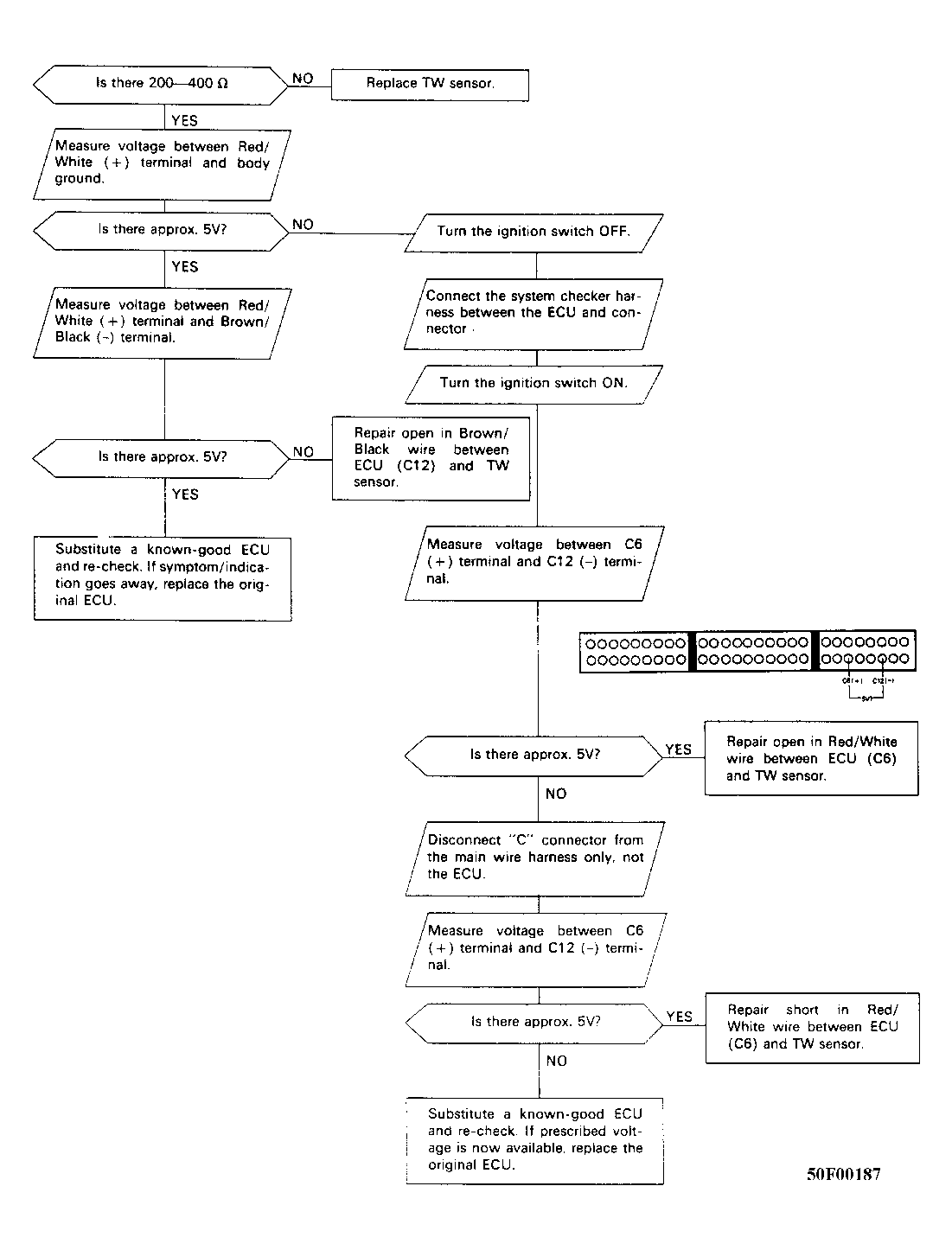

Fig 2: Code 6, TW Sensor, Flow Chart (2 of 2)
G50F00187
