Alternator Fr Signal

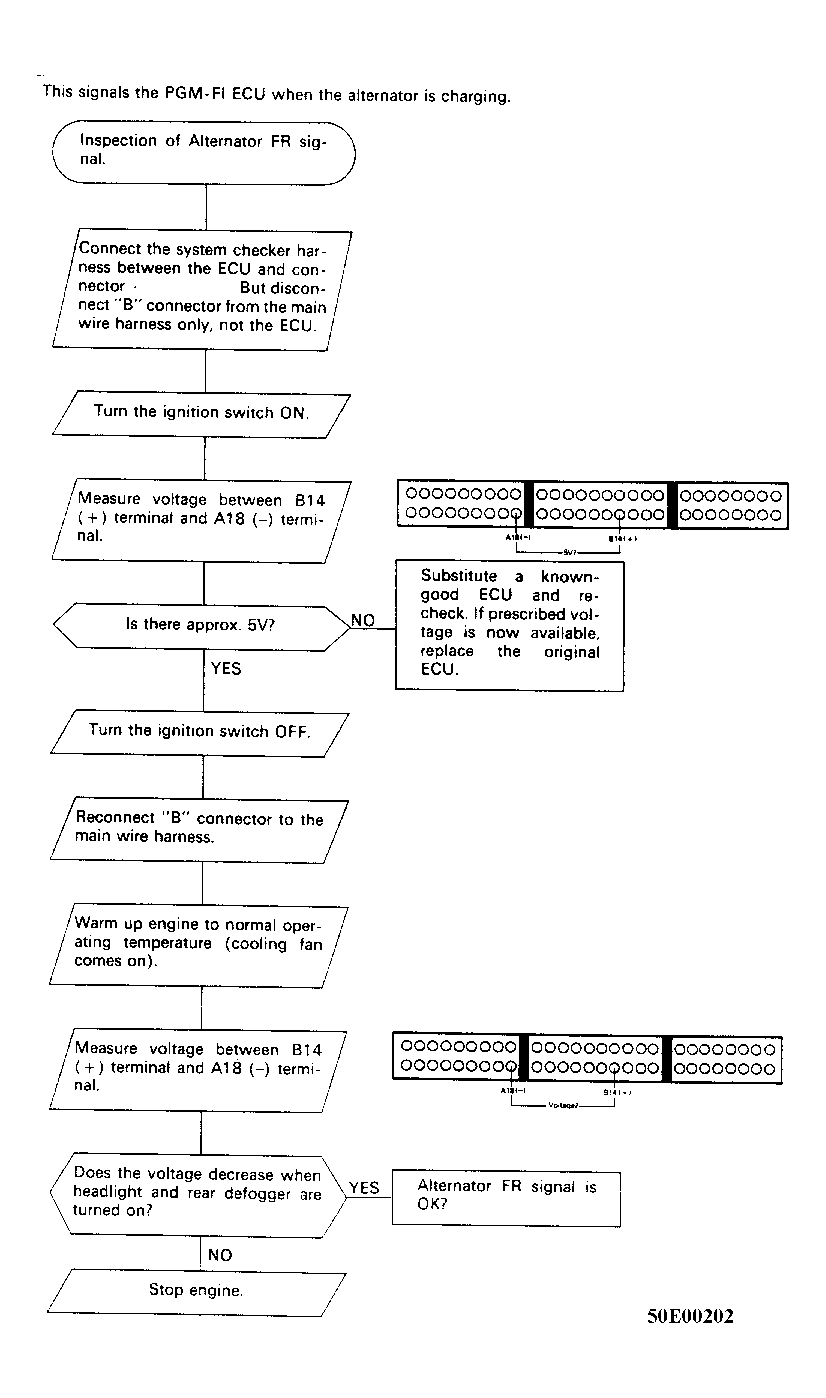

Fig 1: Alternator FR Signal, Flow Chart (1 of 2)

G50E00202

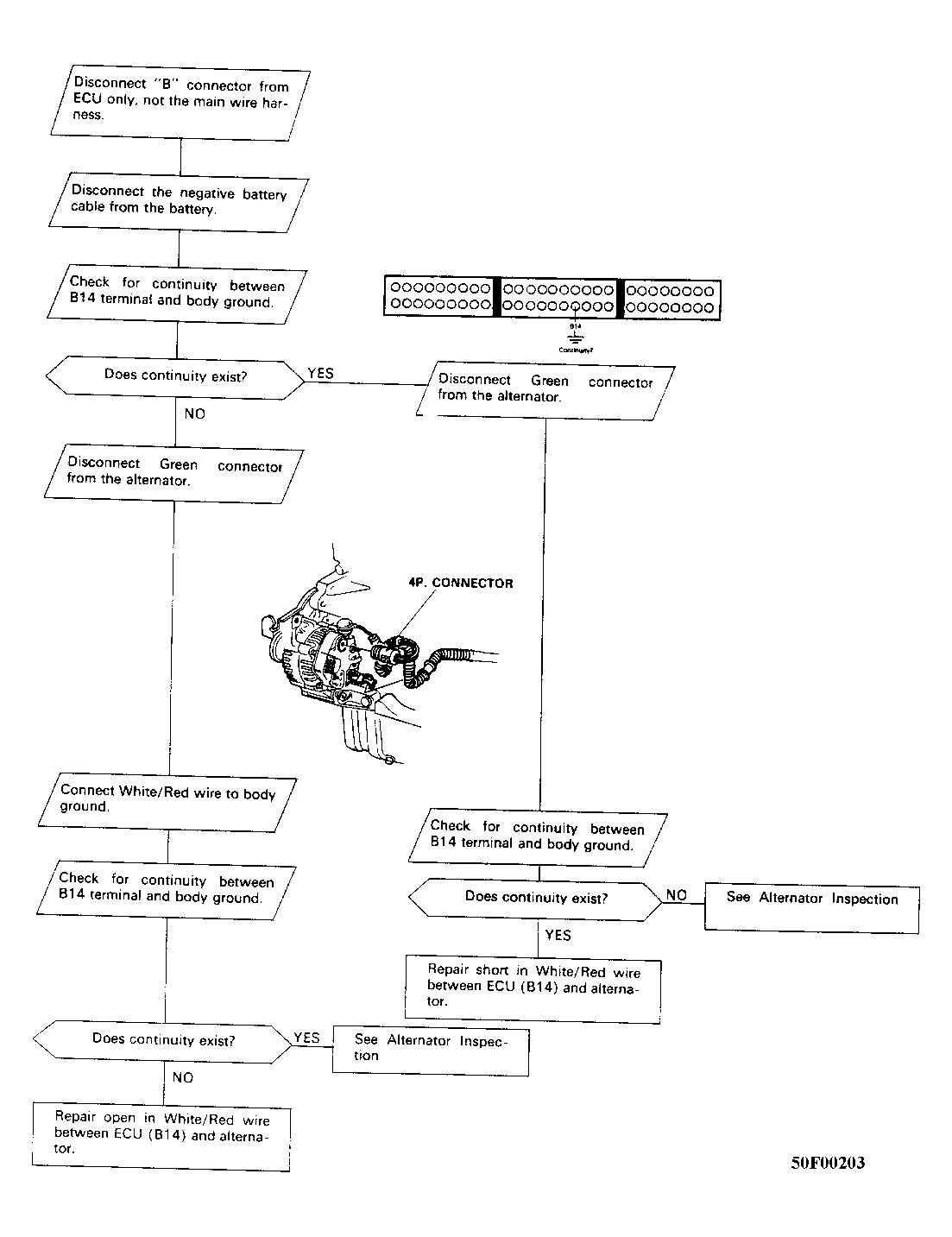

Fig 2: Alternator FR Signal, Flow Chart (2 of 2)

G50F00203
