Power Seat Switch Test

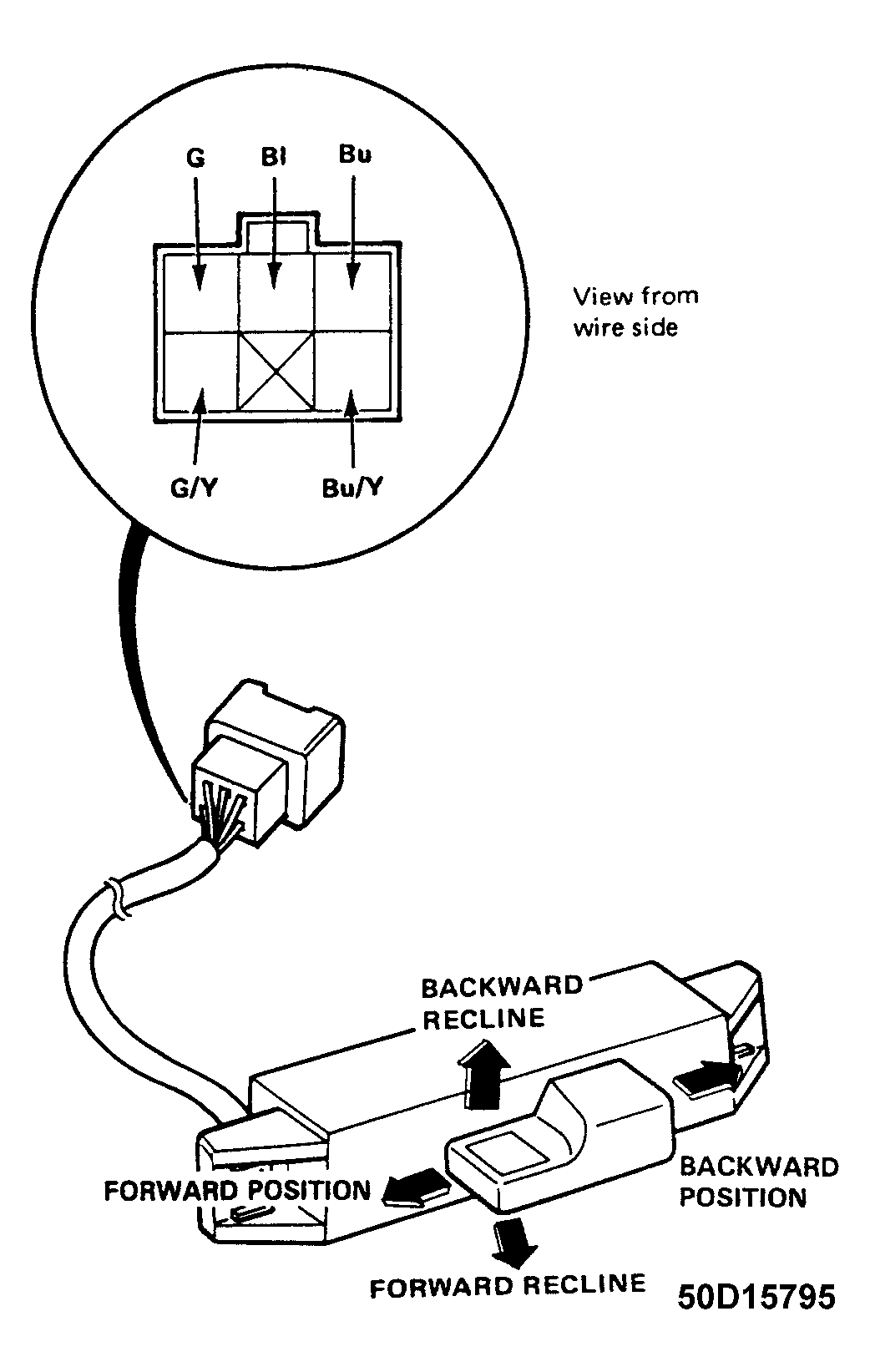

Remove driver's seat, then disconnect 6-P connector from relay assembly. Check for continuity between specified terminals with switch held in each position. Replace switch if continuity is not as specified. See the POWER SEAT SWITCH TEST table. See Fig 1
POWER SEAT SWITCH TEST
| Switch Position | Terminals |
|---|---|
| Forward | Blue-Black |
| Backward | Blue/Yellow-Black |
| Forward Recline | Green-Black |
| Backward Recline | Green/Yellow-Black |
