Electronic Control System: Wiring Diagram

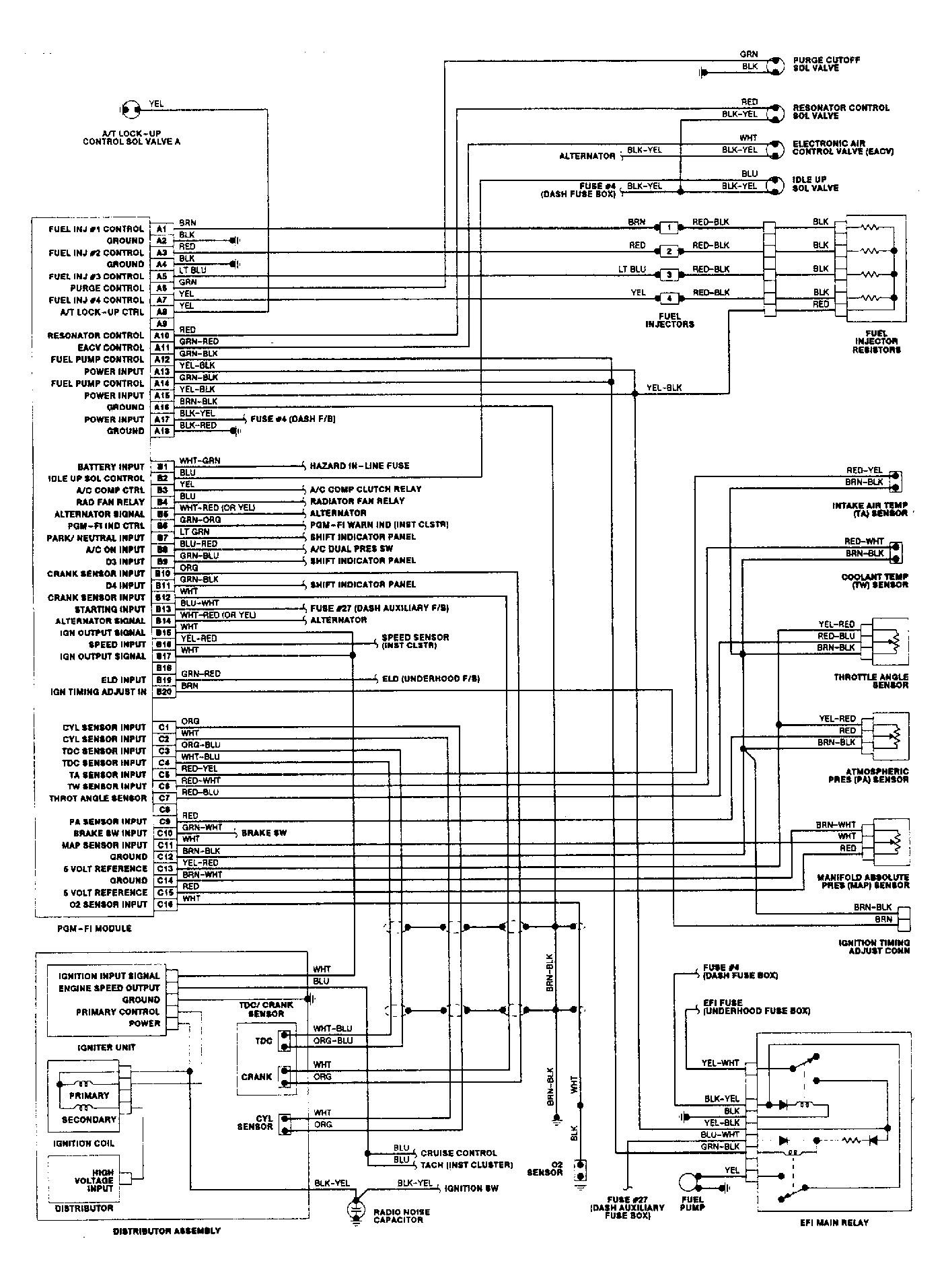

Fig 1: Integra Wiring Diagram

G94322

Courtesy of AMERICAN HONDA MOTOR CO., INC.
