Control Unit Input Test

For control unit input test, refer to illustrations. See Fig 1 and Fig 2 .

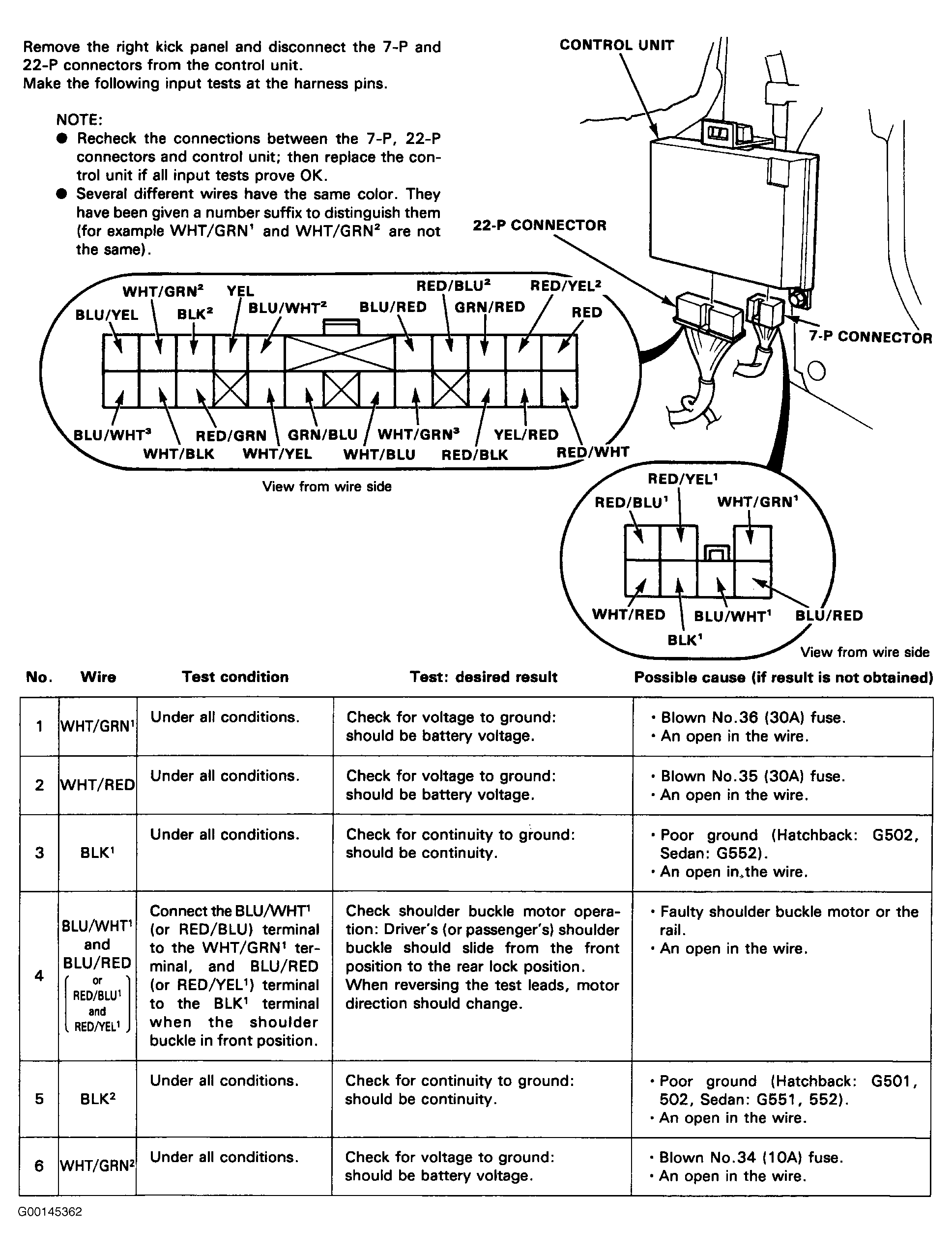

Fig 1: Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

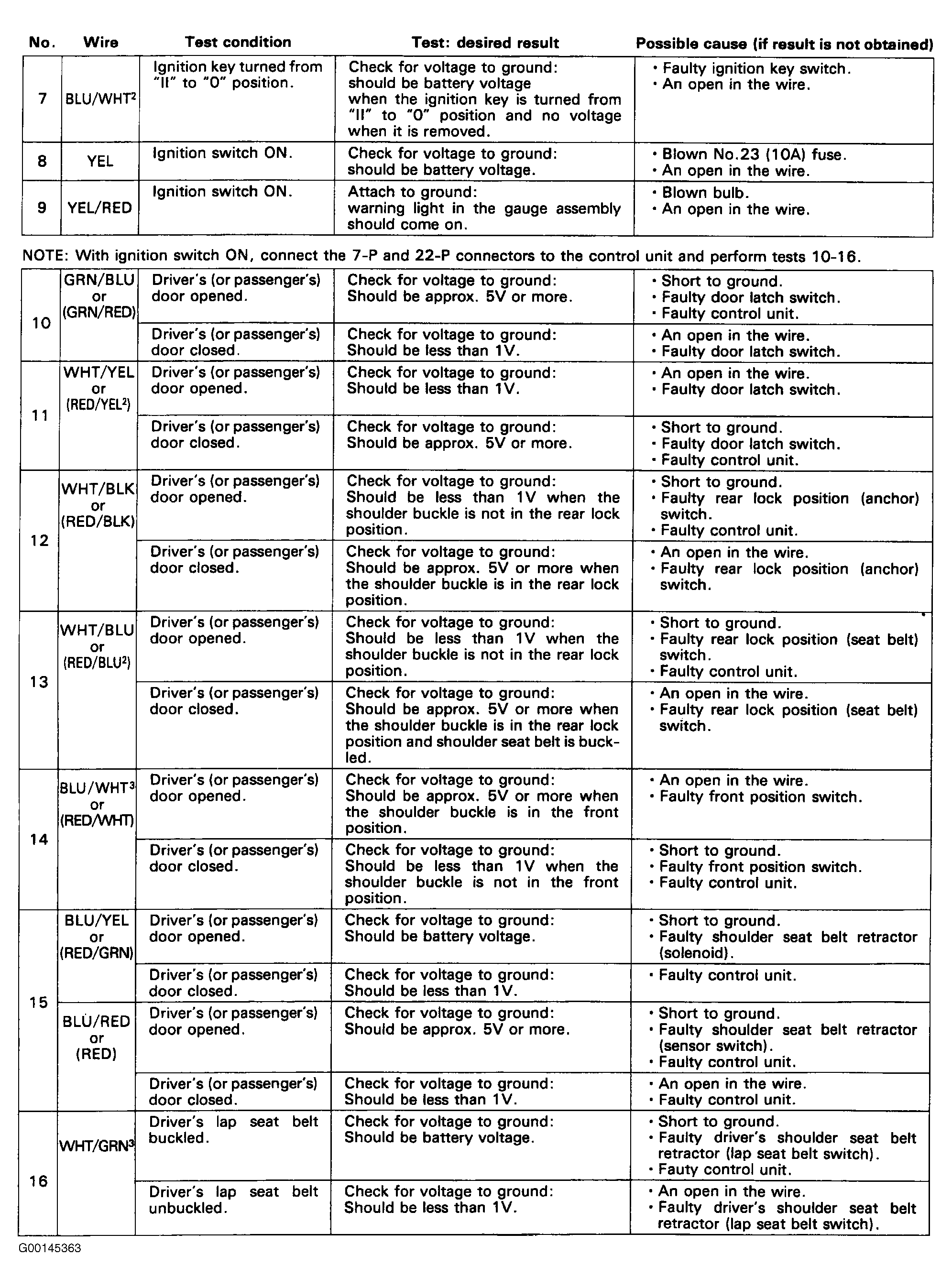

Fig 2: Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
