Driver's Switch

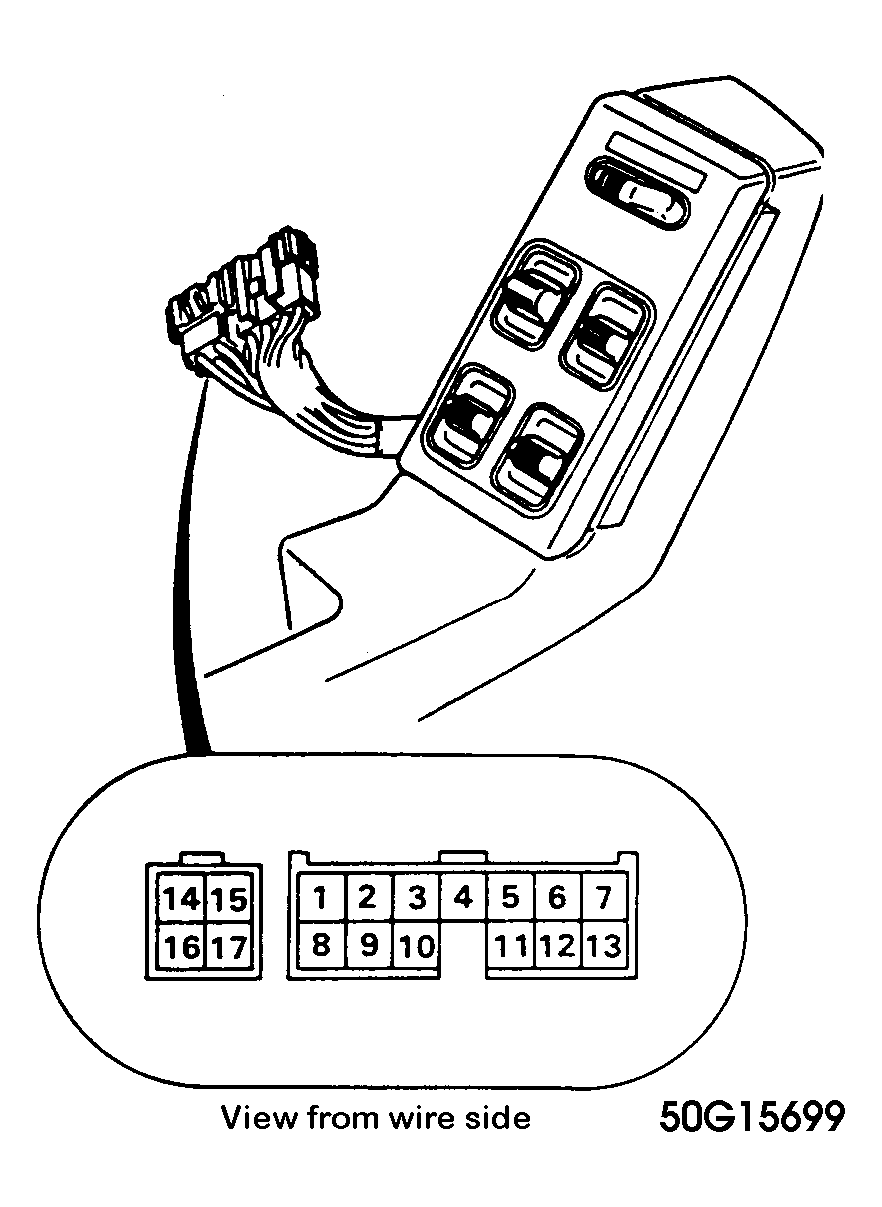

Remove door trim panel. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See appropriate POWER WINDOW DRIVER'S SWITCH TEST table.
NOTE:
The driver's switch cannot be isolated for testing. Perform SWITCH INPUTS TEST. See Figure
. If inputs are normal, but driver's switch does not operate properly, replace driver's switch assembly.
POWER WINDOW DRIVER'S SWITCH TEST
| Position | Main Switch | Pin Continuity | |
|---|---|---|---|
| Switch Light | N/A | 8-1 | |
| Driver's Switch | |||
| Up | N/A | 12-3 | |
| Off | N/A | No Continuity | |
| Down | N/A | 3-13 | |
| Down (Auto) | N/A | 3-13-11 | |
| Right Front Switch | |||
| Up | On | 14-15; 16-17 | |
| Off | 14-15 | ||
| Off | On | 15-16-17 | |
| Off | 15-17 | ||
| Down | On | 14-17; 15-16 | |
| Off | 14-17 | ||
| Right Rear Switch | |||
| Up | On | 4-10; 16-9 | |
| Off | 4-10 | ||
| Off | On | 10-16-9 | |
| Off | 10-9 | ||
| Down | On | 4-9; 10-16 | |
| Off | 4-9 | ||
| Left Rear Switch | |||
| Up | On | 7-6; 16-5 | |
| Off | 7-6 | ||
| Off | On | 6-16-5 | |
| Off | 6-5 | ||
| Down | On | 7-5; 6-16 | |
| Off | 7-5 | ||
