| Accumulator Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Ball Retaining Bolt |
13 (18) |
| Coolant Joint Pipe Bolt |
21 (29) |
| Countershaft Lock Nut |
| Step 1 |
126 (171) |
| Step 2 |
Loosen Lock Nut |
| Step 3 |
126 (171) |
| Differential Case Cover Bolt |
33 (45) |
| Drive Pinion Lock Nut |
|
| Joint Bolt |
29 (39) |
| Mainshaft Lock Nut |
| Step 1 |
126 (171) |
| Step 2 |
Loosen Lock Nut |
| Step 3 |
126 (171) |
| Oil Cooler Nut |
55 (75) |
| Oil Pump Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Rear Cover Bolt |
20 (27) |
| Rear Cover Sealing Bolt |
59 (80) |
| Regulator Valve Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Reverse Idler Gear Shaft Holder Bolt |
20 (27) |
| Ring Gear Bolt |
89 (121) |
| Transaxle Drain Plug |
37 (50) |

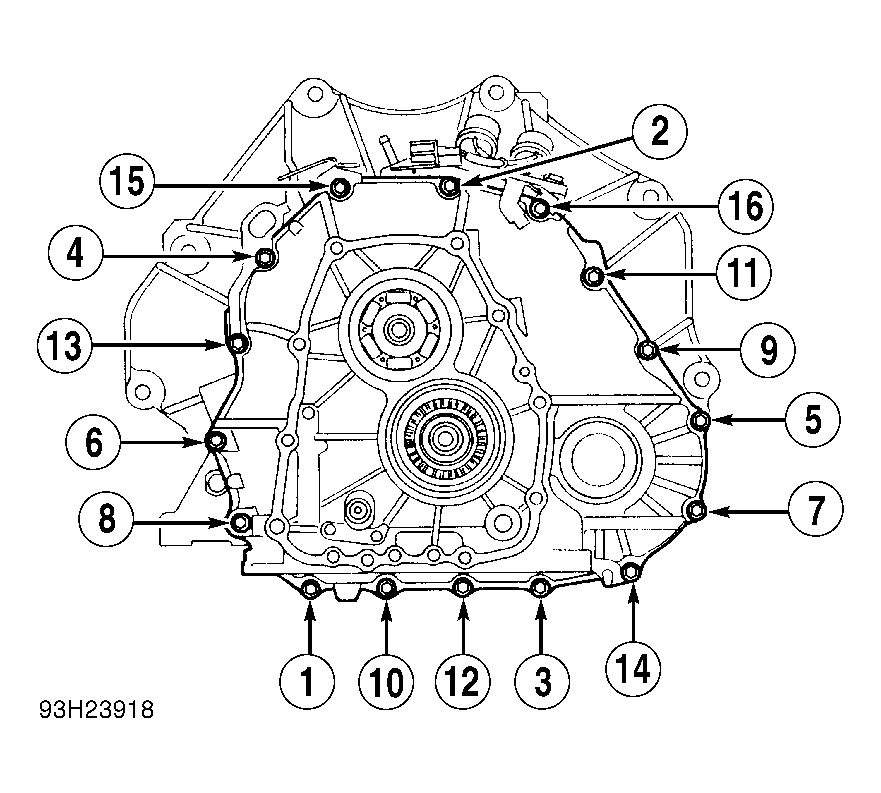

| Transaxle Housing Bolt |
25 (34) |
| INCH Lbs. (N.m) |
| Accumulator Cover Bolt |
106 (12) |
| Breather Plate Bolt |
106 (12) |
| Cable Cover Bolt |
106 (12) |
| Connector Stopper Bolt |
106 (12) |
| Control Lever Bolt |
124 (14) |
| Flange Nut |
53 (6) |
| Fluid Strainer Bolt |
106 (12) |
| Detent Lever Bolt |
124 (14) |
| Detent Spring Plate Bolt |
106 (12) |
| Lock-Up Control Solenoid Valve Bolt |
106 (12) |
| Lower Valve Body Assembly Bolt |
106 (12) |
| Lower Valve Body Assembly-To-Transaxle Housing Bolt |
106 (12) |
| NC & NM Speed Sensor Bolt |
106 (12) |
| Oil Guide Pipe Bolt |
106 (12) |
| Oil Pan Bolt |
106 (12) |
| Oil Pass Body Bolt |
106 (12) |
| Regulator Valve Body Lock Bolt |
106 (12) |
| Secondary Valve Body Bolt |
106 (12) |
| Shift Control Solenoid Valve Bolt |
106 (12) |
| Throttle Valve Body Bolt |
106 (12) |
| Wiring Harness Clamp Bolt |
106 (12) |
| 1st & 2nd Accumulator Cover Bolt |
106 (12) |
