Wiring Diagrams

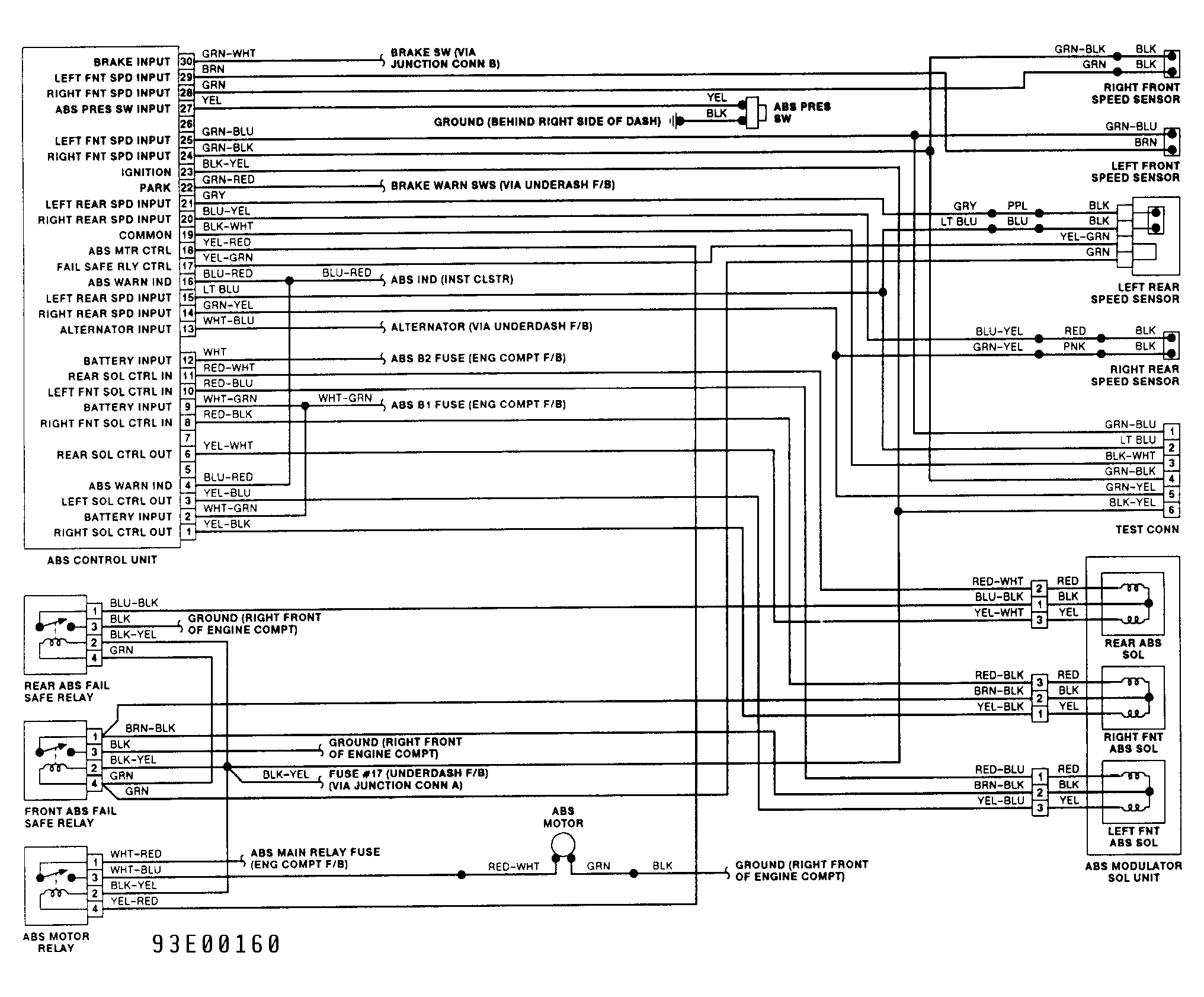

Fig 1: Anti-Lock Brake System Wiring Diagram (Integra)
G93E00160

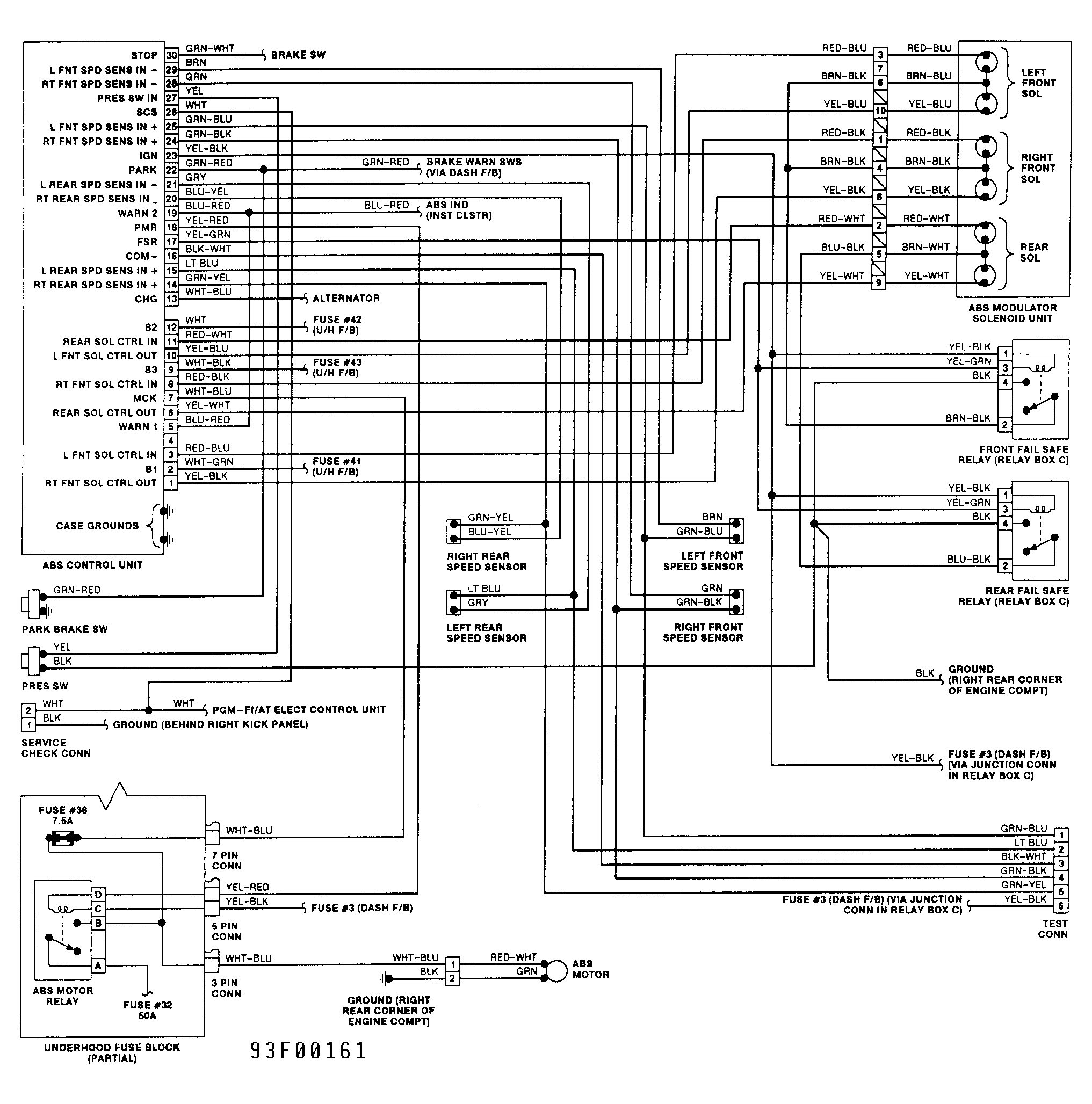

Fig 2: Anti-Lock Brake System Wiring Diagram (Legend)
G93F00161

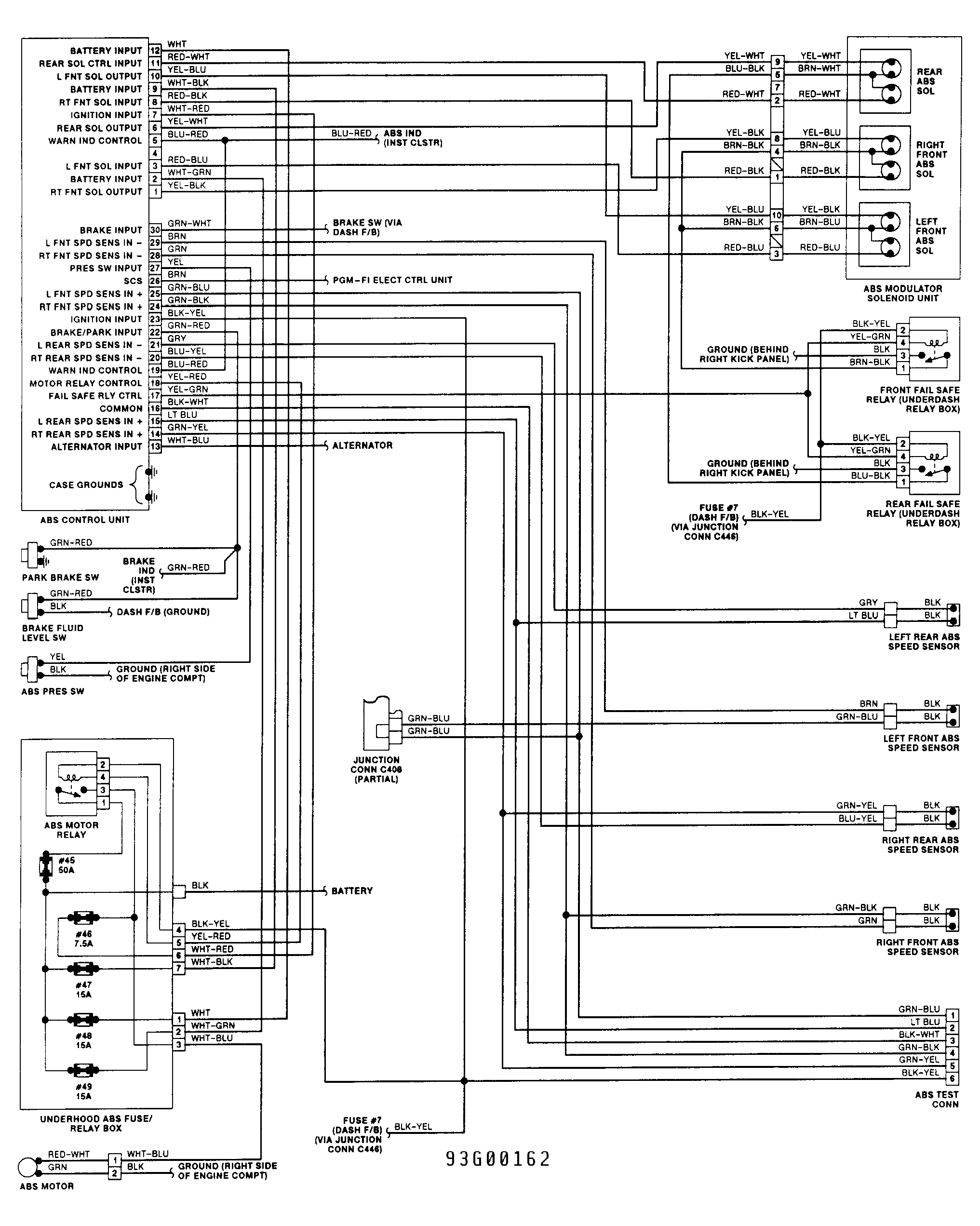

Fig 3: Anti-Lock Brake System Wiring Diagram (Vigor)
G93G00162
