Power Mirror Motor Test

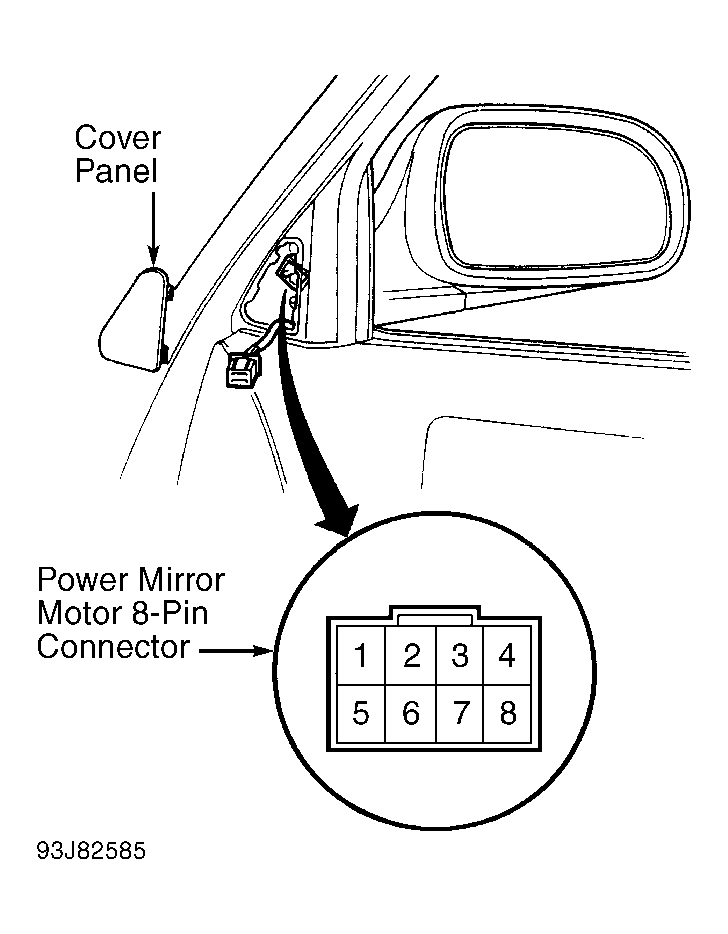

Remove cover panel. Unplug connector. Using fused jumper wires, connect specified terminals to battery voltage and ground. See Fig 1 . Replace motor assembly if operation is not as specified. See POWER MIRROR MOTOR TEST table.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin | Ground Pin | Mirror Operation |
|---|---|---|
| 8 | 7 | Up |
| 7 | 8 | Down |
| 7 | 6 | Left |
| 6 | 7 | Right |
| 3 | 4 | Defogger On |
