Power Mirror Switch Test

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See POWER MIRROR SWITCH CONTINUITY TEST table.

POWER MIRROR SWITCH CONTINUITY TEST

Application

Terminal Number

Motor Switch

Right Mirror

Off

3-4-5-6

3-7

Down

4-7

Left

3-7; 5-7

Right

4-7

Left Mirror

Off

1-2-3-6

3-7

Down

1-7; 2-7

Left

1-7; 3-7

Right

2-7

Defogger Switch

⁽¹⁾ 6-8-9

Off

No Continuity

⁽¹⁾	- If continuity does not exist between terminals No. 6 and No. 8, replace bulb before condemning switch as defective.

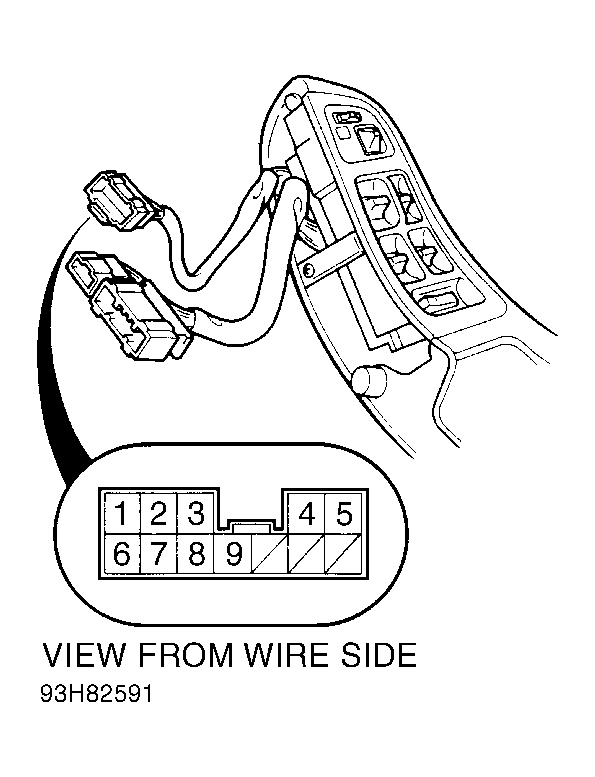

Fig 1: Switch Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
