Light-On Warning System

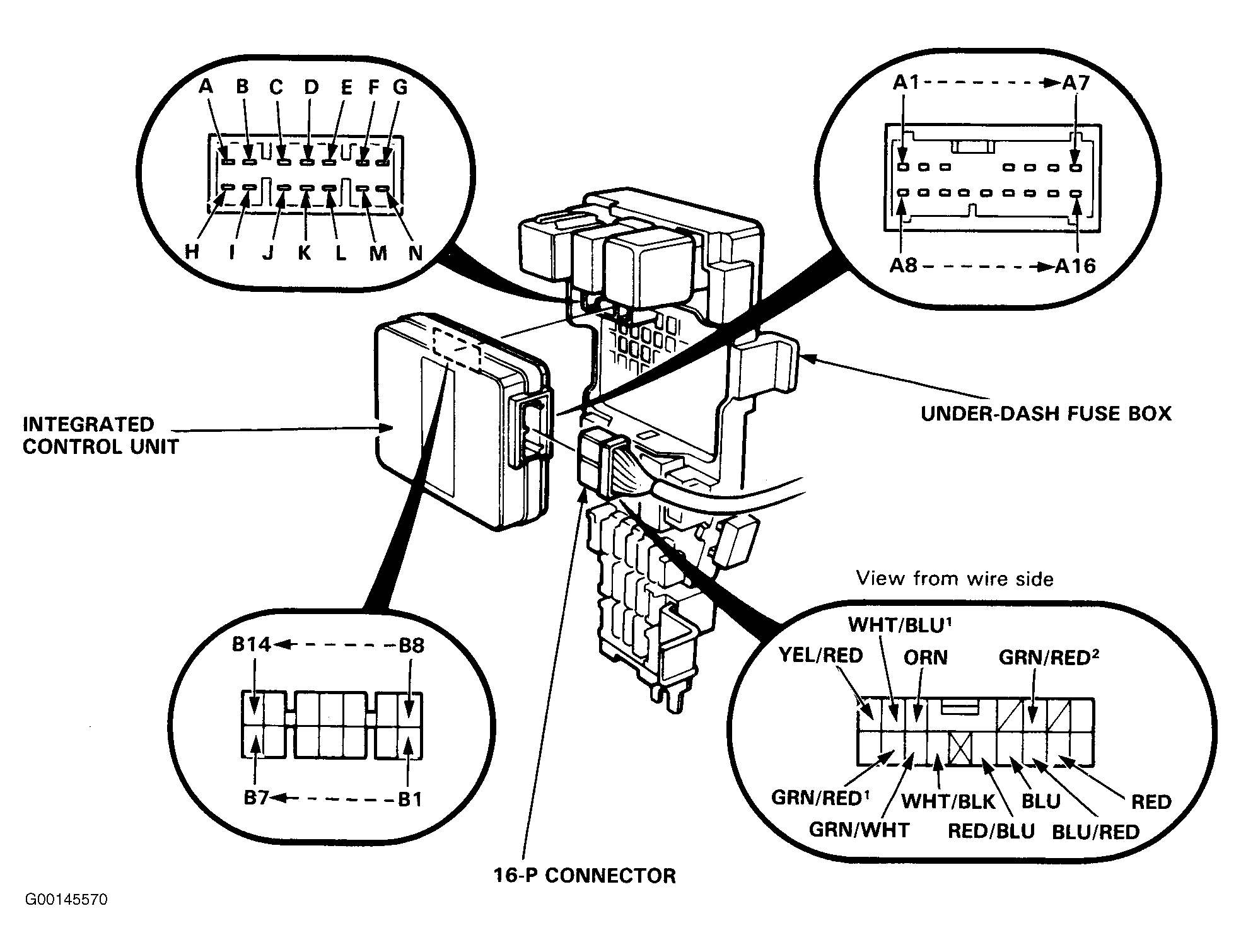

See Figure for connector terminal identification.

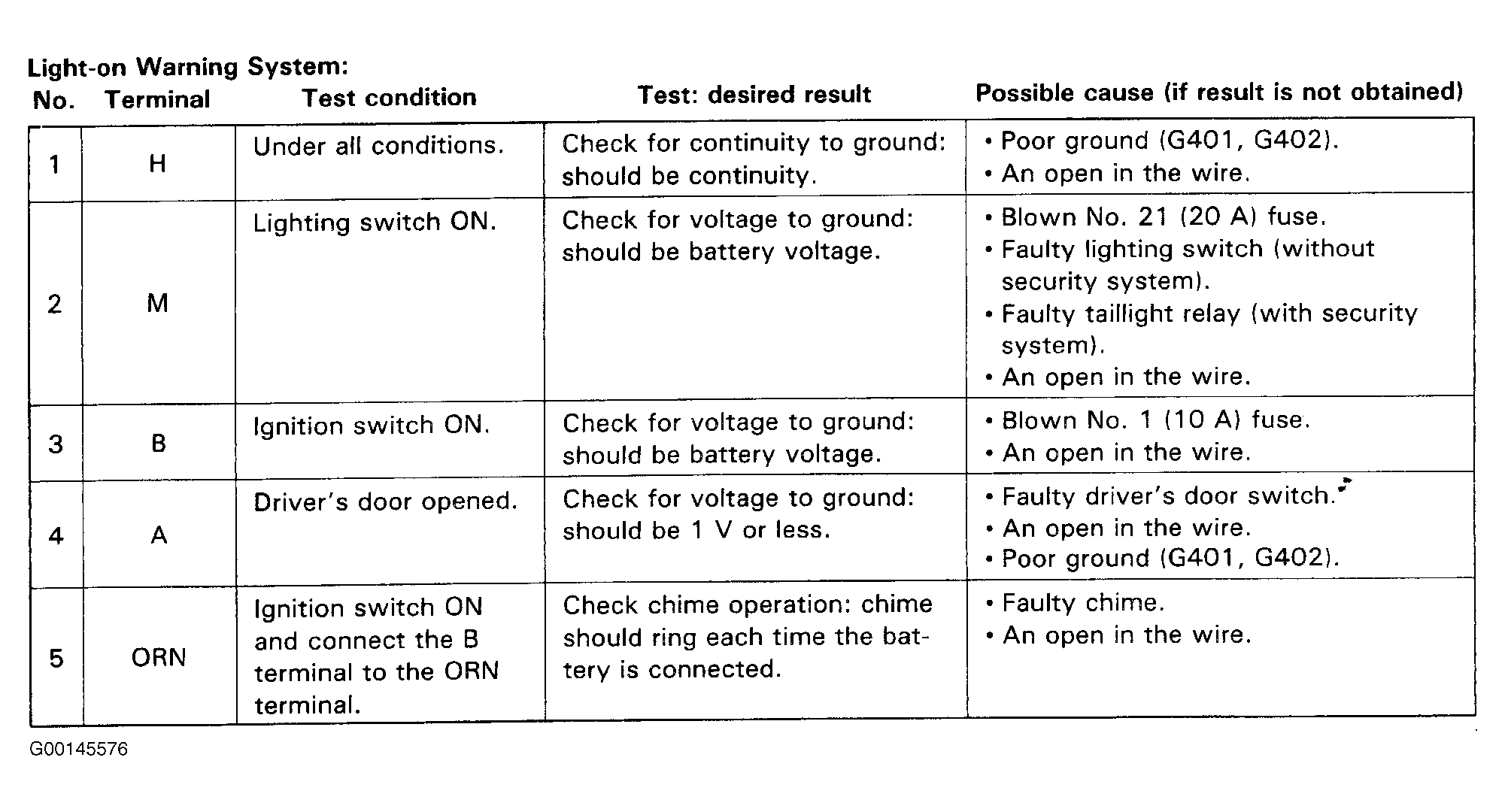

Fig 1: Lights-On Warning System Input Test
G00145576Courtesy of AMERICAN HONDA MOTOR CO., INC.
