Wiper System

See Figure for connector terminal identification.

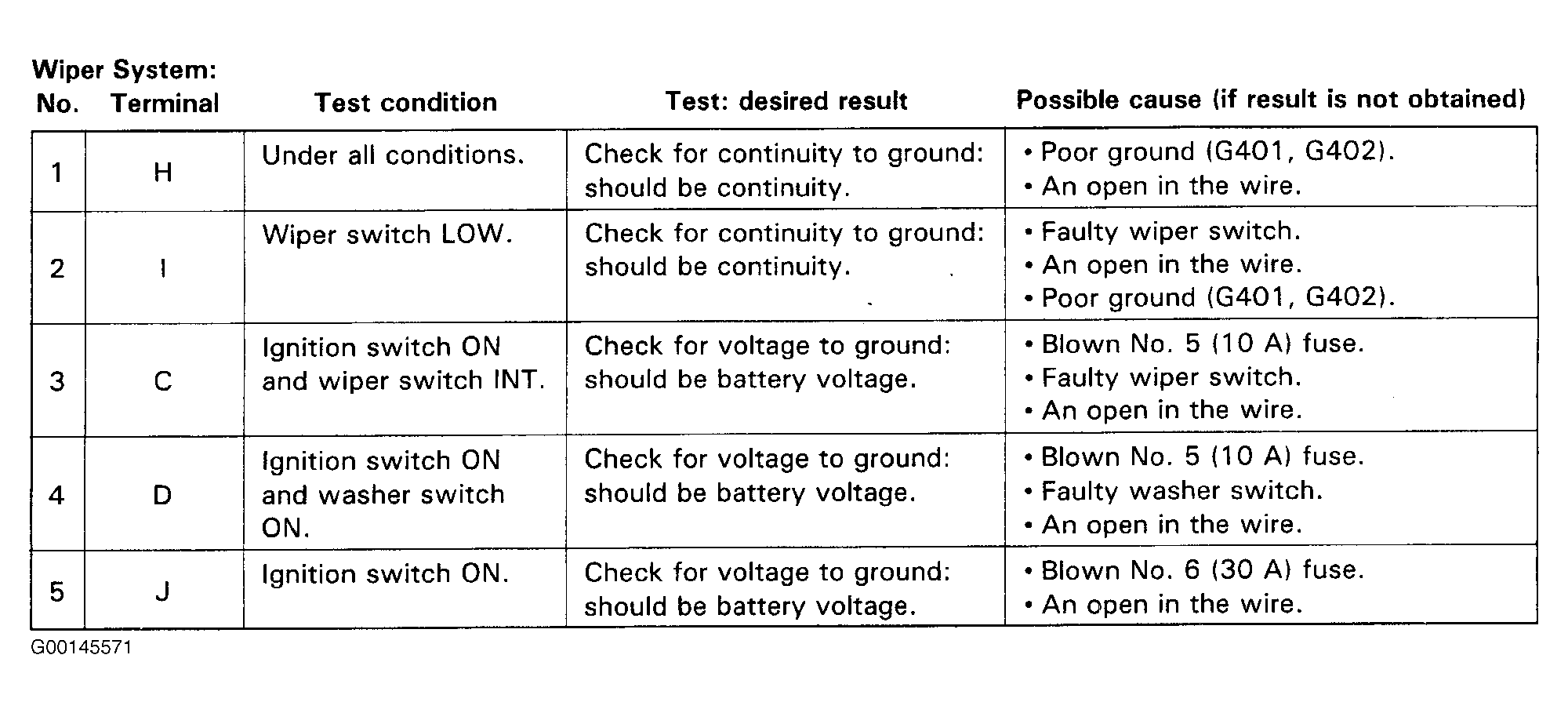

Fig 1: Wiper System Input Test
G00145571Courtesy of AMERICAN HONDA MOTOR CO., INC.
