Stator Test

  1. Check that there is continuity between each pair of leads.
  2. Check that there is no continuity between each lead and coil core. See Fig 1 .
  3. If coil fails continuity check, replace stator.

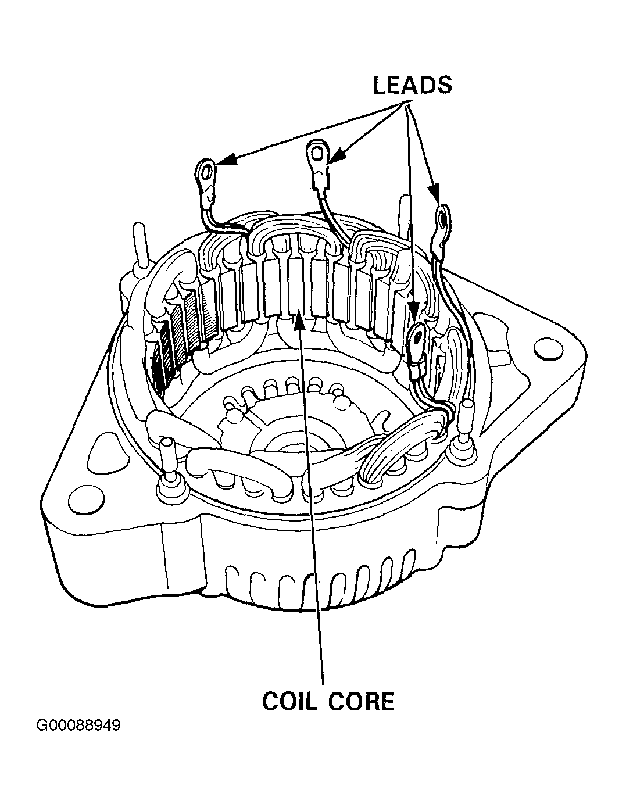

Fig 1: Identifying Leads & Stator Coil Core
G00088949Courtesy of AMERICAN HONDA MOTOR CO., INC.
