Under-Dash Fuse/Relay Box

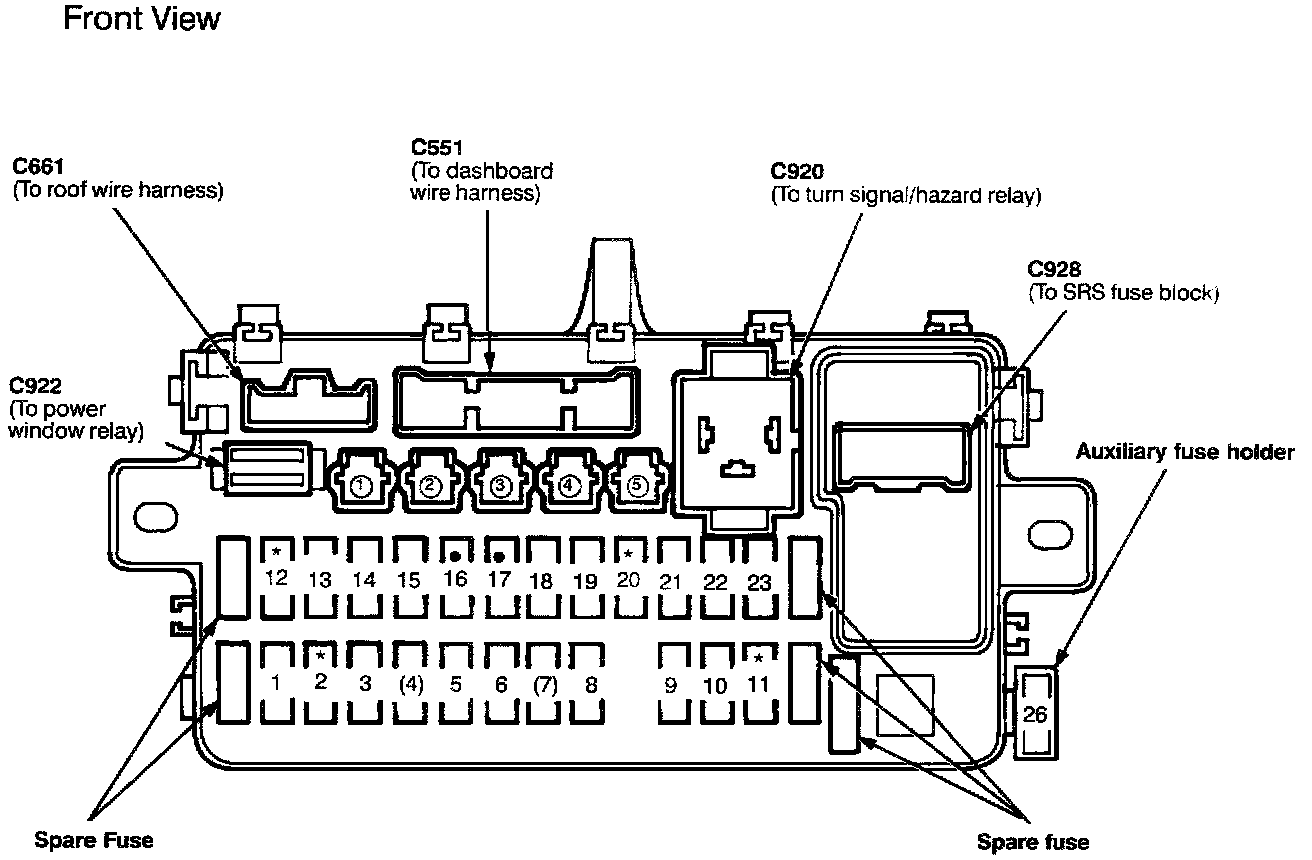

Under-dash Fuse/Relay Box (Part 1 Of 3):





Under-dash Fuse/Relay Box (Part 1 Of 3):

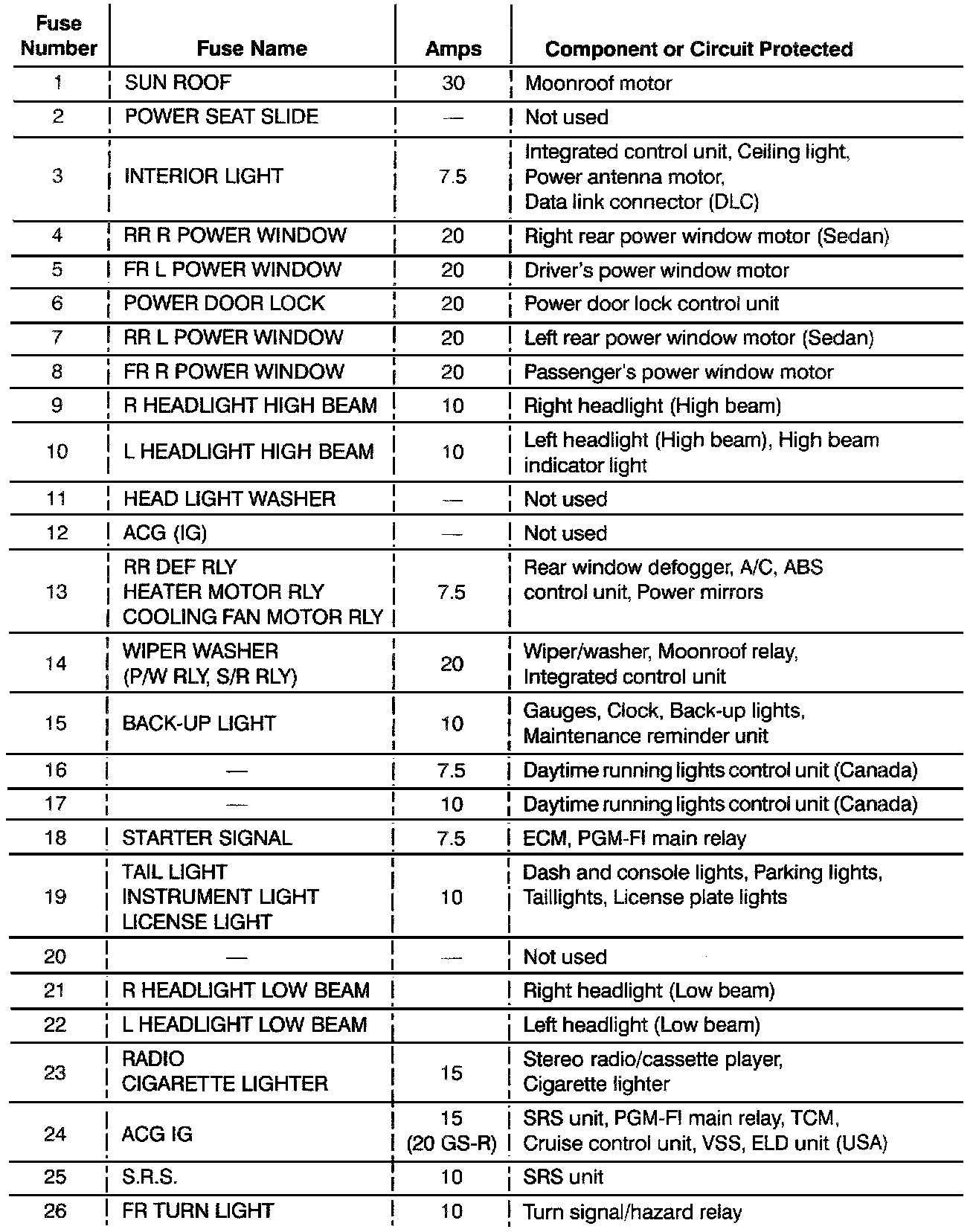

Under-dash Fuse/Relay Box (Part 2 Of 3):





Under-dash Fuse/Relay Box (Part 3 Of 3):
