A/T Technical Data

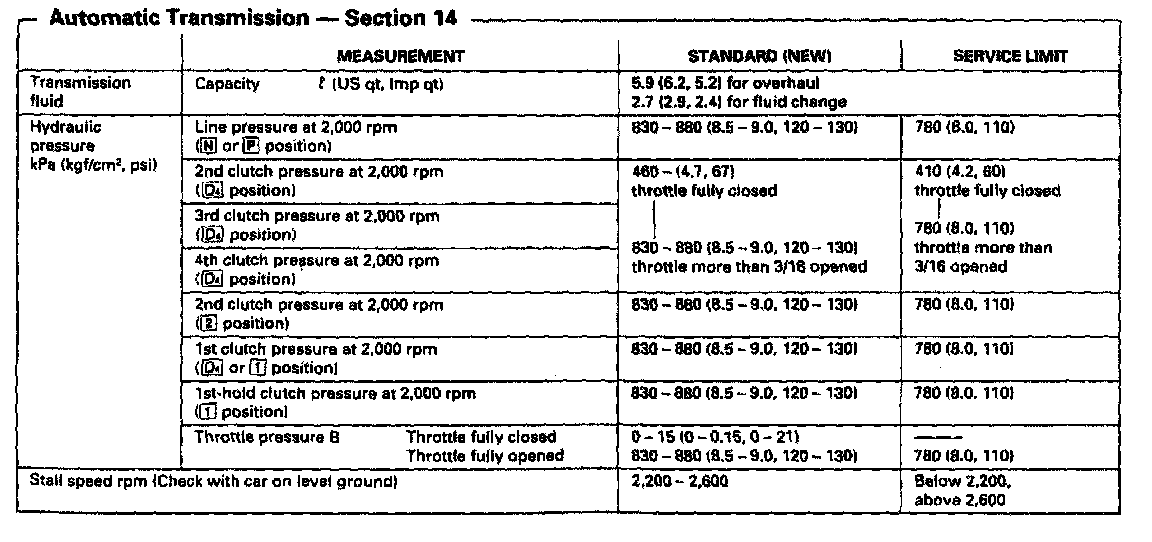

MP7A 4-spd A/T, Line Pressure / Stall Speed:

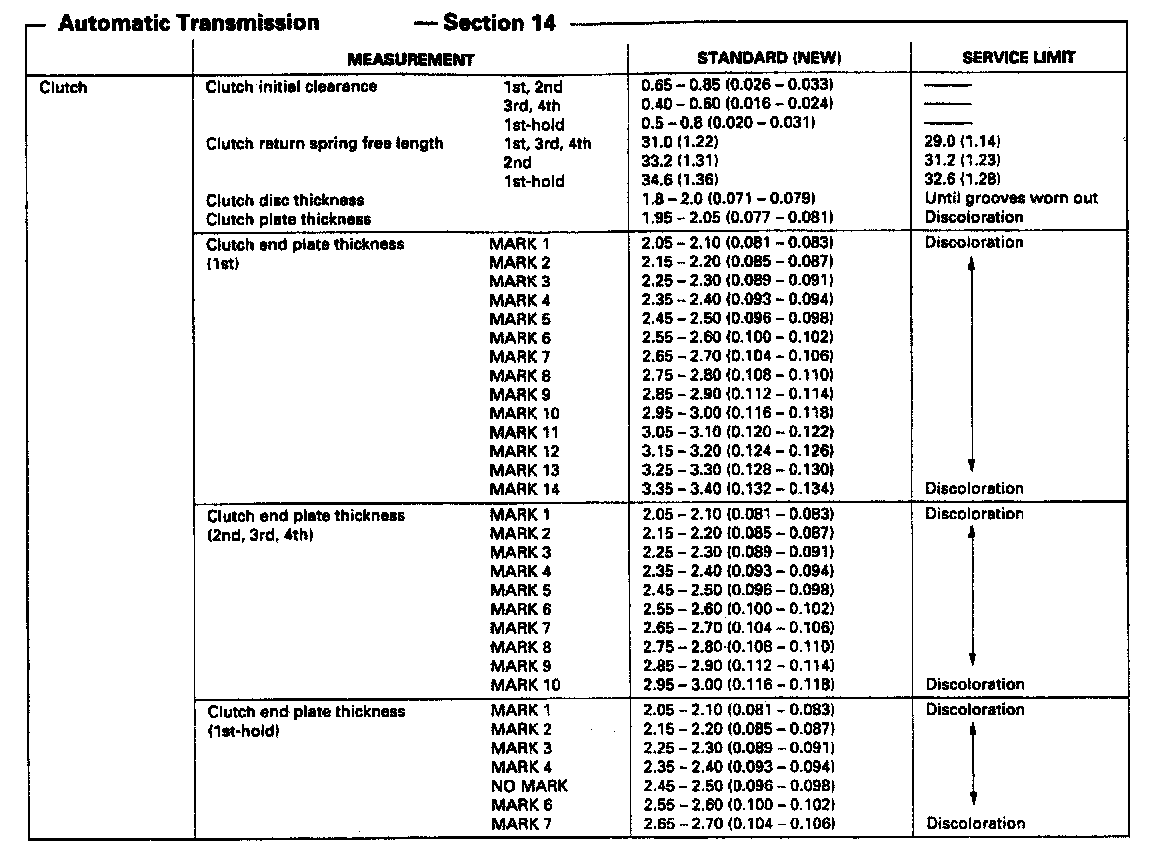

MP7A 4-spd A/T, Transmission Clutch Thickness:

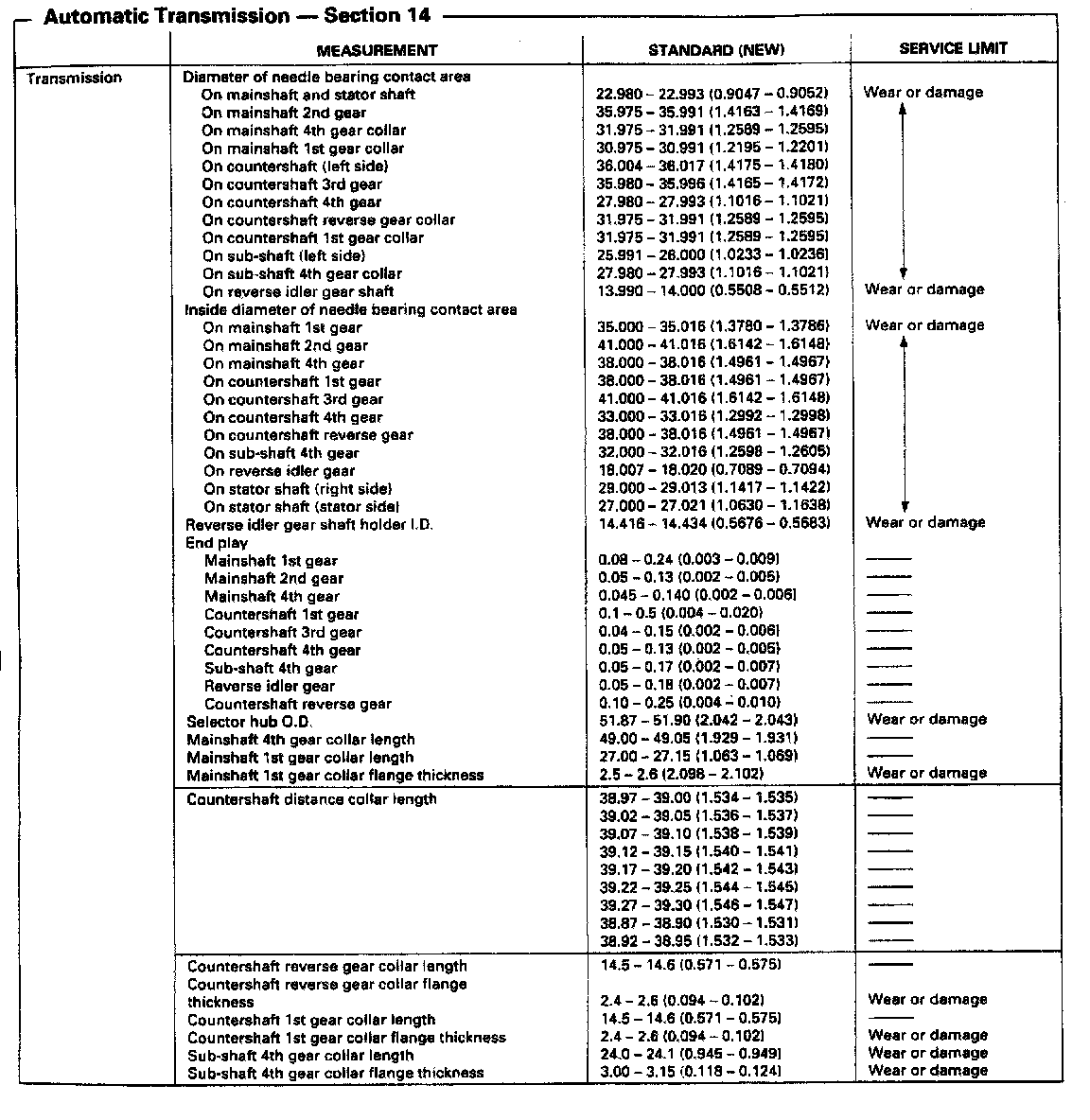

MP7A 4-spd A/T, Mainshaft/Countershaft Measurements:

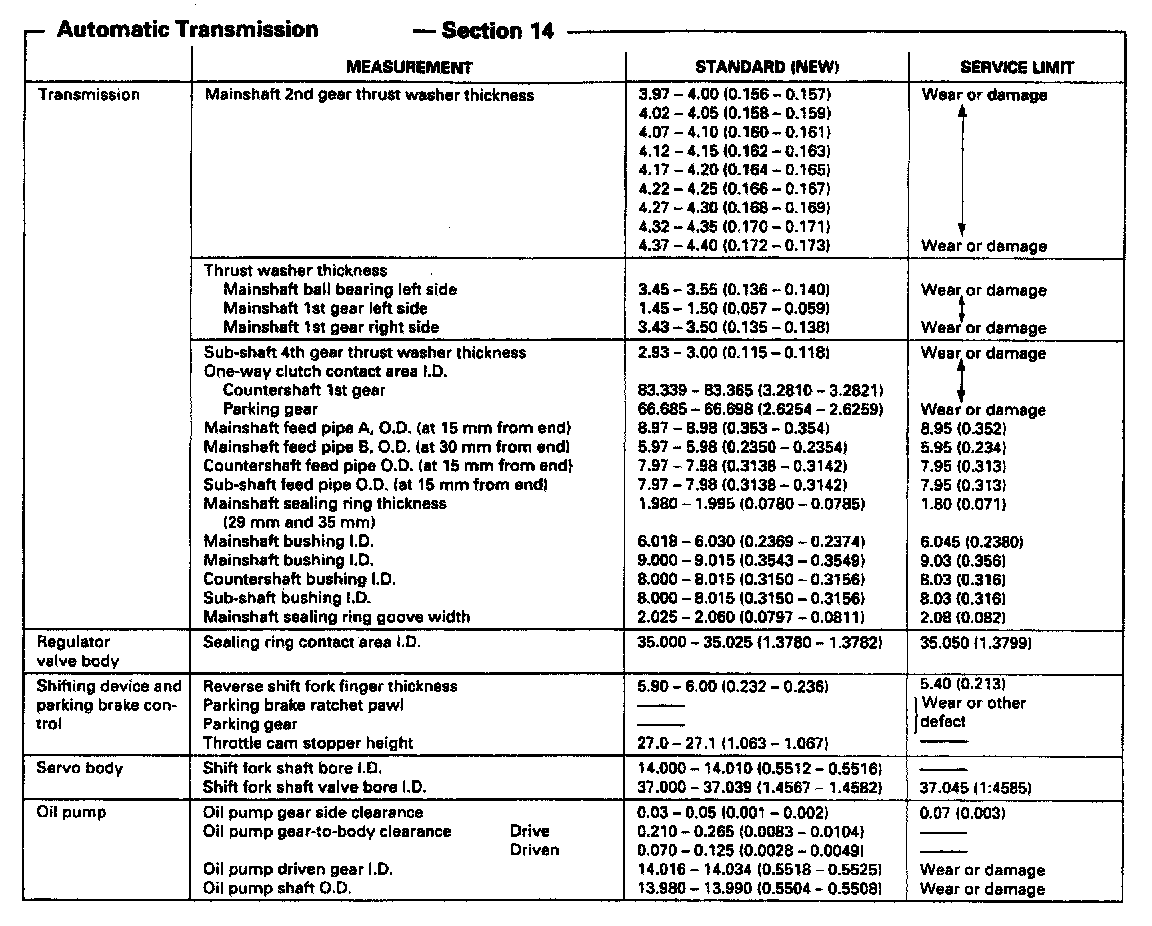

MP7A 4-spd A/T, Valve / Servo Body & Oil Pump:

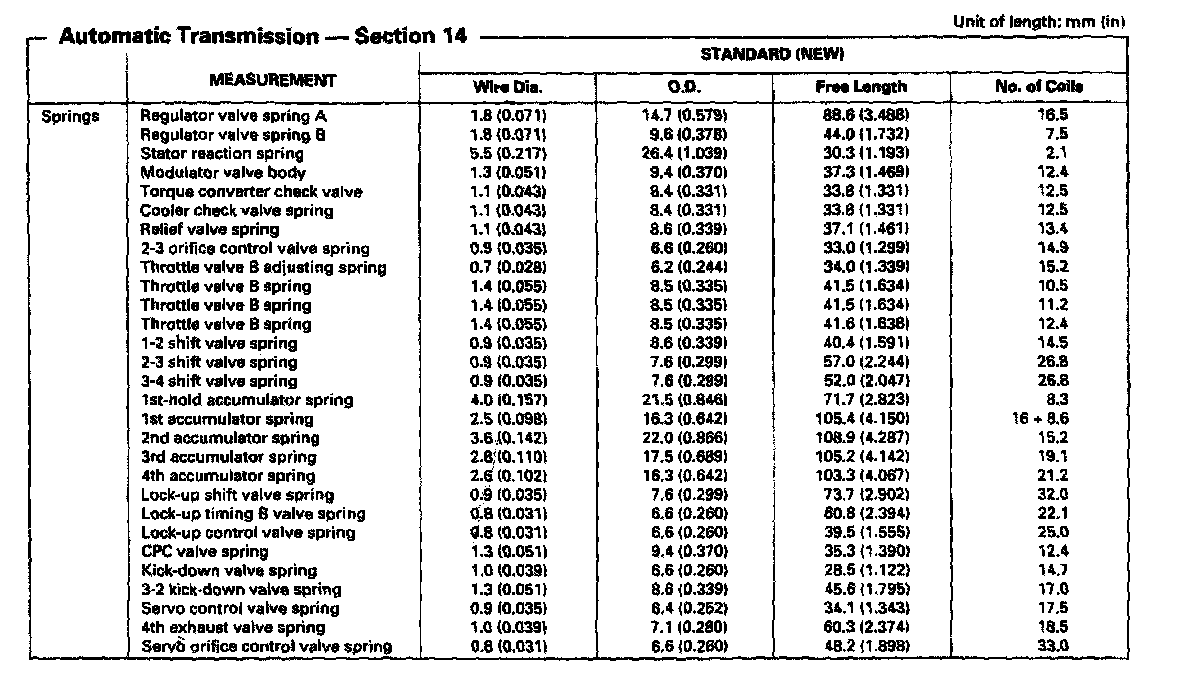

MP7A 4-spd A/T, Transmission Spring Measurements:

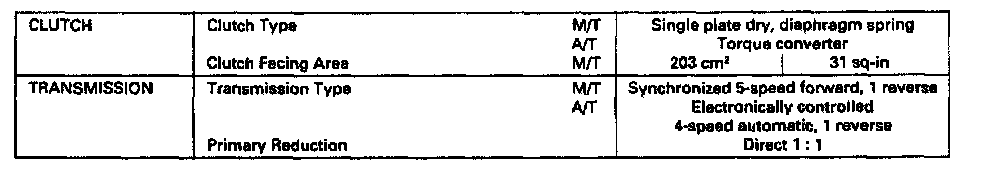

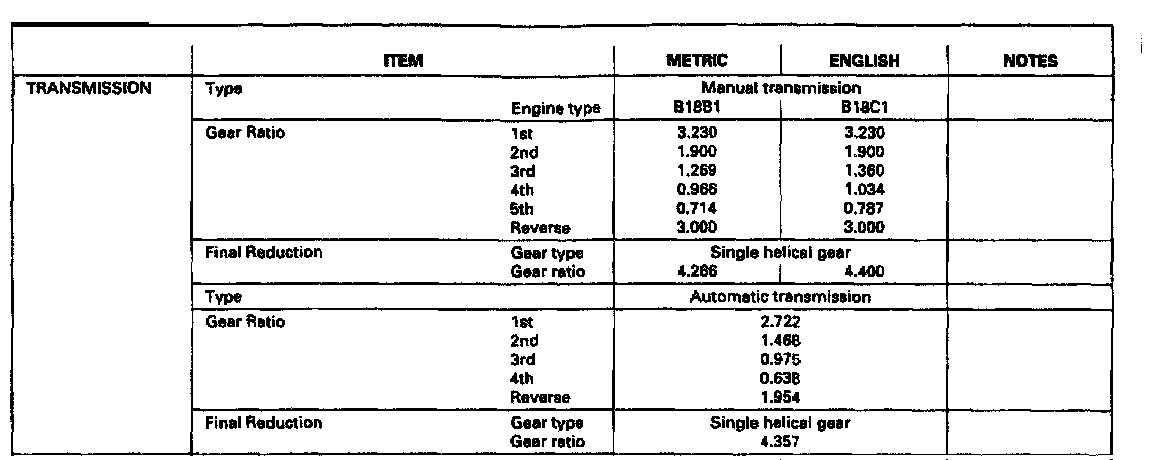

Manual/Automatic Transmission Gear Ratios:

Manual/Automatic Transmission Gear Ratios:
