Charging System: Testing and Inspection

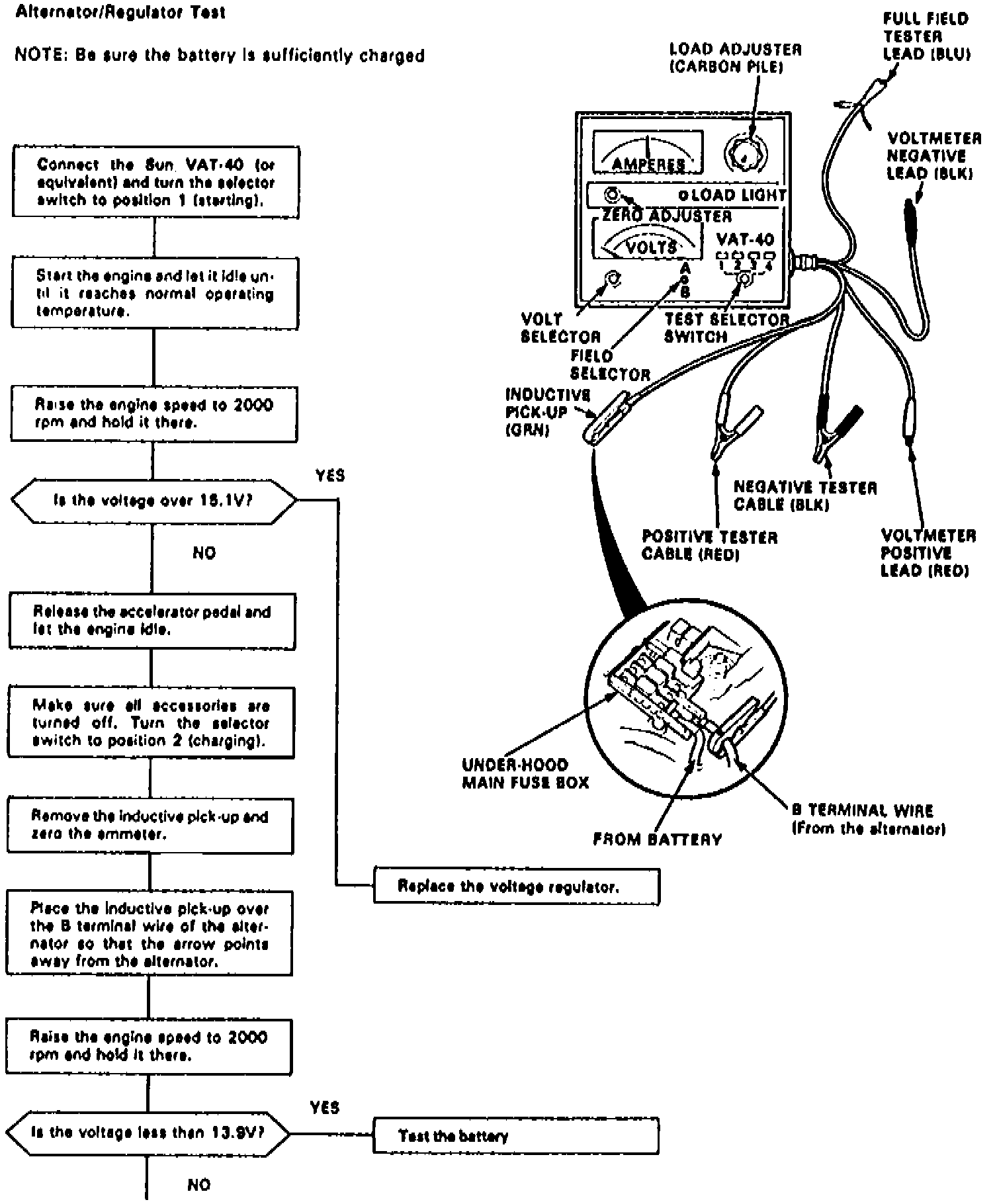

Fig. 1 Alternator/Regulator Test (Part 1 Of 2):

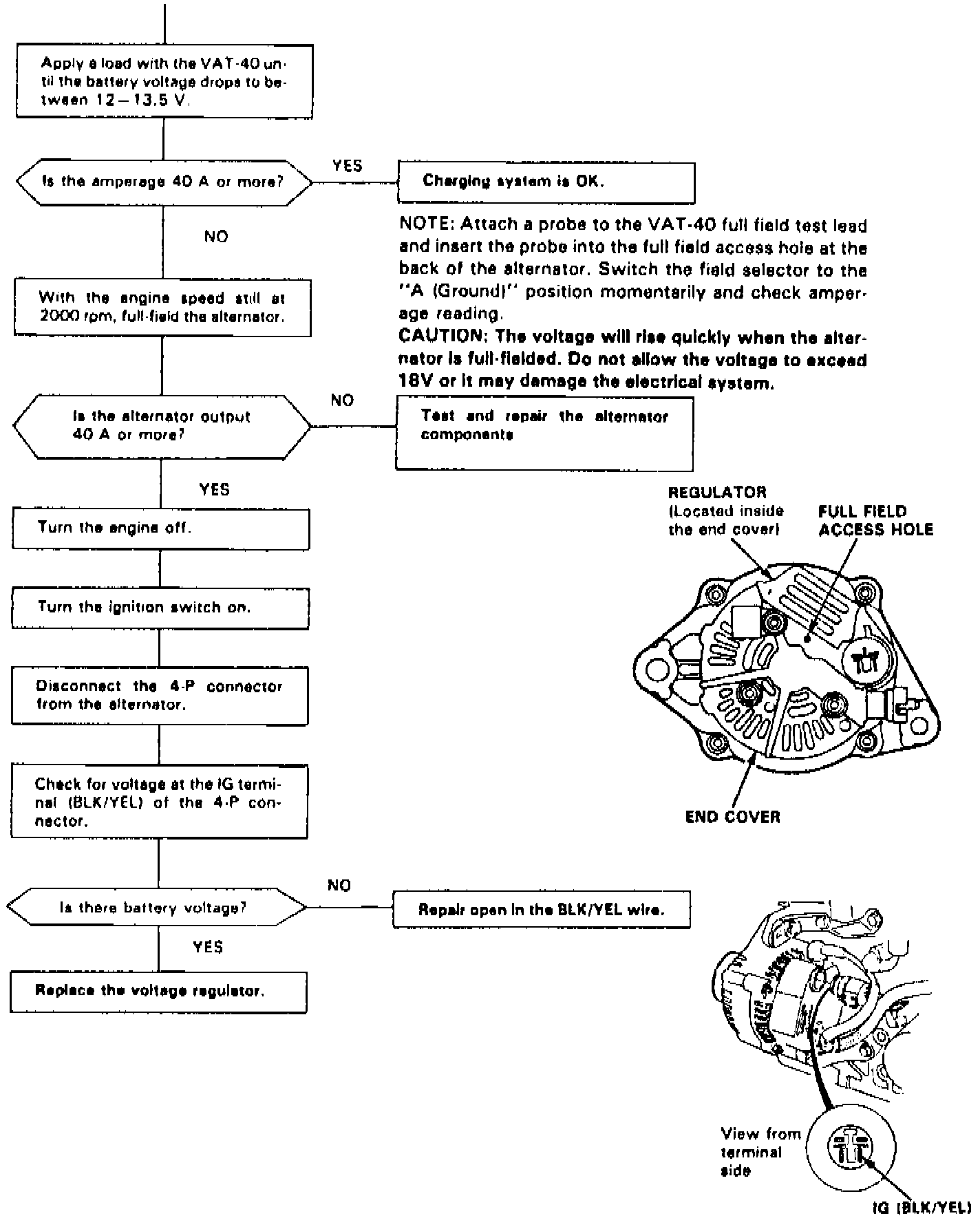

Fig. 1 Alternator/Regulator Test (Part 2 Of 2):





Refer to Fig. 1 when diagnosing the charging system.
