Washer Motor Test

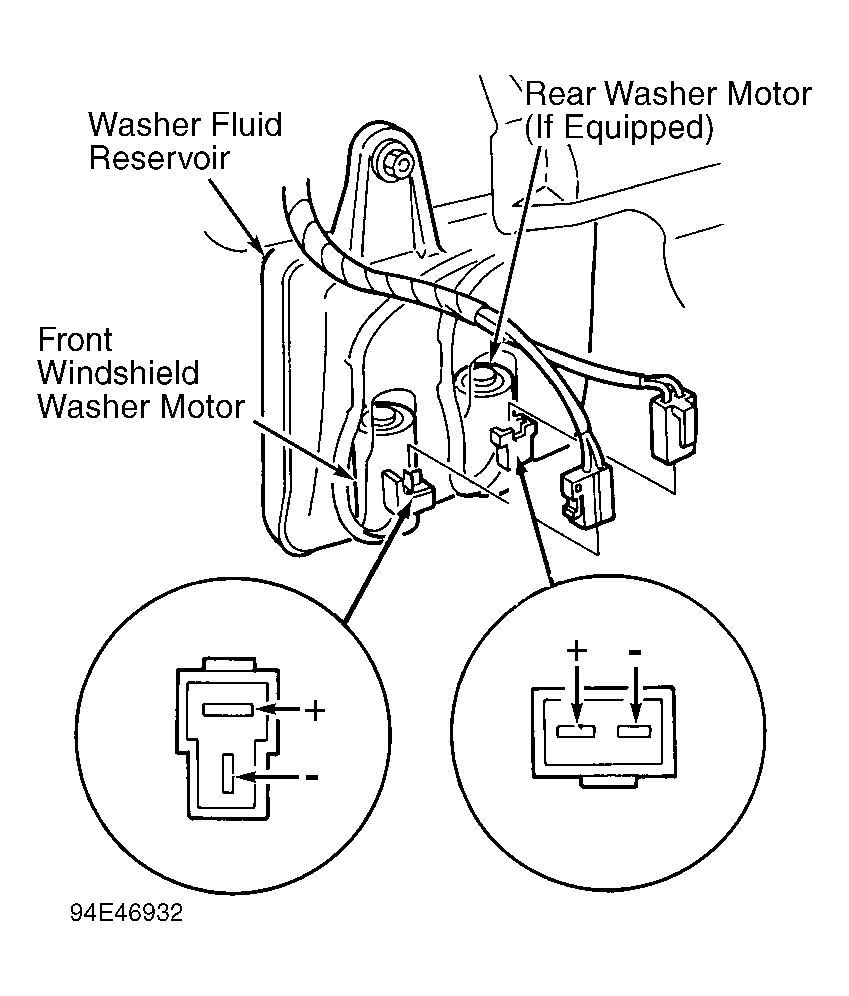

- Remove front bumper. Unplug 2-pin connector at motor. Connect battery voltage across motor terminals. See Fig 1 .
- Washer pump should run smoothly. Fluid should spray from outlet. If pump does not operate as specified, check for disconnected or blocked fluid lines. If fluid lines are okay, check for clogged washer pump outlet. If no faults are found, replace washer motor.
