Fuse Panel Identification - 1994-95 Models: Notes

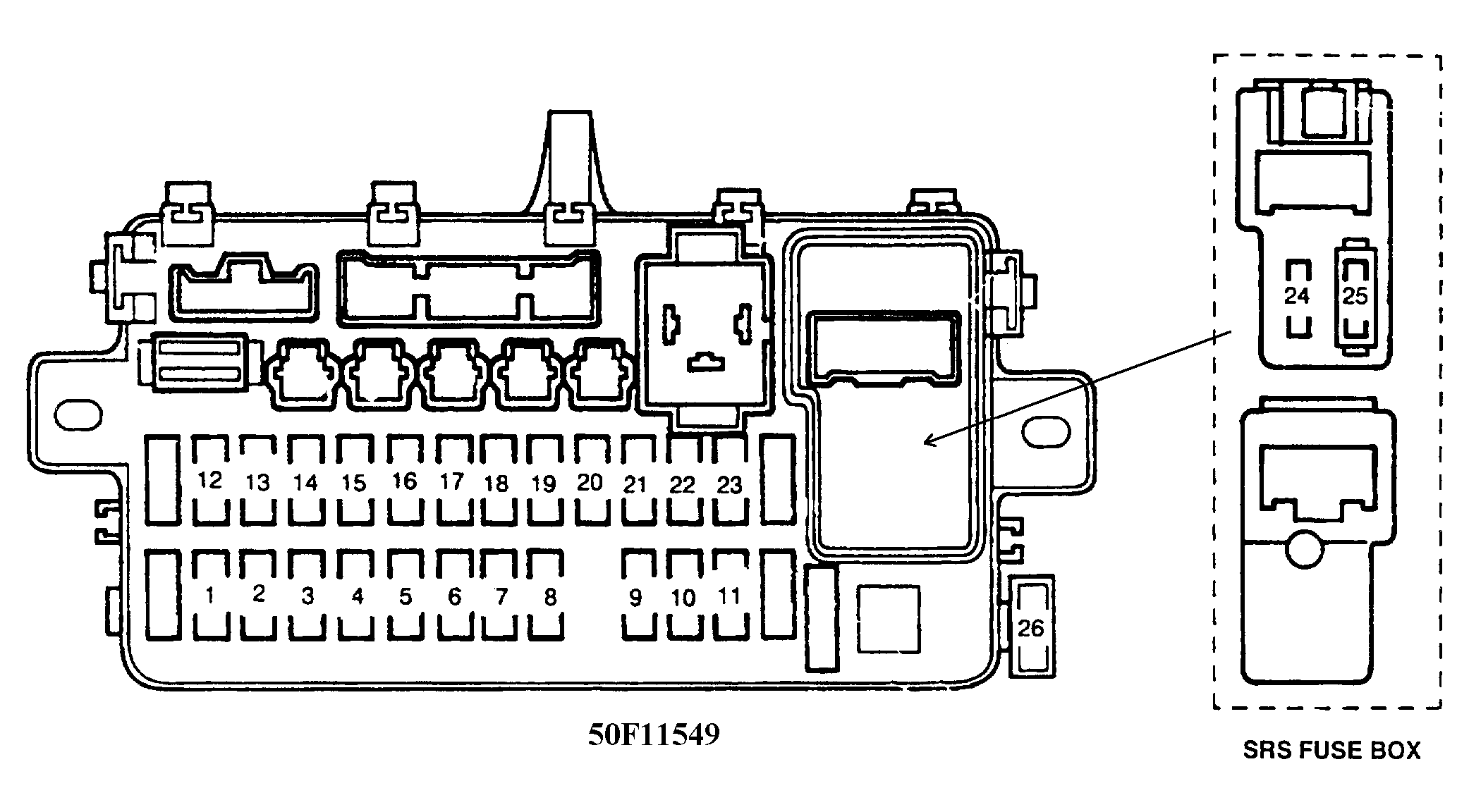

Fig 1: Interior Fuse Panel Identification (1994-95 Models)
G50F11549Courtesy of AMERICAN HONDA MOTOR CO., INC.
