Radiator Fan Control Module

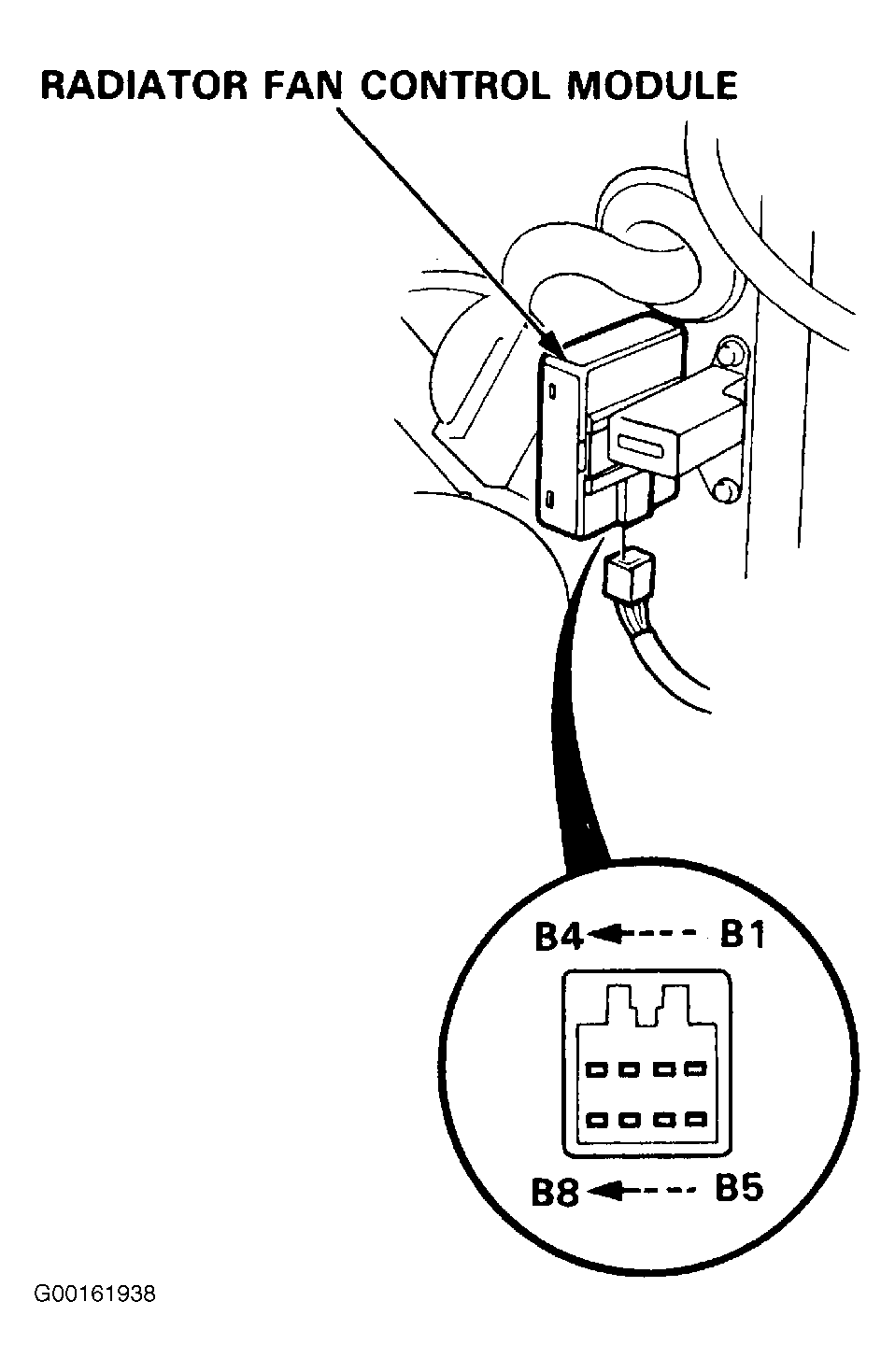

For locating radiator fan control module and terminal identification see Fig 1. To test terminals see RADIATOR FAN CONTROL MODULE TERMINALS TEST .
RADIATOR FAN CONTROL MODULE TERMINALS TEST
| Terminal | Wire | Connects To |
|---|---|---|
| B1 | BLK | Ground (G301, G302, G303) |
| B2 | BLU/YEL | Fan Control Unit |
| B3 | BLU/RED | Condenser Fan Relay (+) |
| B4 | YEL/BLU | Power Supply |
| B5 | GRN | Condenser Fan Relay (-) |
| B6 | BLK/RED | Power Supply (For Condenser Fan Relay With Ignition Switch "off") |
| B7 | - | Not Used |
| B8 | ORN | Engine Oil Temperature Sensor |
