Intake Air Temperature Sensor

The IAT Sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases. See Fig 1 .

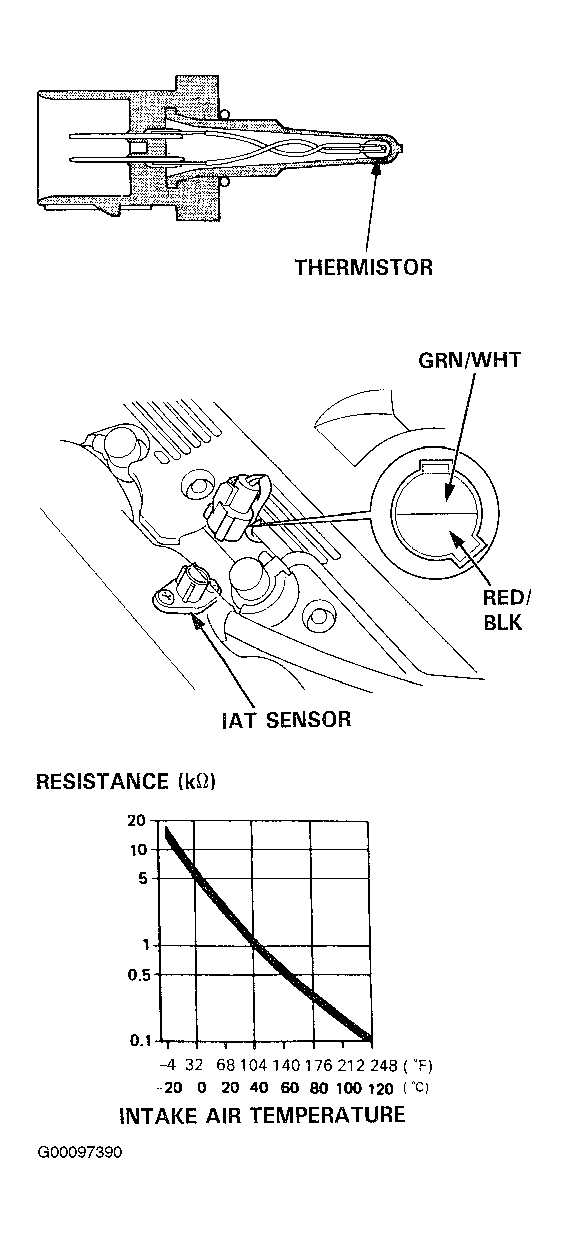

Fig 1: Cutaway View Of Intake Air Temperature Sensor & Identifying Resistance Chart
G00097390Courtesy of AMERICAN HONDA MOTOR CO., INC.
