Damper Control Mode

According to car speed data, torque value data and steering rotational speed data, mode is changed over to damper control mode to improve convergence property of steering.

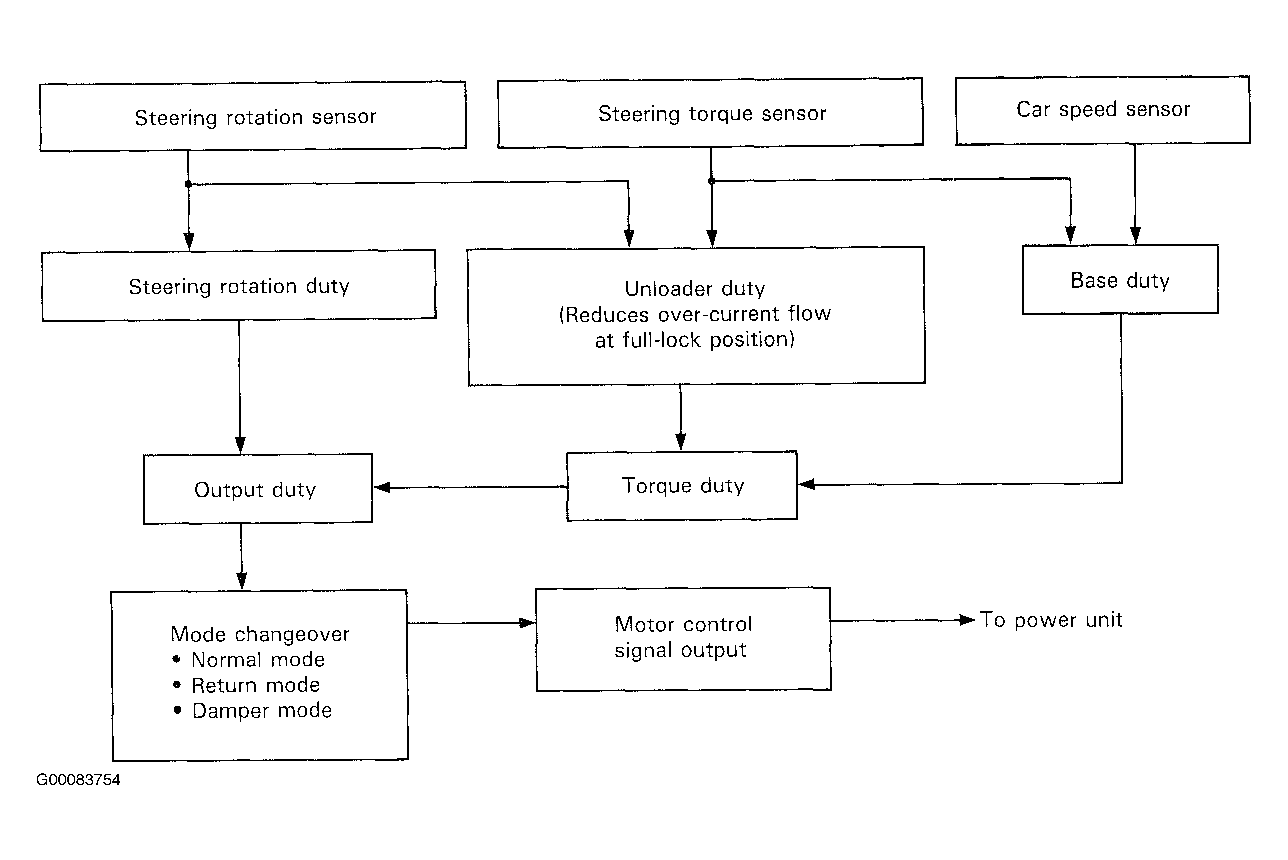

Fig 1: Control Unit Flow Chart
G00083754Courtesy of AMERICAN HONDA MOTOR CO., INC.
