Evaporative Emission Controls: Notes

For a illustration of the Evaporative Emission Controls (EVAP) see Fig 1 .

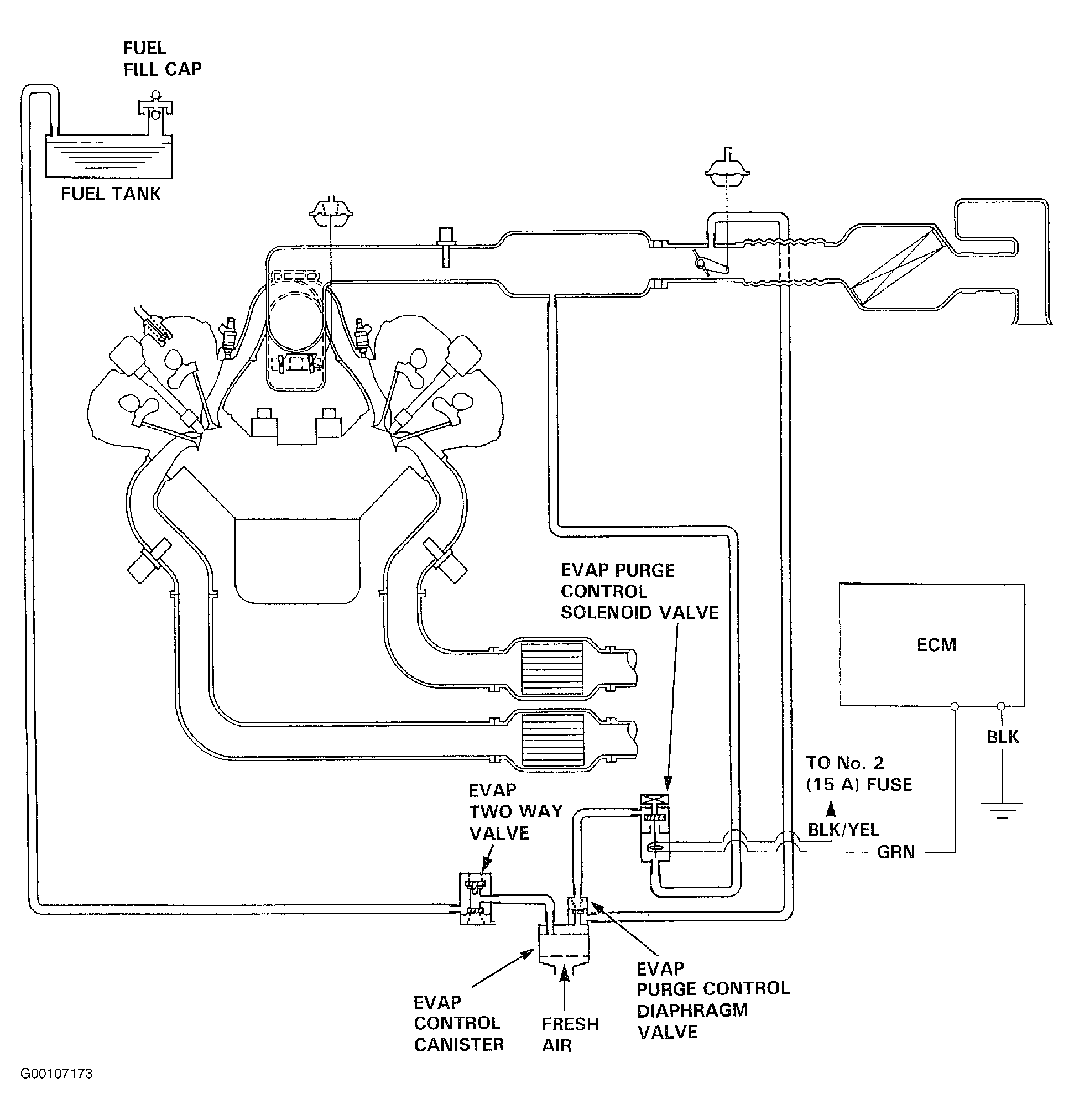

Fig 1: Identifying Components Of The EVAP Controls

Courtesy of AMERICAN HONDA MOTOR CO., INC.
