Rear Wheel Alignment Adjusting Procedure: Notes

1. Check tire pressure on both sides.
2. Check the ride height on both sides.
3. Adjust both camber and toe of the left side.
4. Adjust both camber and toe of the right side.

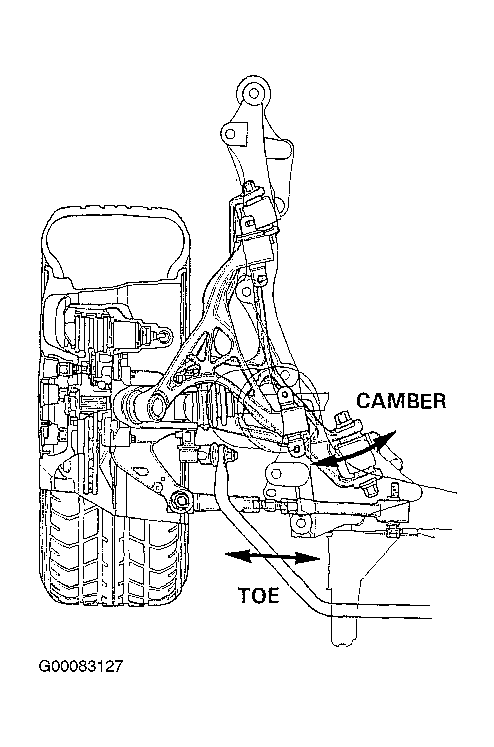

Fig 1: Rear Camber & Toe Adjusting Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NSX four wheel alignment requires the use of equipment designed specifically for four wheel independent suspensions and capable of immediate feedback.

1. Drive the vehicle on the alignment rack.
2. Check the tire pressure and ride height. See TIRE PRESSURE & SIZE  table.
3. Center the steering wheel.
