Power Window Key Off Timer System

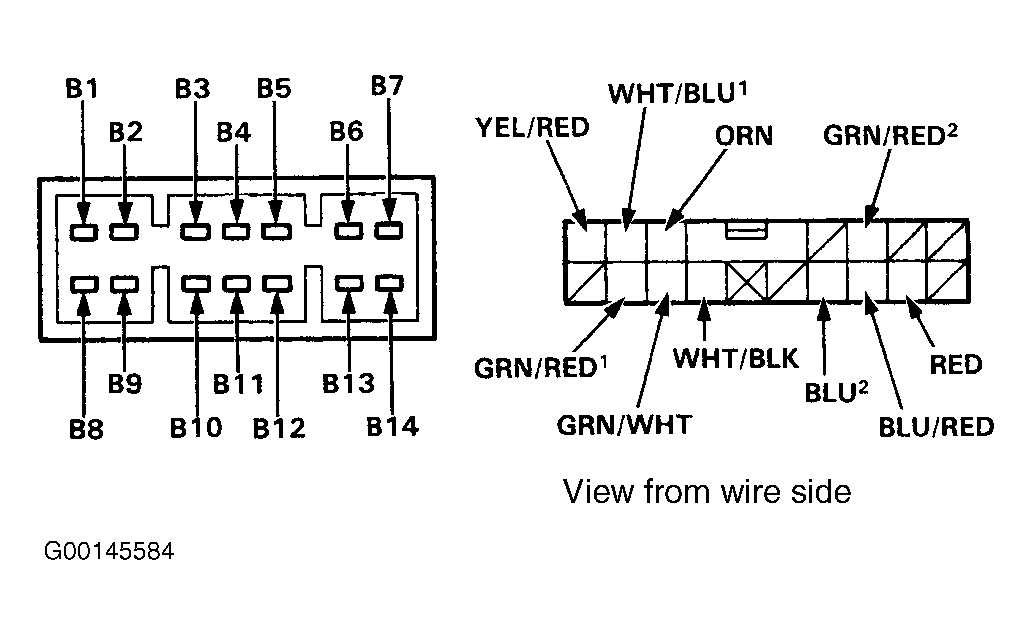

See Figure for connector identification.

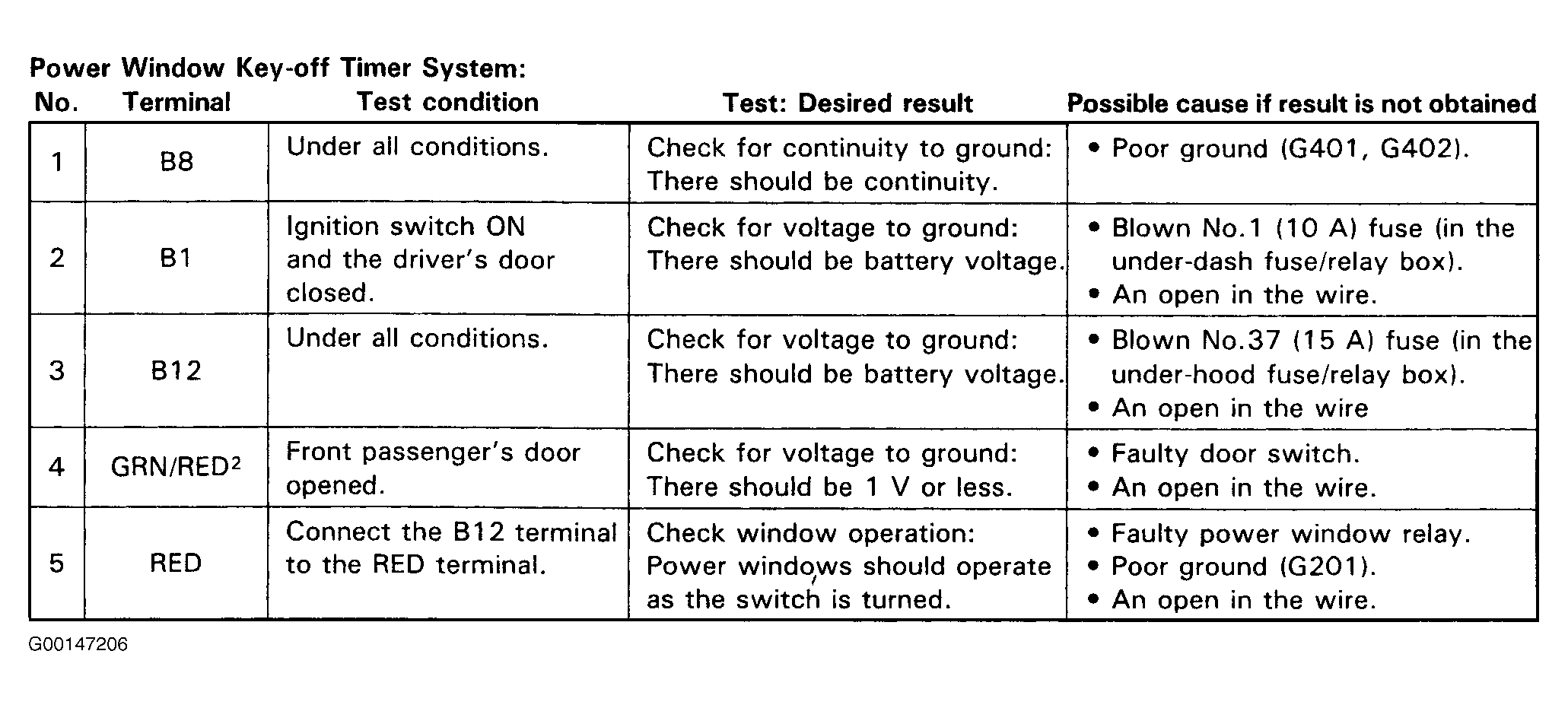

Fig 1: Power Window Key Off Timer System Input Test
G00147206Courtesy of AMERICAN HONDA MOTOR CO., INC.
