Control Unit Input Test
- Turn ignition off. Cruise control unit is located under instrument panel above brake pedal bracket. Unplug cruise control unit 13-pin connector.

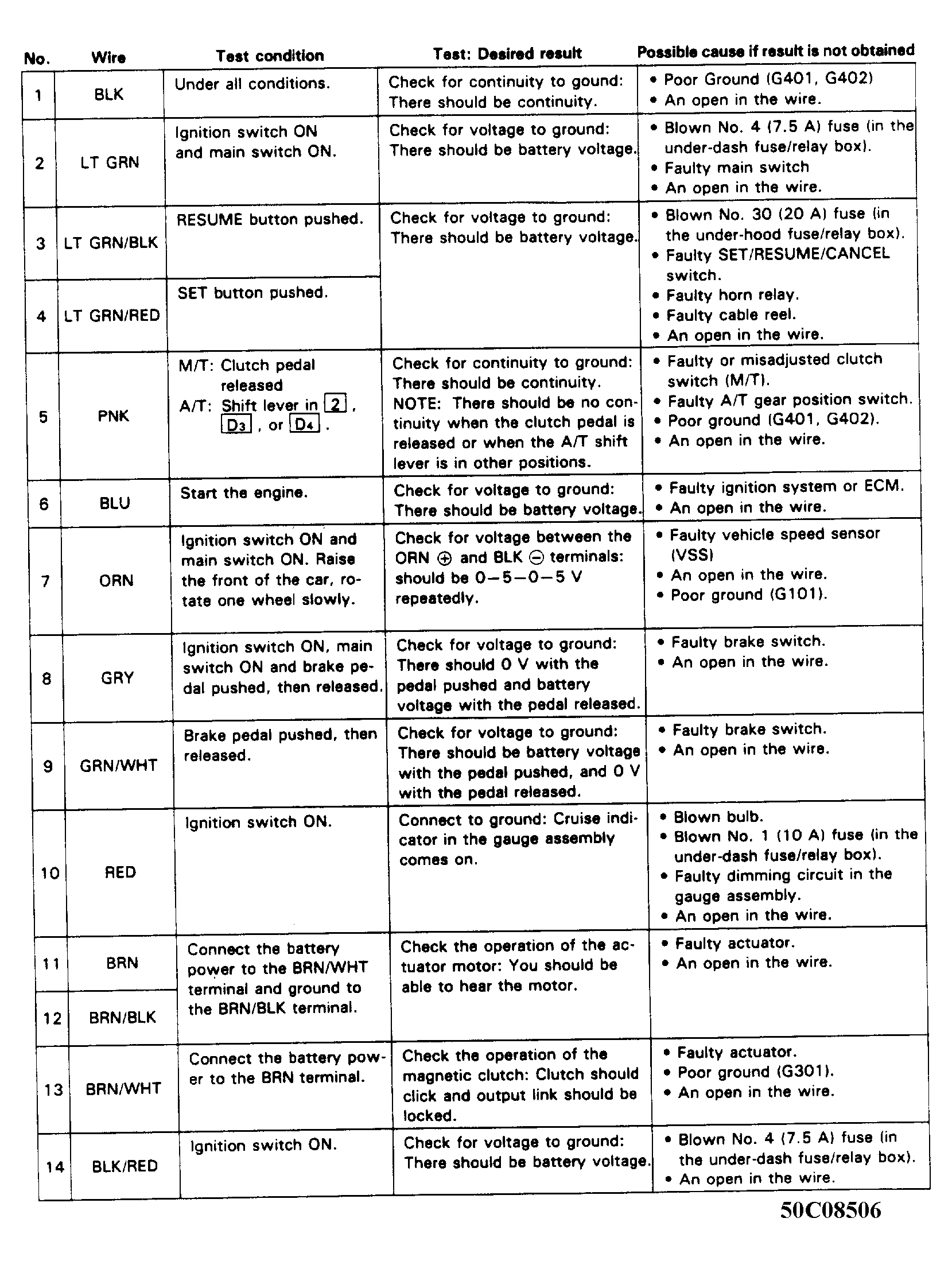

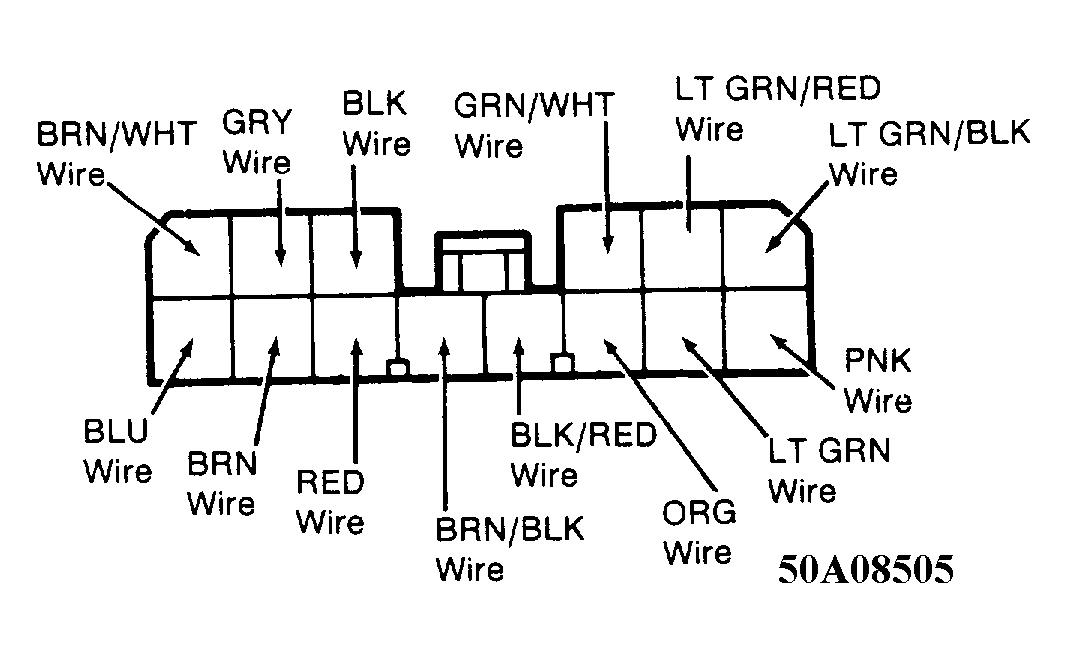

- Using a DVOM, perform cruise control unit input tests in Fig 1
and Fig 2
. If all input test results are okay, inspect cruise control unit connector for damage and proper fit. If connector is okay but cruise control still malfunctions, replace cruise control unit.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Numbers 1 through 14 refer to test numbers, not terminal numbers.
- Ground G301 is located in left front corner of engine compartment.
- Ground G401 is located behind left kick panel.
- Ground G402 is located behind right kick panel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
