Manifold Pressure/Vacuum Sensor: Locations

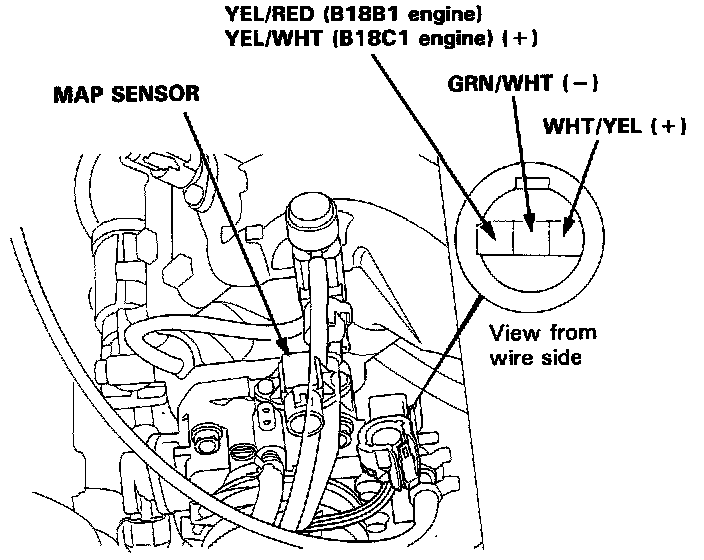

MAP Sensor Location And Wiring Colors:






The Manifold Absolute Pressure Sensor is located on top of the Throttle Body.
