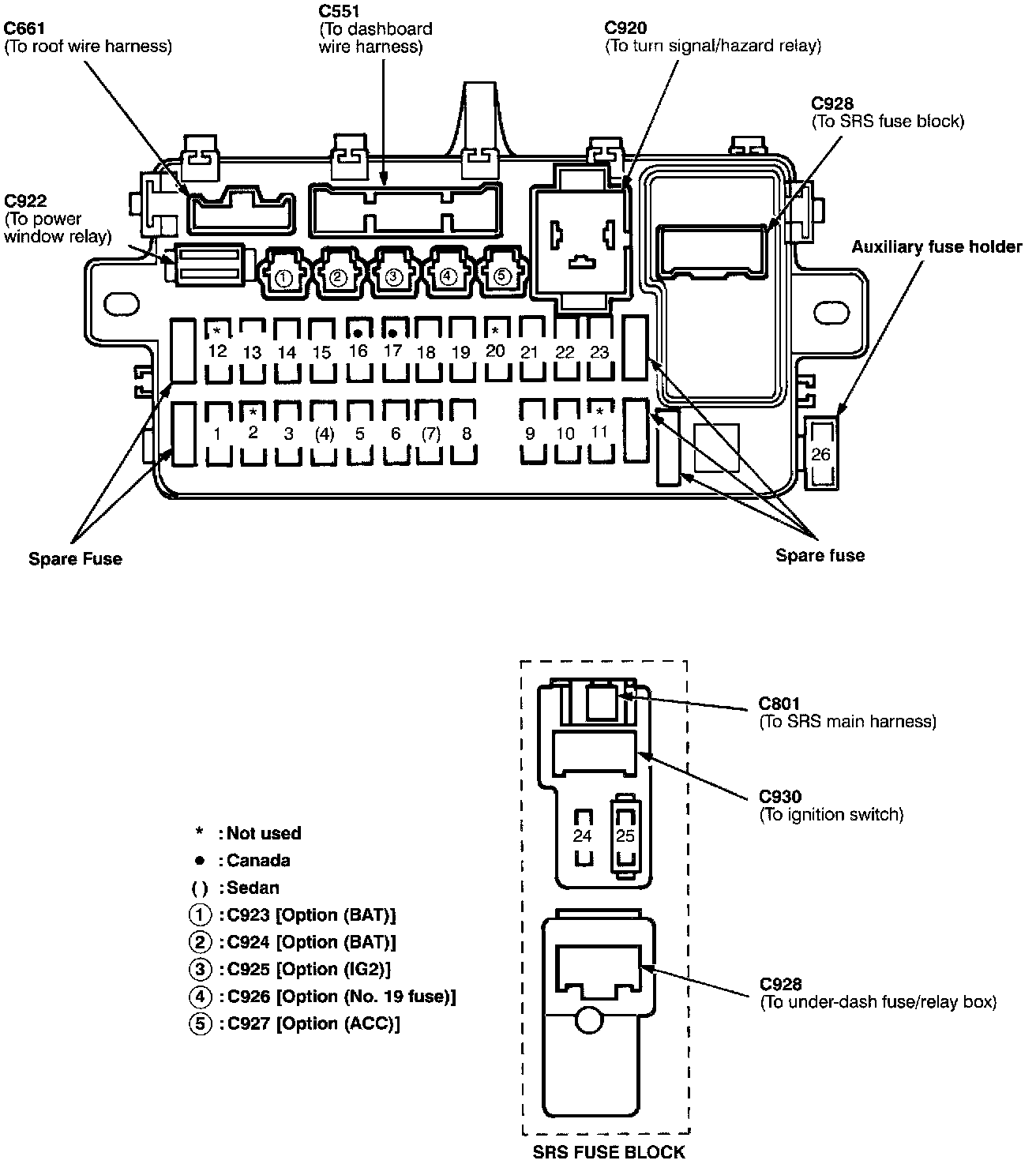

Under-Dash Fuse/Relay Box

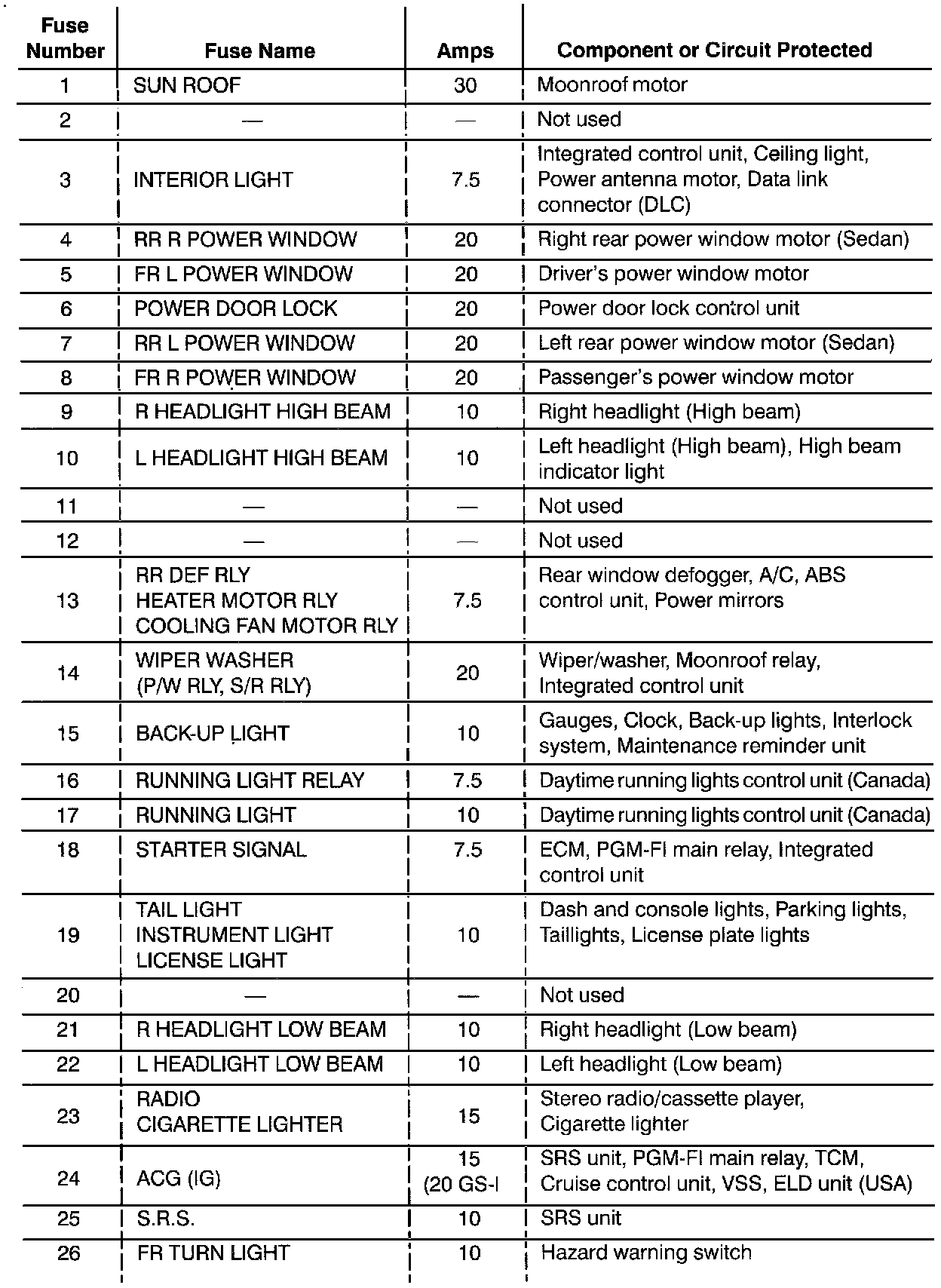

Fuse/Relay Information-Under-dash Fuse/Relay Box:




Fuse/Relay Information-Under-dash Fuse/Relay Box:




Fuse/Relay Information-Under-dash Fuse/Relay Box:
