Power Window Master Switch Input Test

Turn ignition off. Remove driver's door panel. Disconnect power window master switch connector(s). Inspect connector(s) and terminals for damage, corrosion and proper fit. Repair as necessary and recheck system operation. If connector(s) are okay, using a DVOM, perform appropriate power window master switch input test. SeeFig 1 and Fig 2 . If all input tests are okay and power windows still do not operate properly, replace power window master switch.

Fig 1: Power Window Master Switch Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

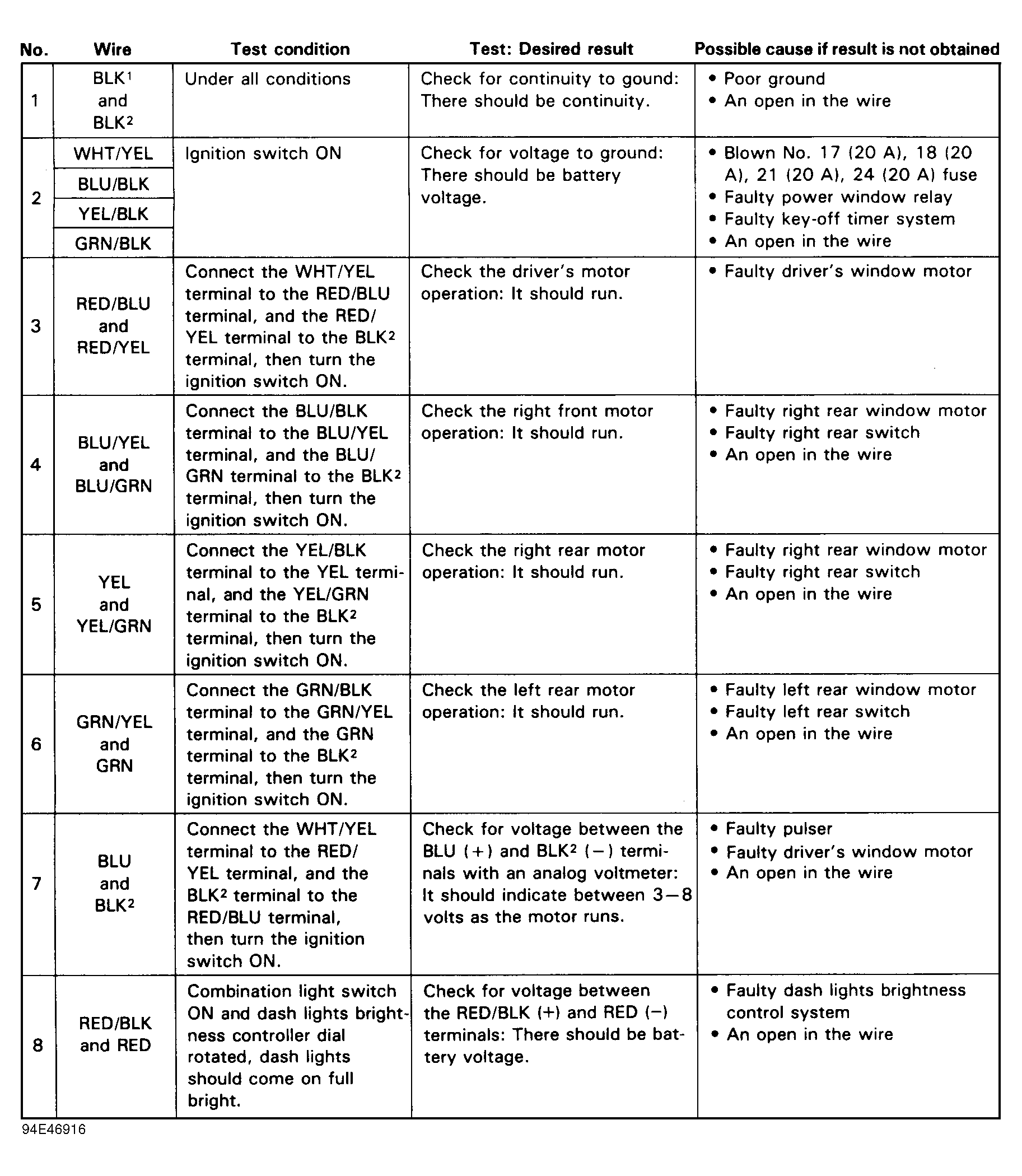

Fig 2: Power Window Master Switch Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
