Flow Charts

NOTE: Different wires with the same color have been given a suffix number. For example, Yellow/Green(1 ) and Yellow/Green(2 ) are not the same wires. Refer to Fig. Figure for all DPMS connector views not included in SEAT MOTOR/SENSOR CONNECTOR TERMINALS, Figs. Figure -75.

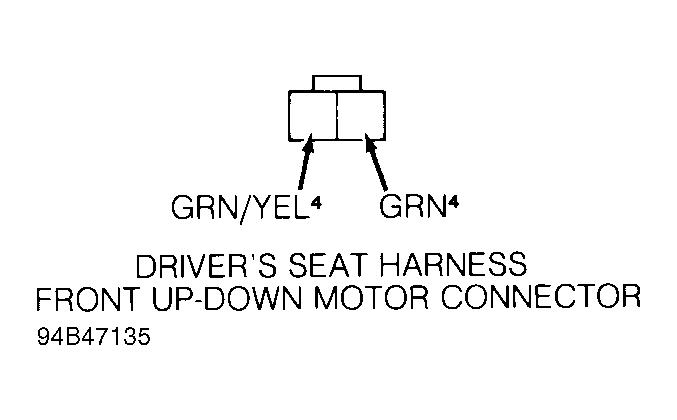

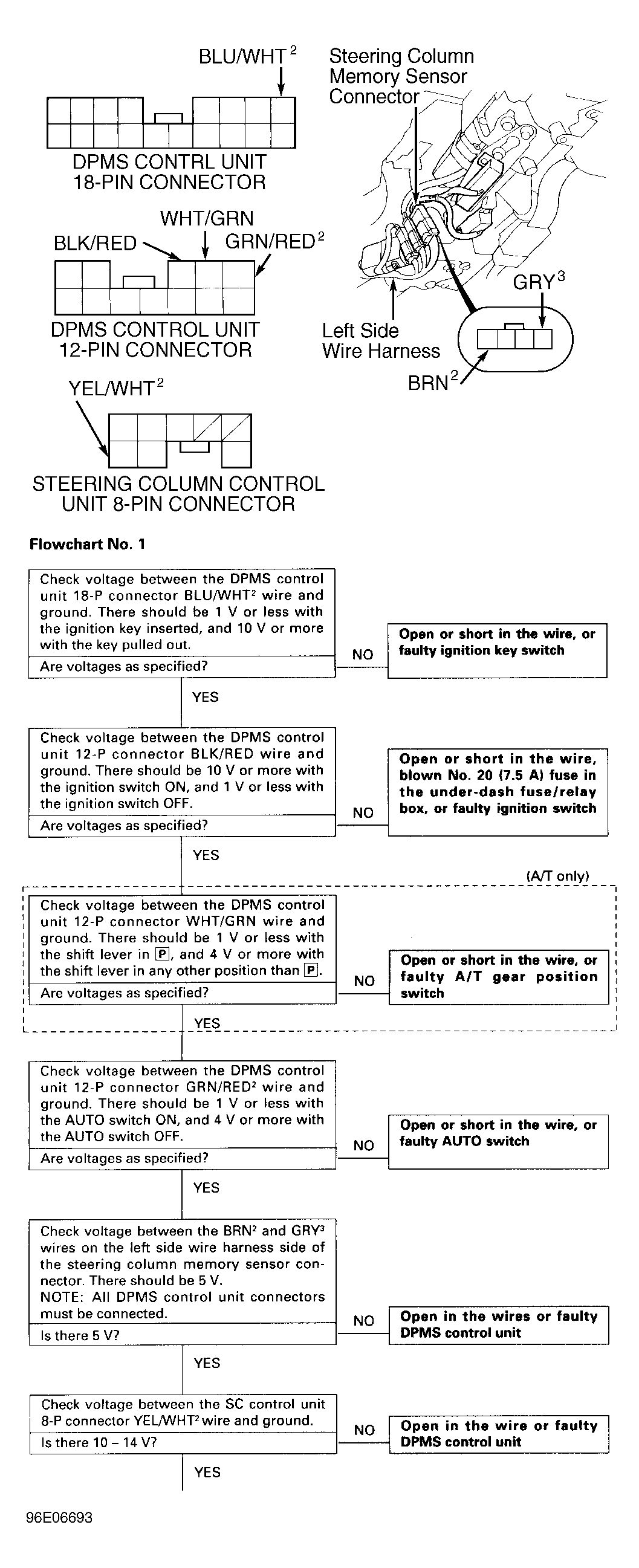

Fig 1: Flow Chart No. 1 (1 Of 2)

G96E06693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Flow Chart No. 1 (2 Of 2)

G96J06695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

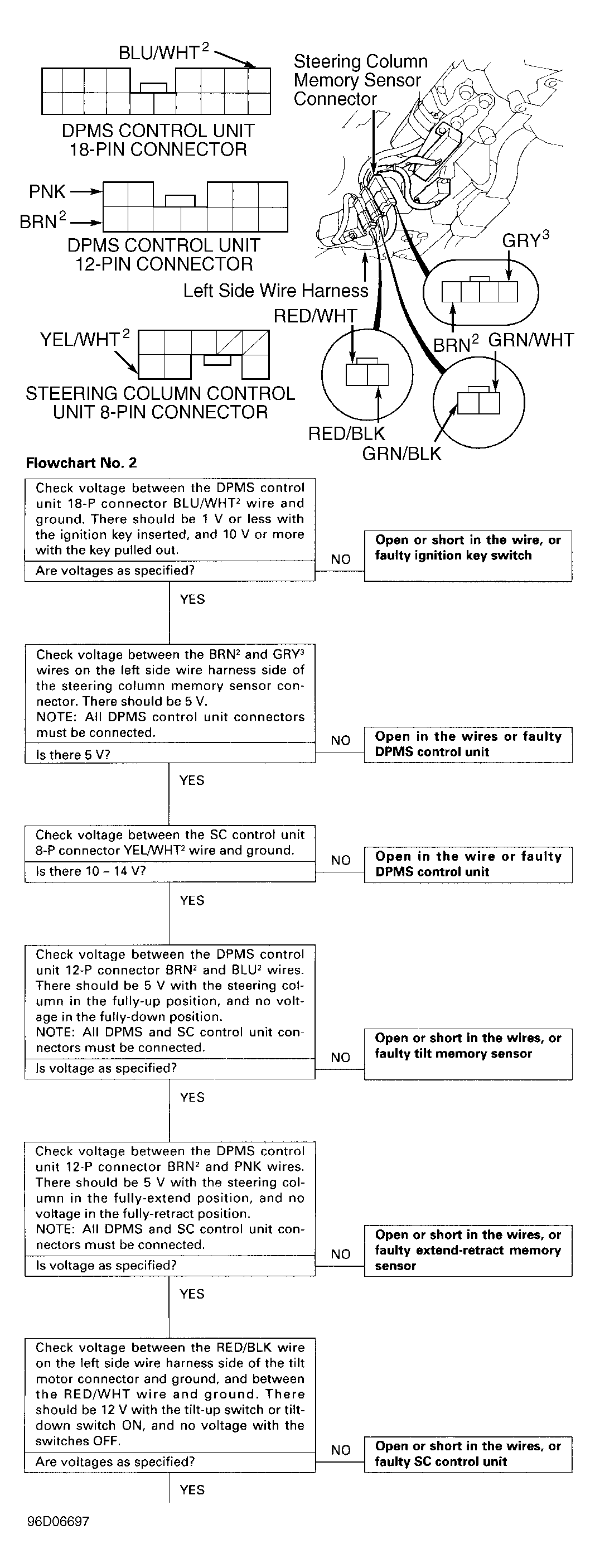

Fig 3: Flow Chart No. 2 (1 Of 2)

G96D06697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

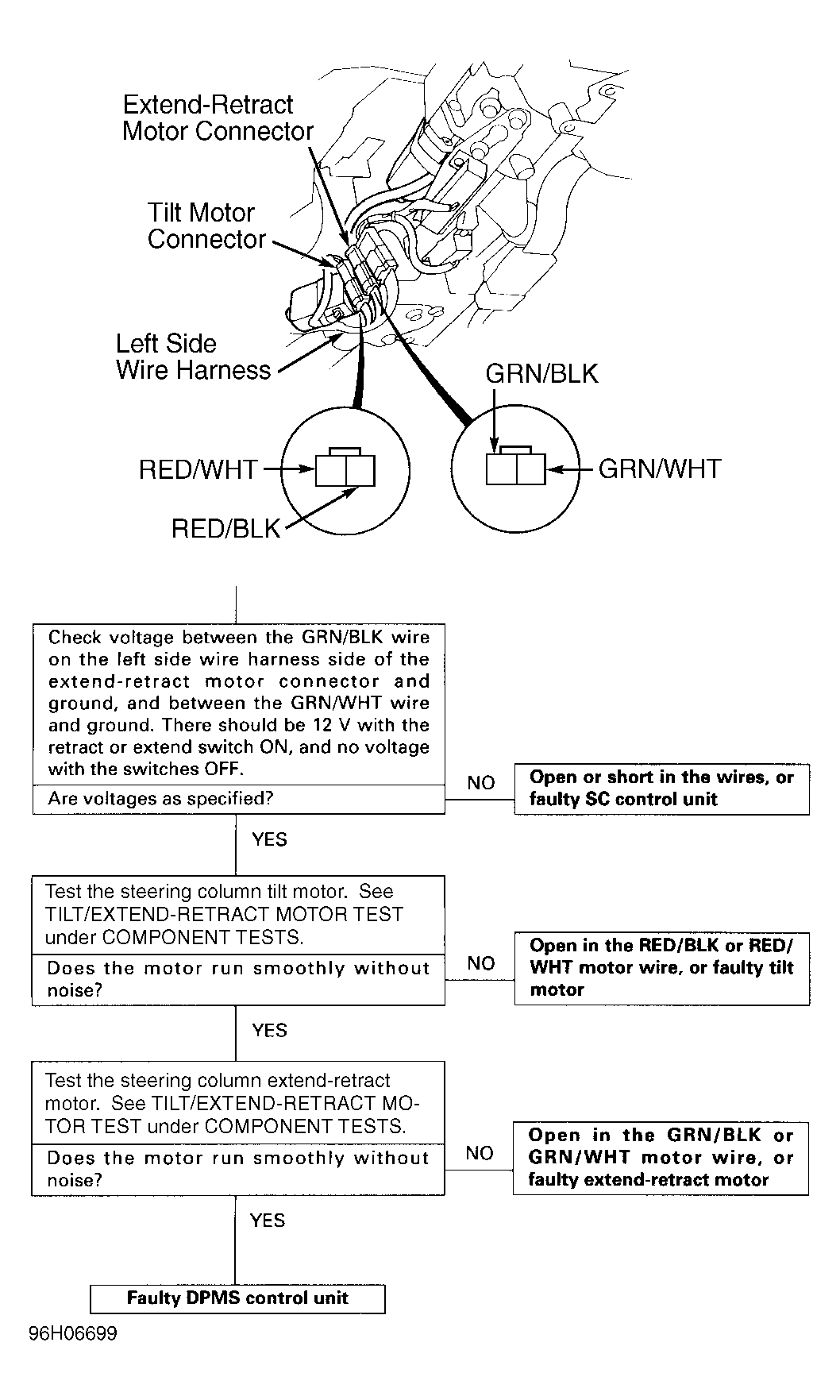

Fig 4: Flow Chart No. 2 (2 Of 2)

G96H06699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

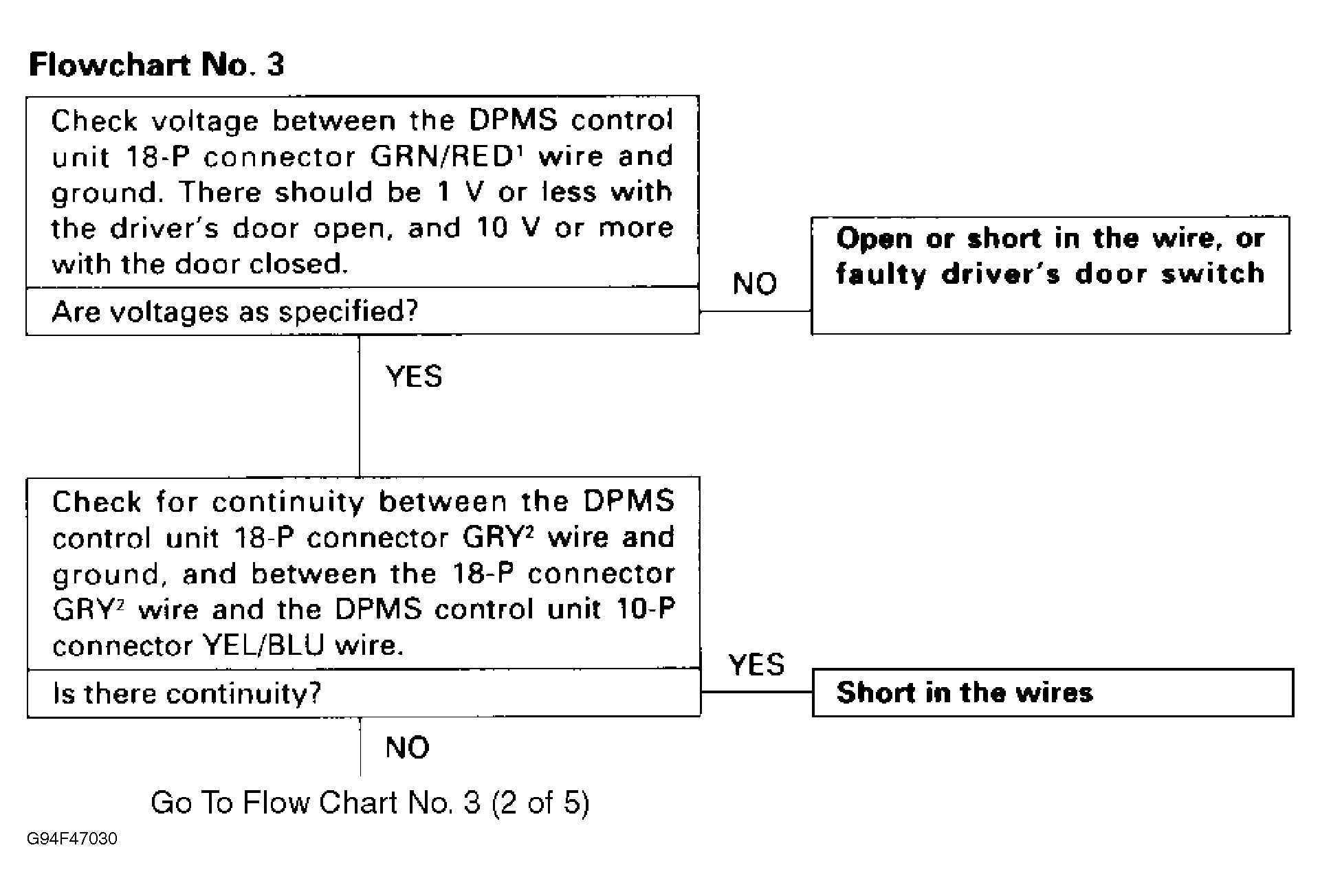

Fig 5: Flow Chart No. 3 (1 Of 5)

G94F47030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

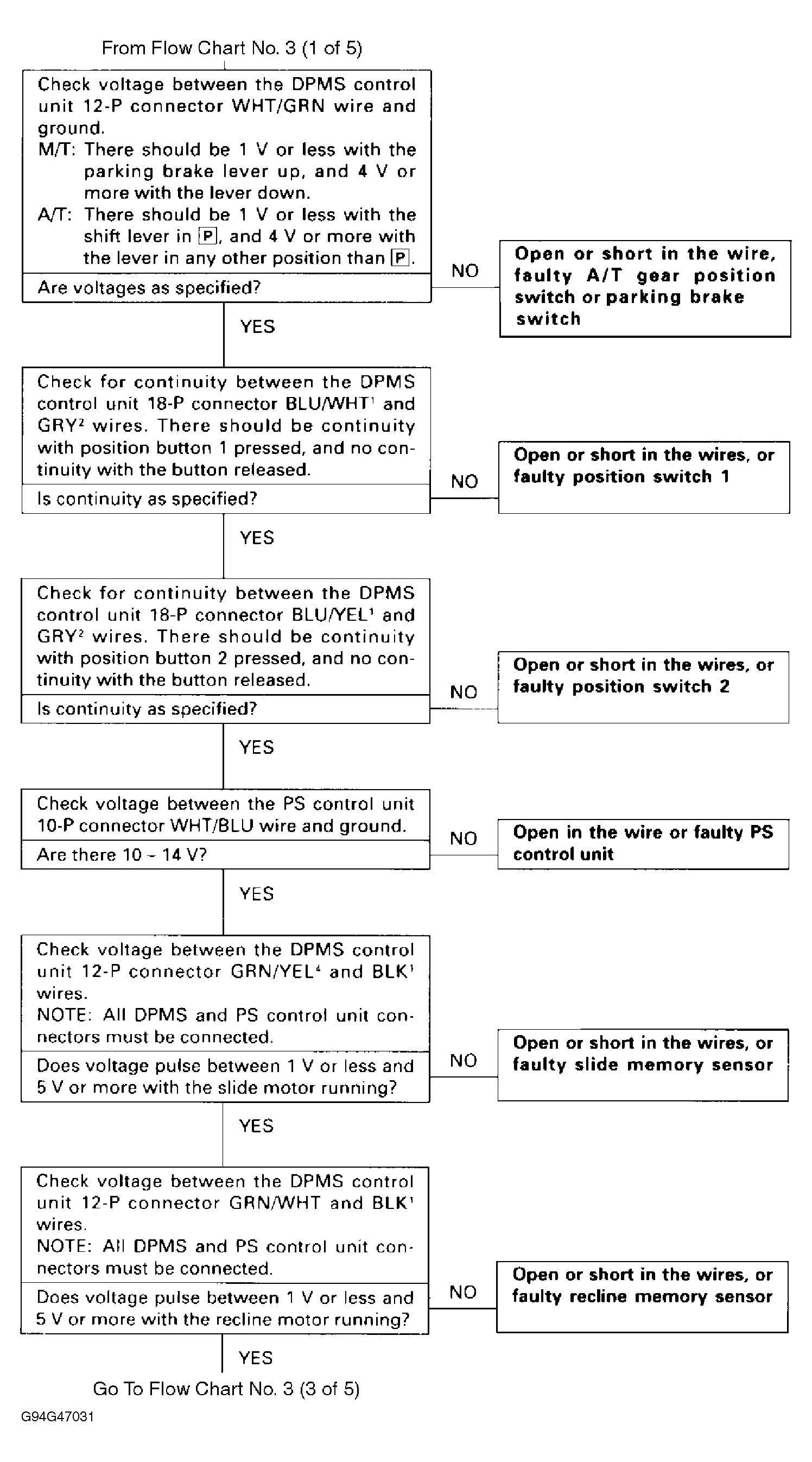

Fig 6: Flow Chart No. 3 (2 Of 5)

G94G47031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

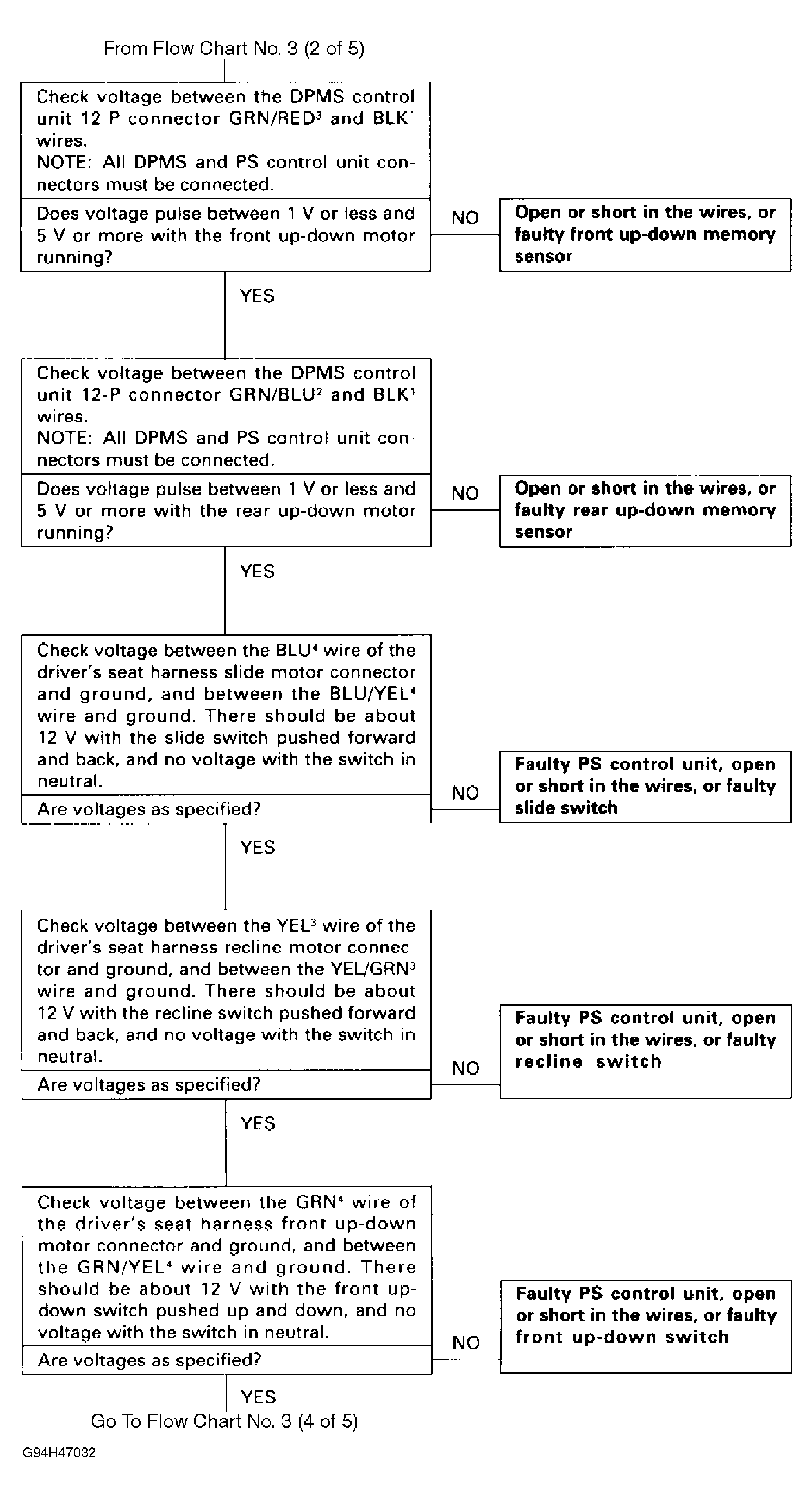

Fig 7: Flow Chart No. 3 (3 Of 5)

G94H47032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

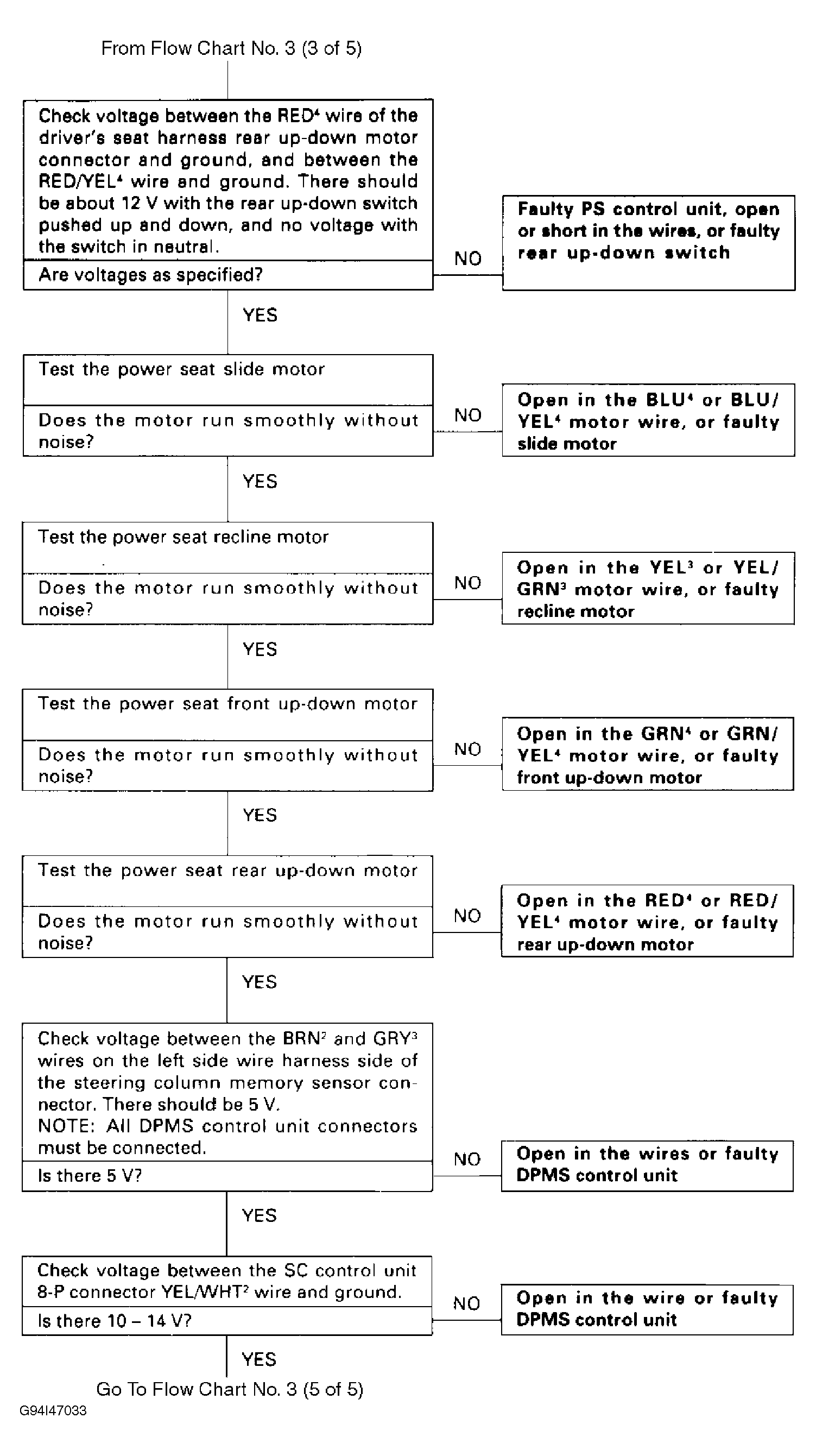

Fig 8: Flow Chart No. 3 (4 Of 5)

G94I47033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

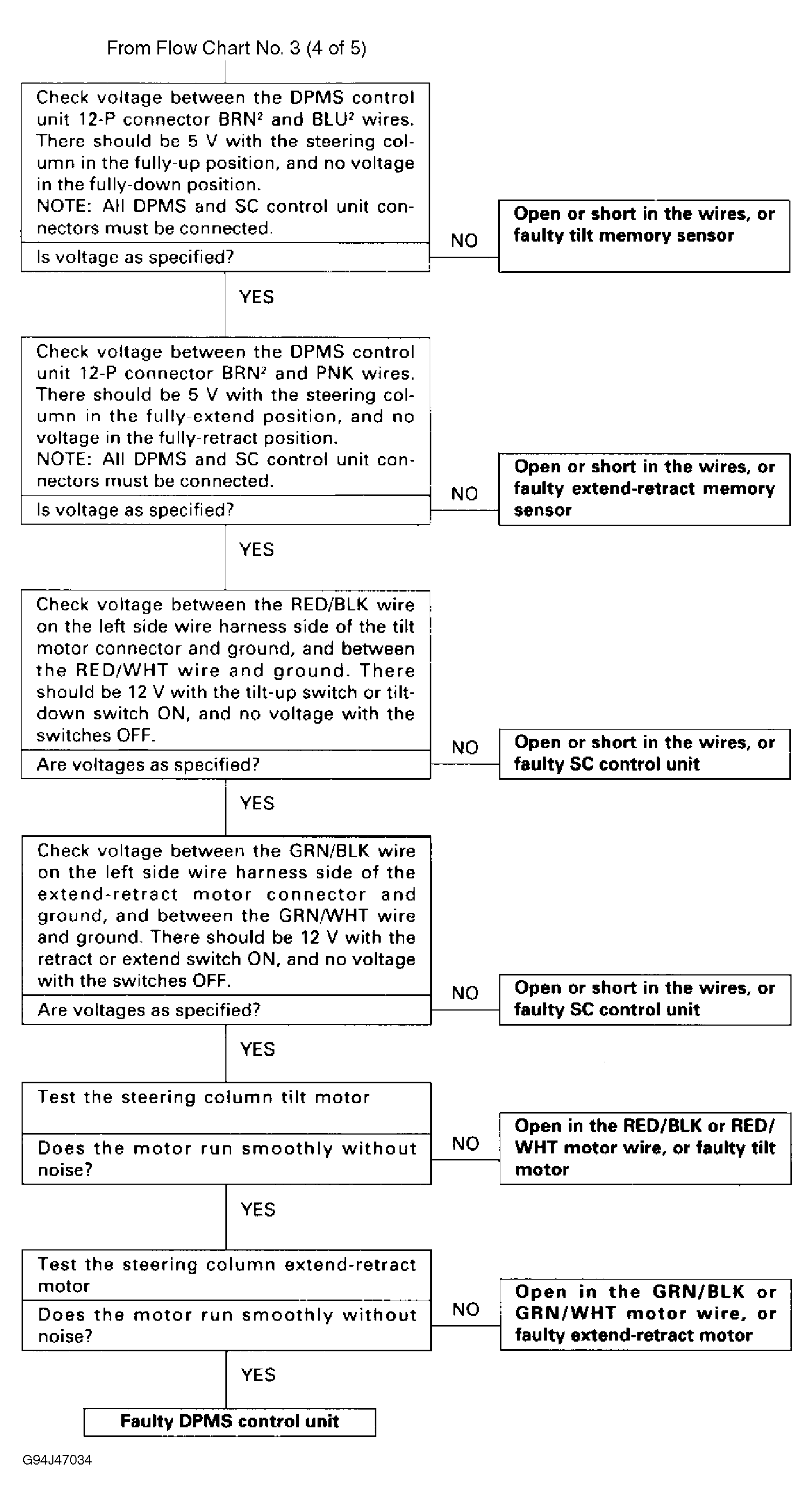

Fig 9: Flow Chart No. 3 (5 Of 5)

G94J47034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

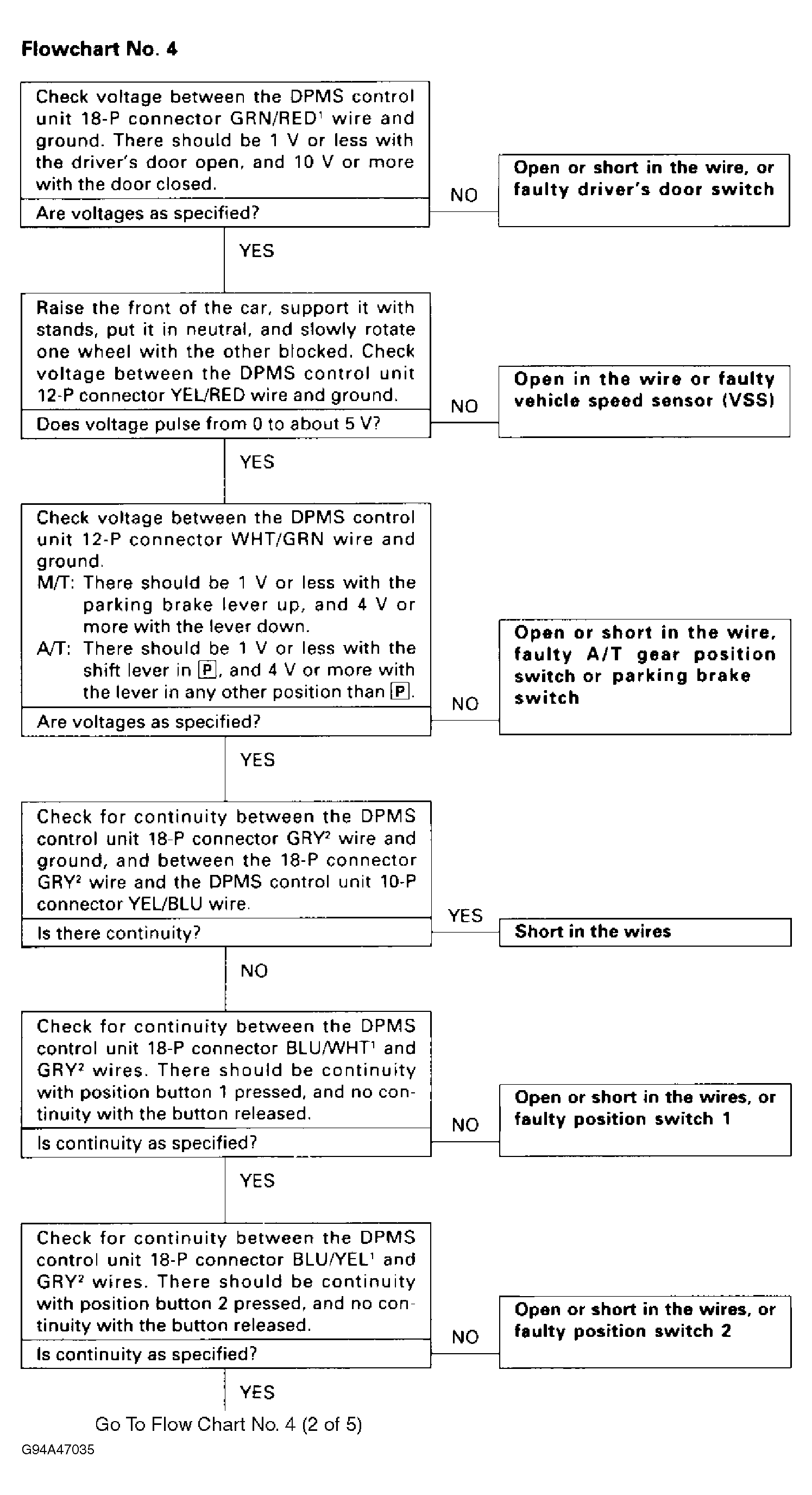

Fig 10: Flow Chart No. 4 (1 Of 5)

G94A47035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

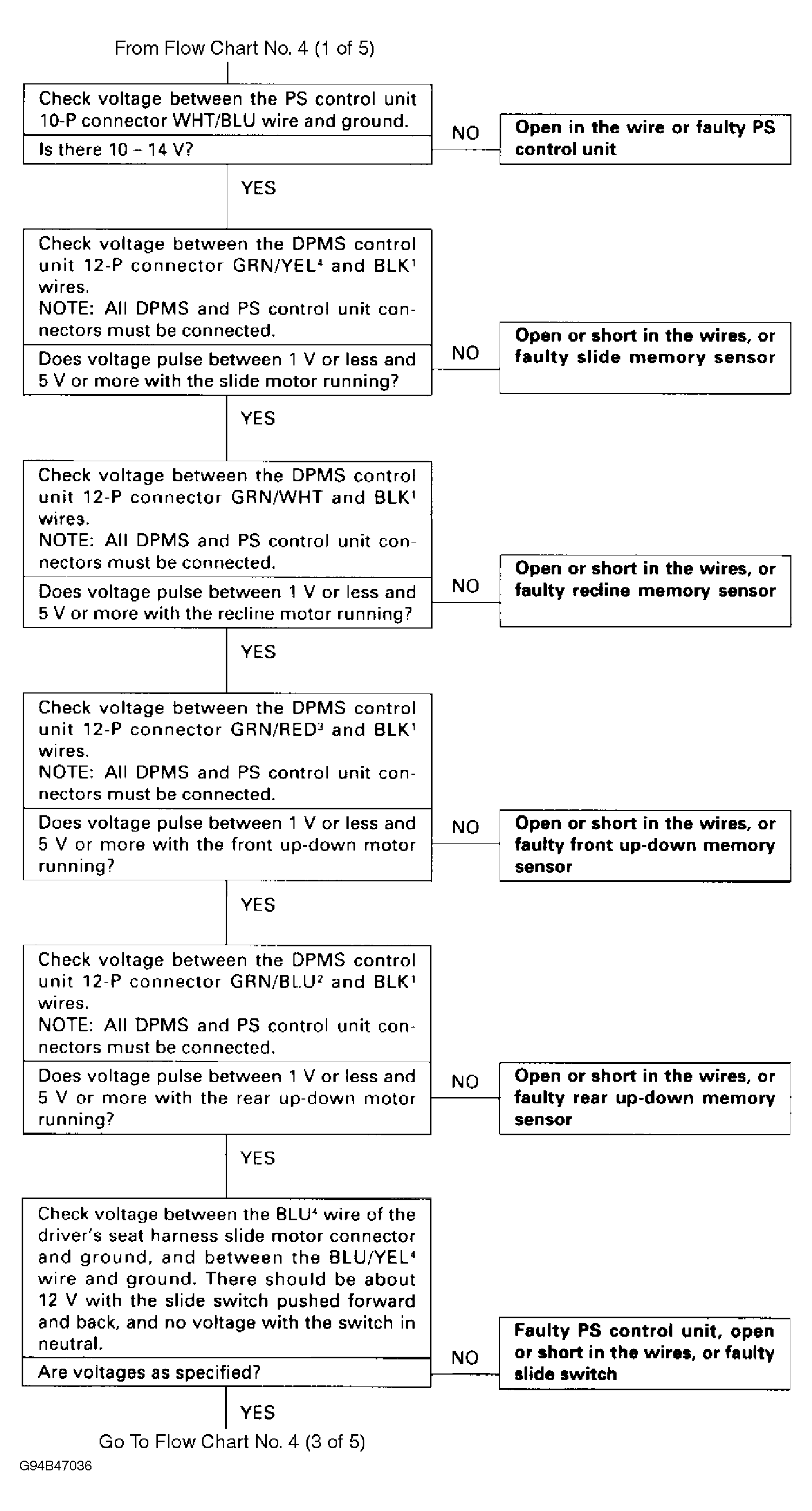

Fig 11: Flow Chart No. 4 (2 Of 5)

G94B47036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

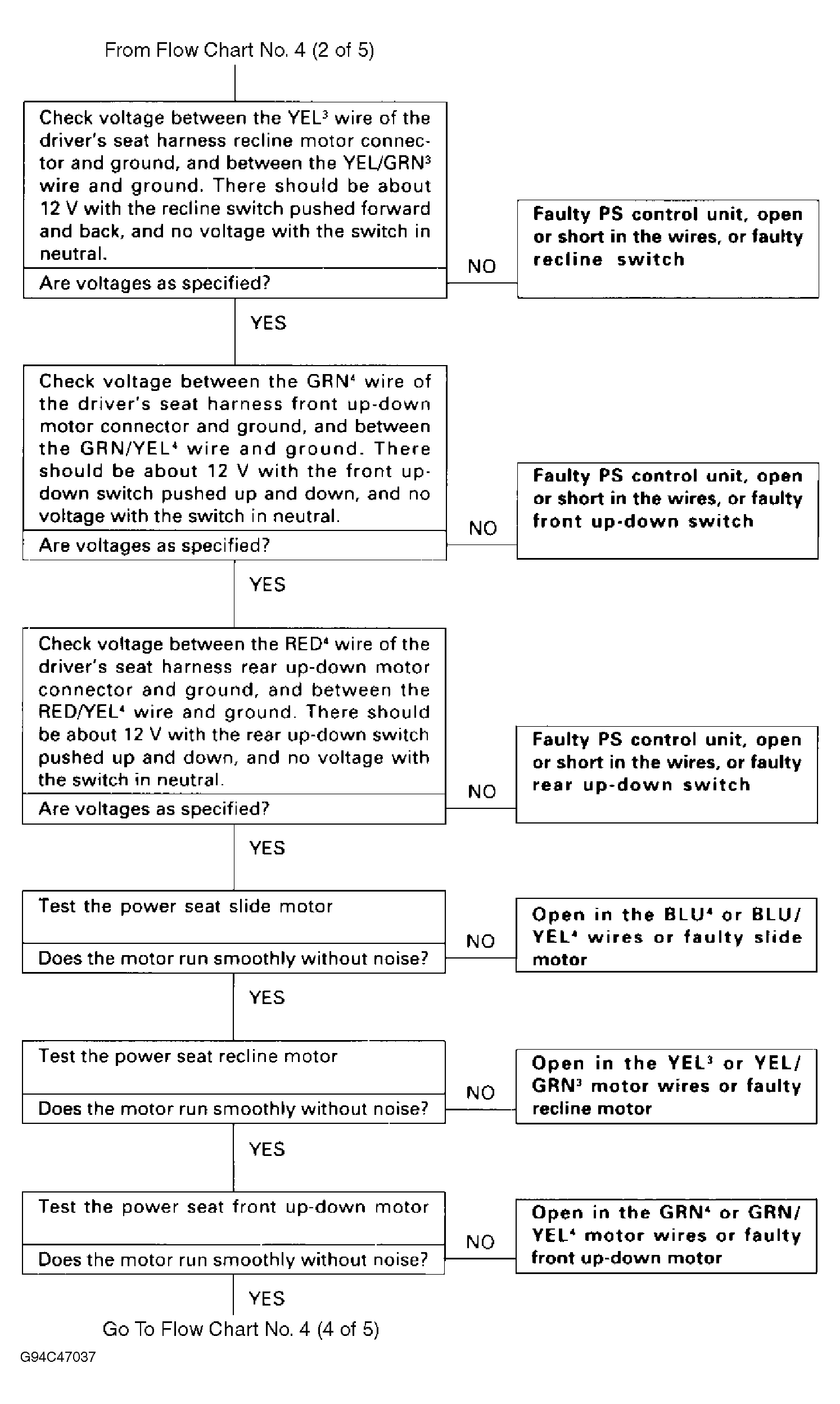

Fig 12: Flow Chart No. 4 (3 Of 5)

G94C47037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

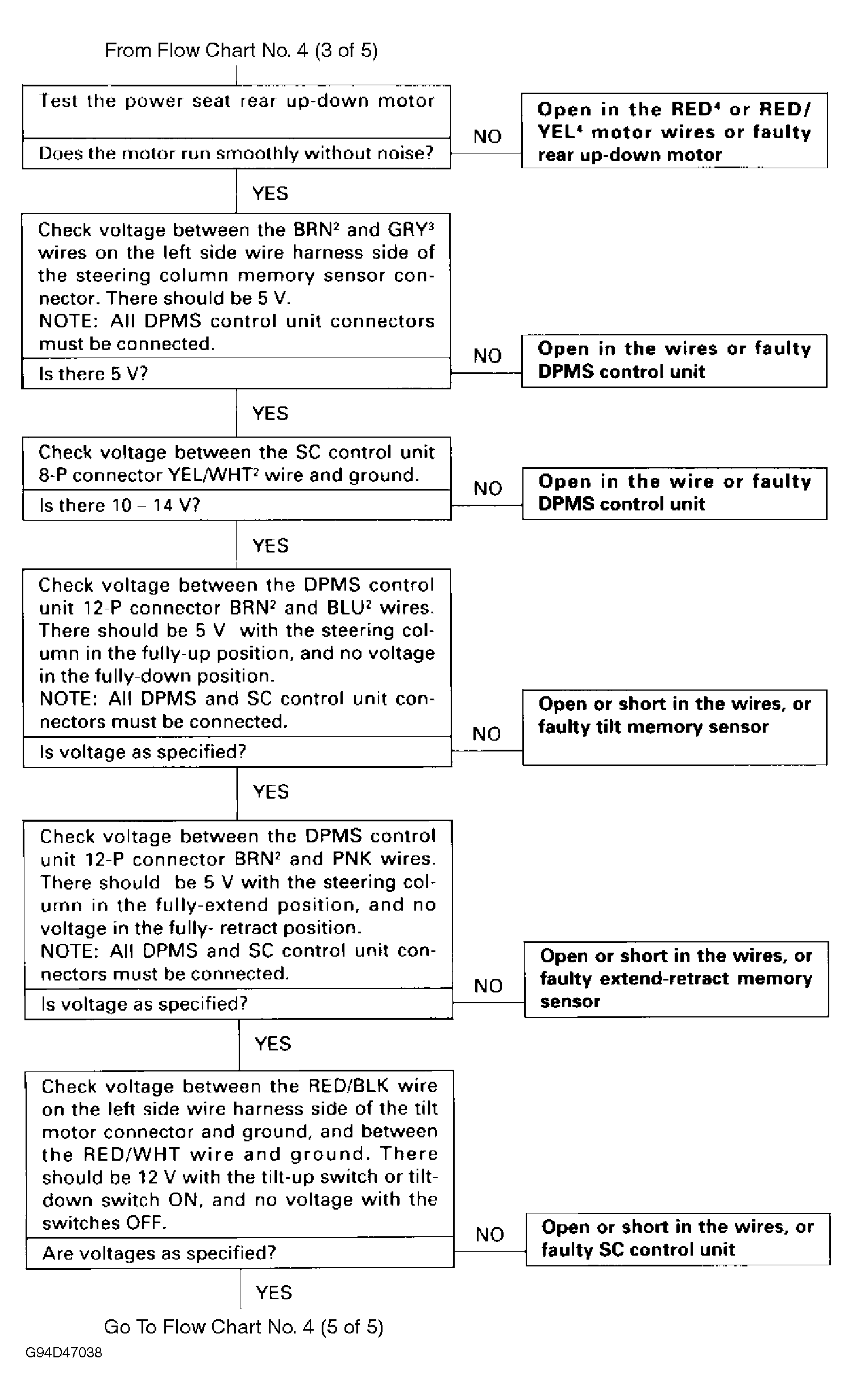

Fig 13: Flow Chart No. 4 (4 Of 5)

G94D47038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

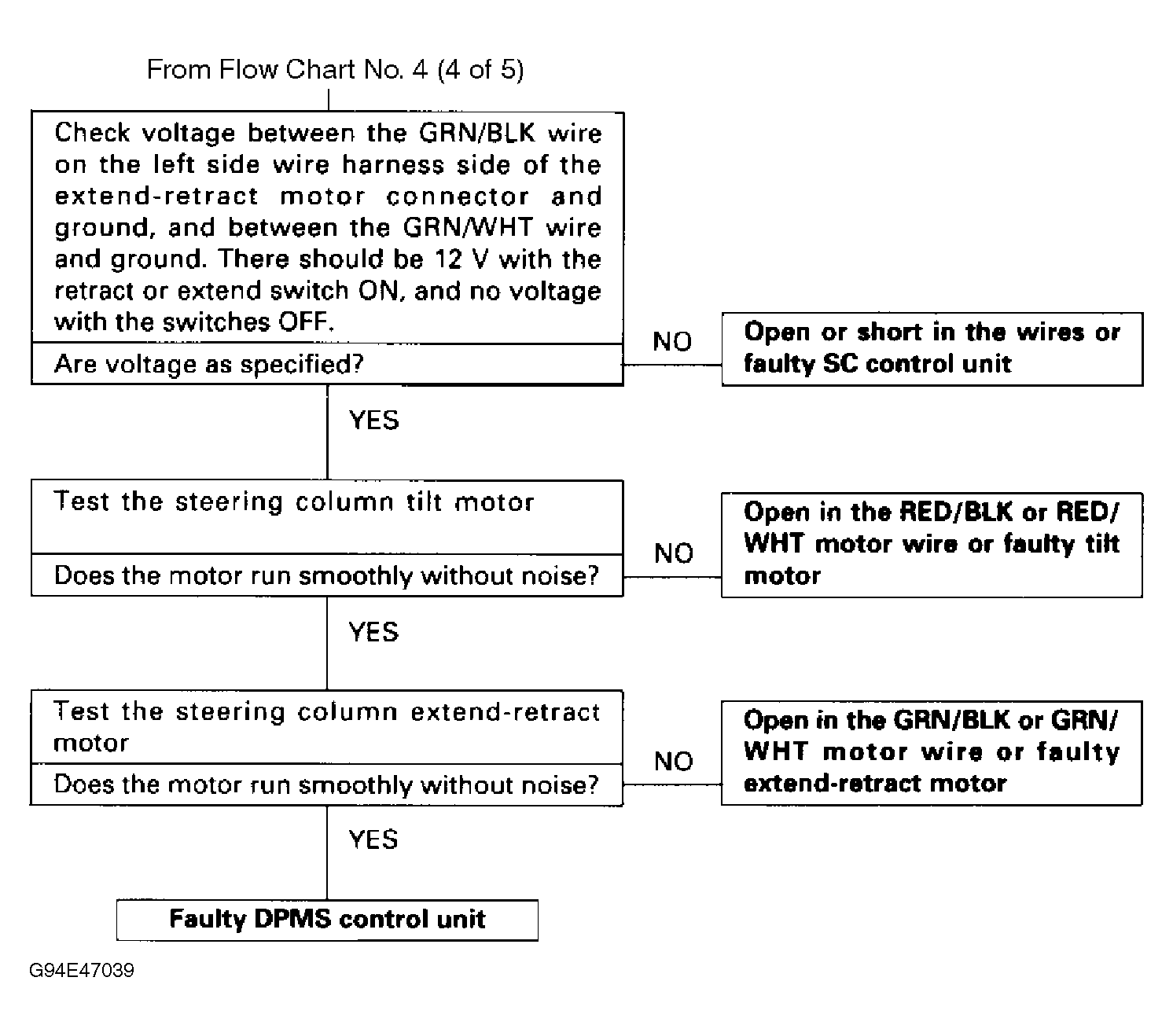

Fig 14: Flow Chart No. 4 (5 Of 5)

G94E47039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

Fig 15: Flow Chart No. 5 (1 Of 2)

G94H47040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Flow Chart No. 5 (2 Of 2)

G94I47041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

Fig 17: Flow Chart No. 6

G94J47042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Flow Chart No. 7

G94A47043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

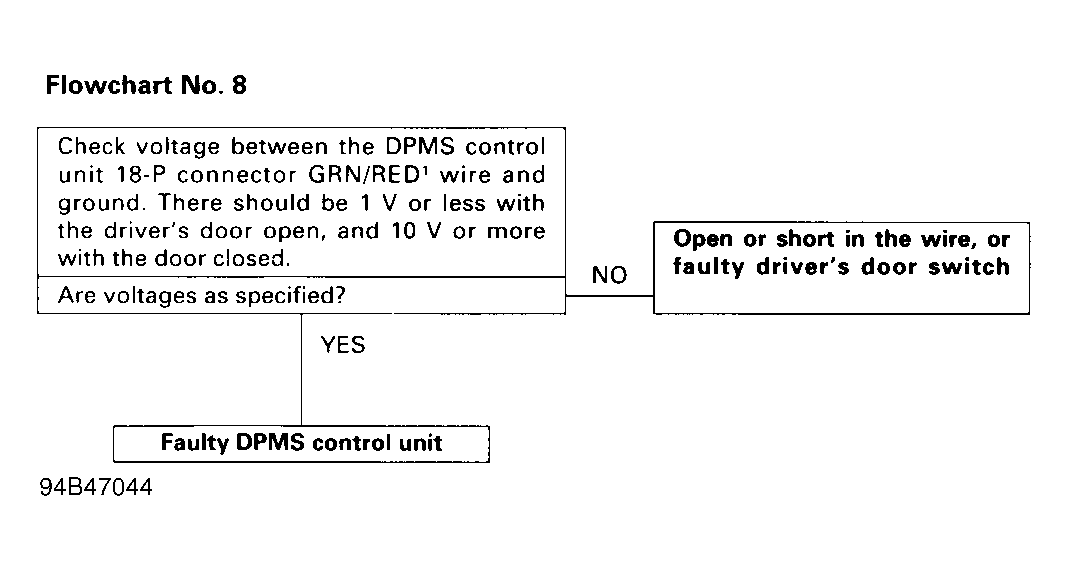

Fig 19: Flow Chart No. 8

G94B47044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

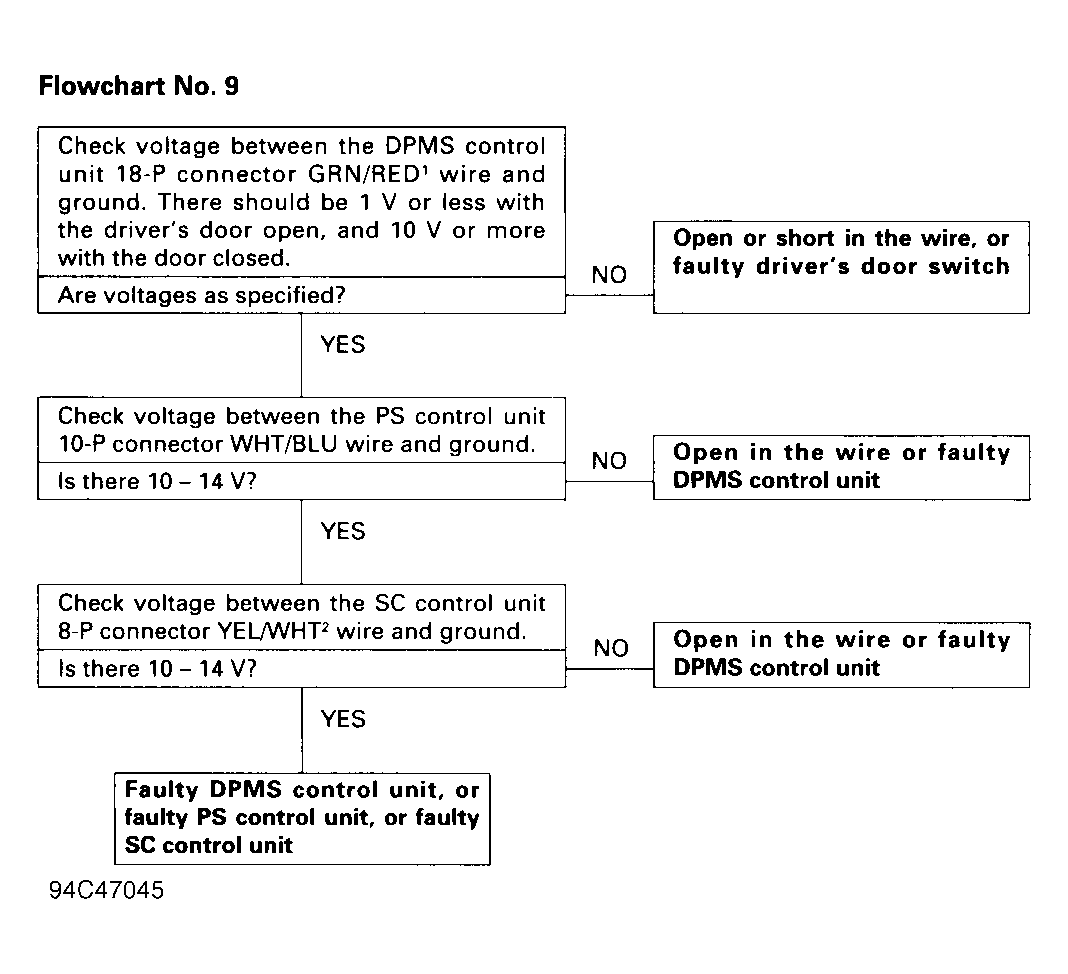

Fig 20: Flow Chart No. 9

G94C47045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

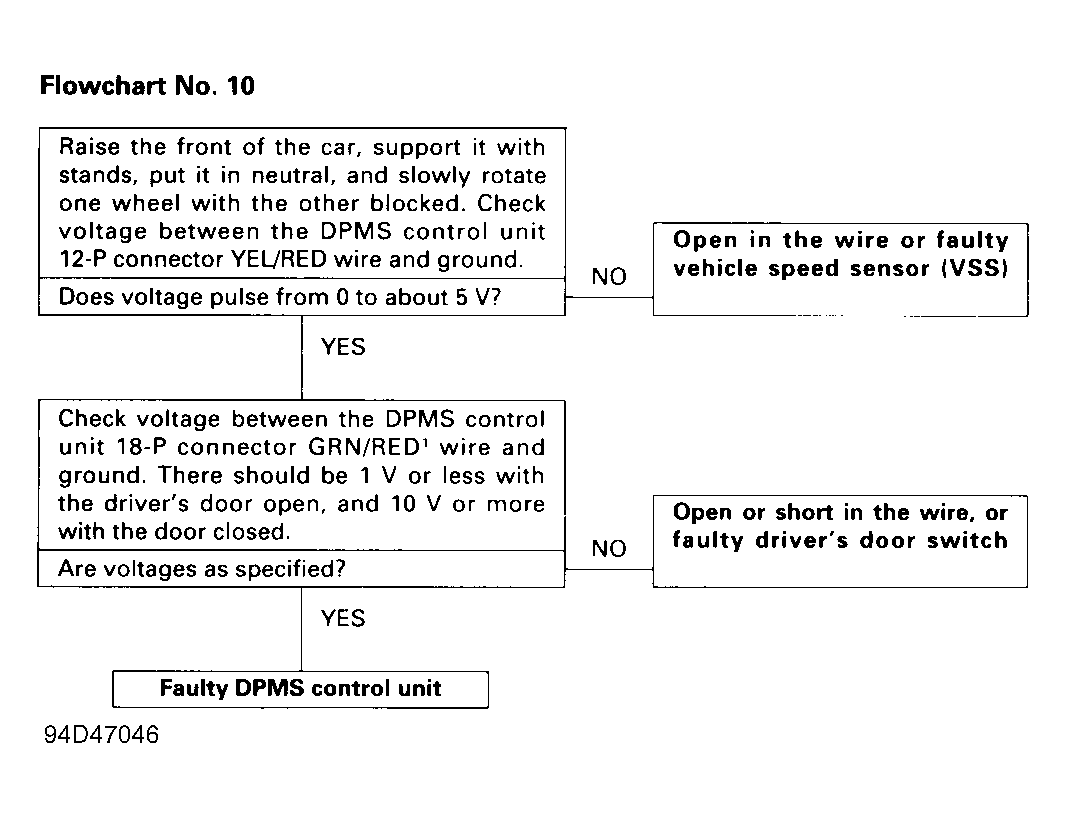

Fig 21: Flow Chart No. 10

G94D47046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

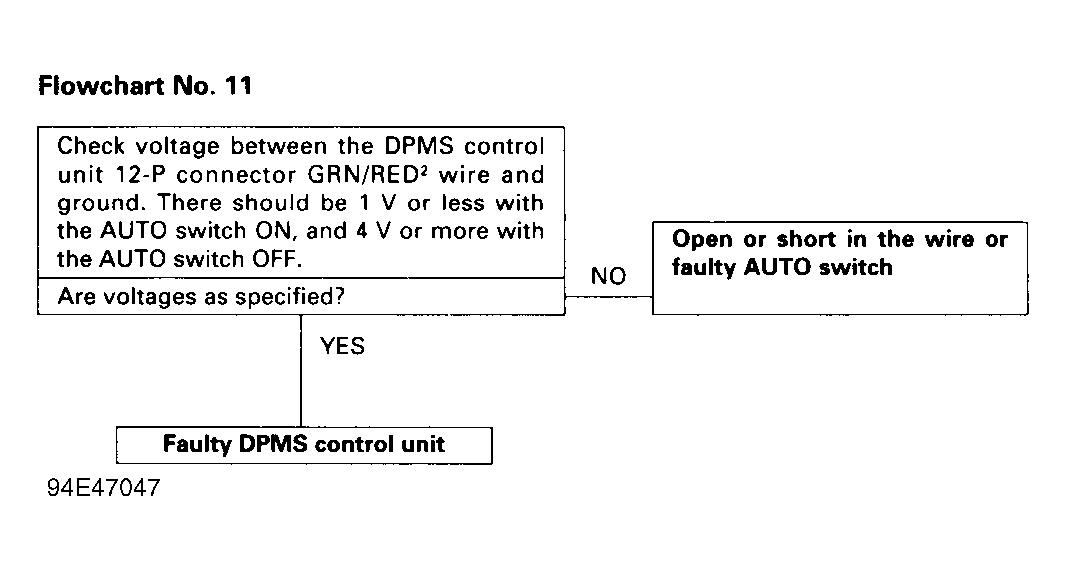

Fig 22: Flow Chart No. 11

G94E47047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Flow Chart No. 12

G94F47048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

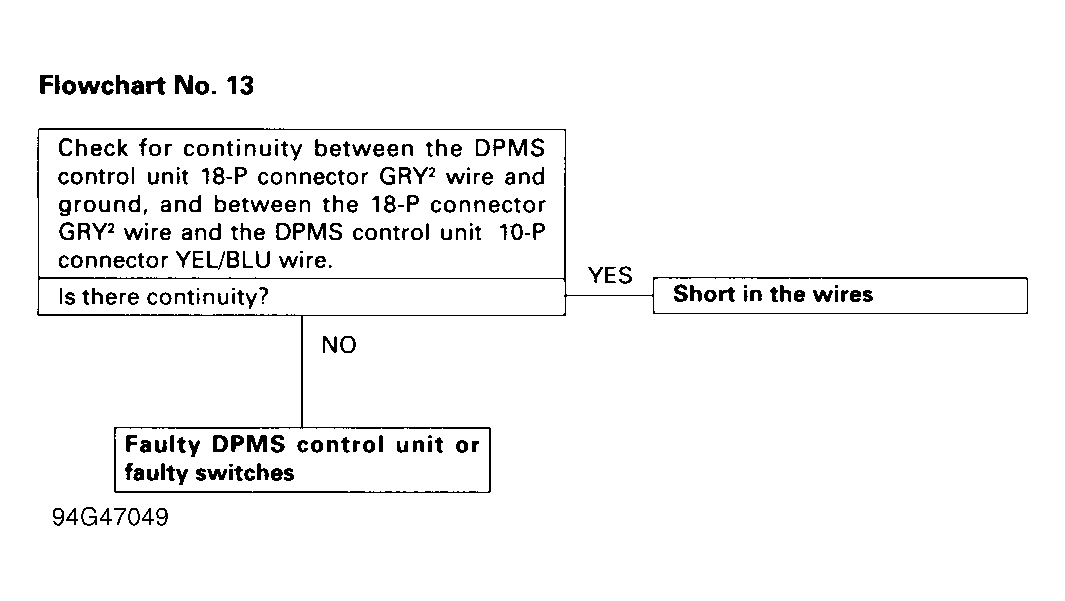

Fig 24: Flow Chart No. 13

G94G47049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

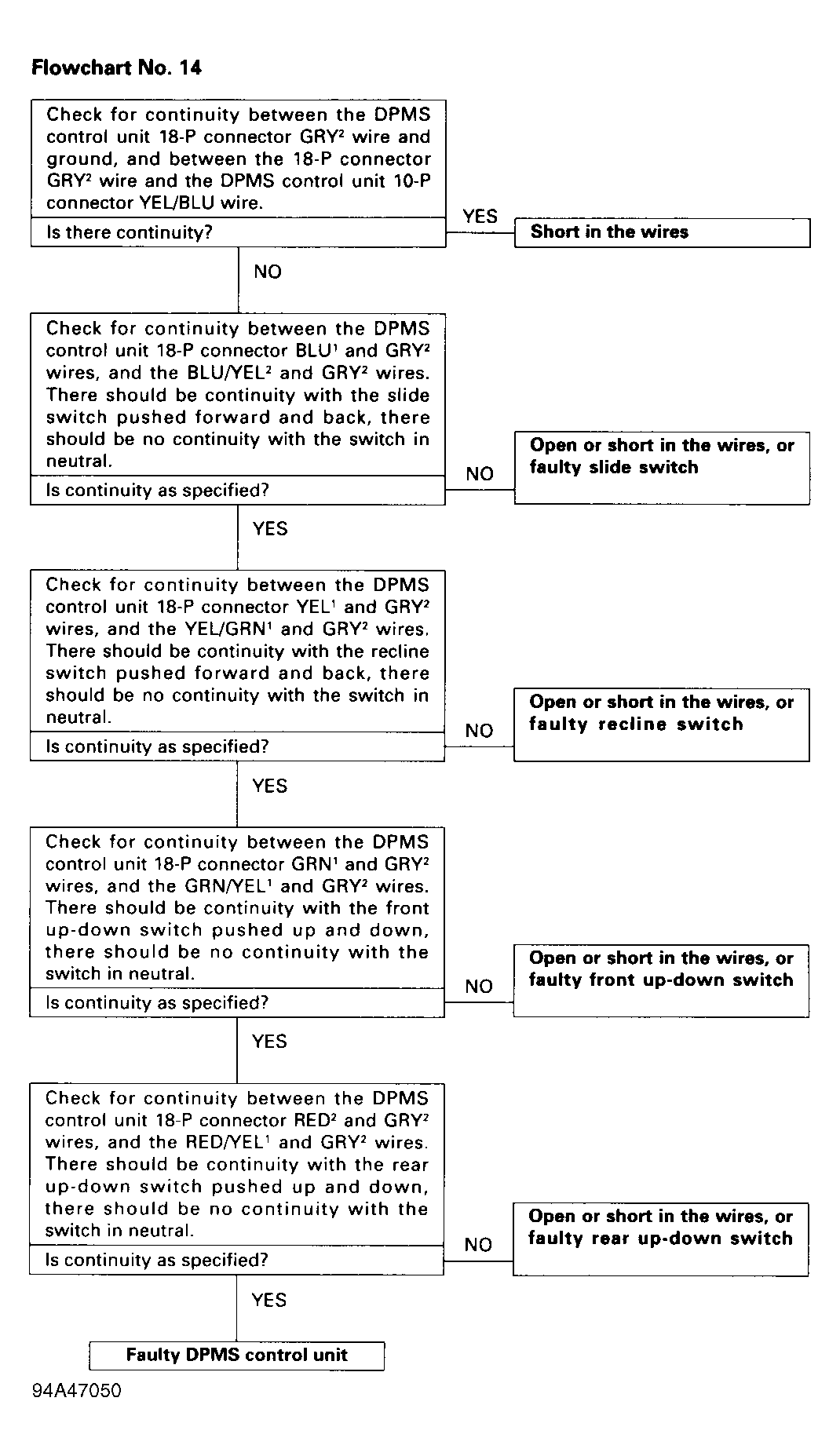

Fig 25: Flow Chart No. 14

G94A47050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

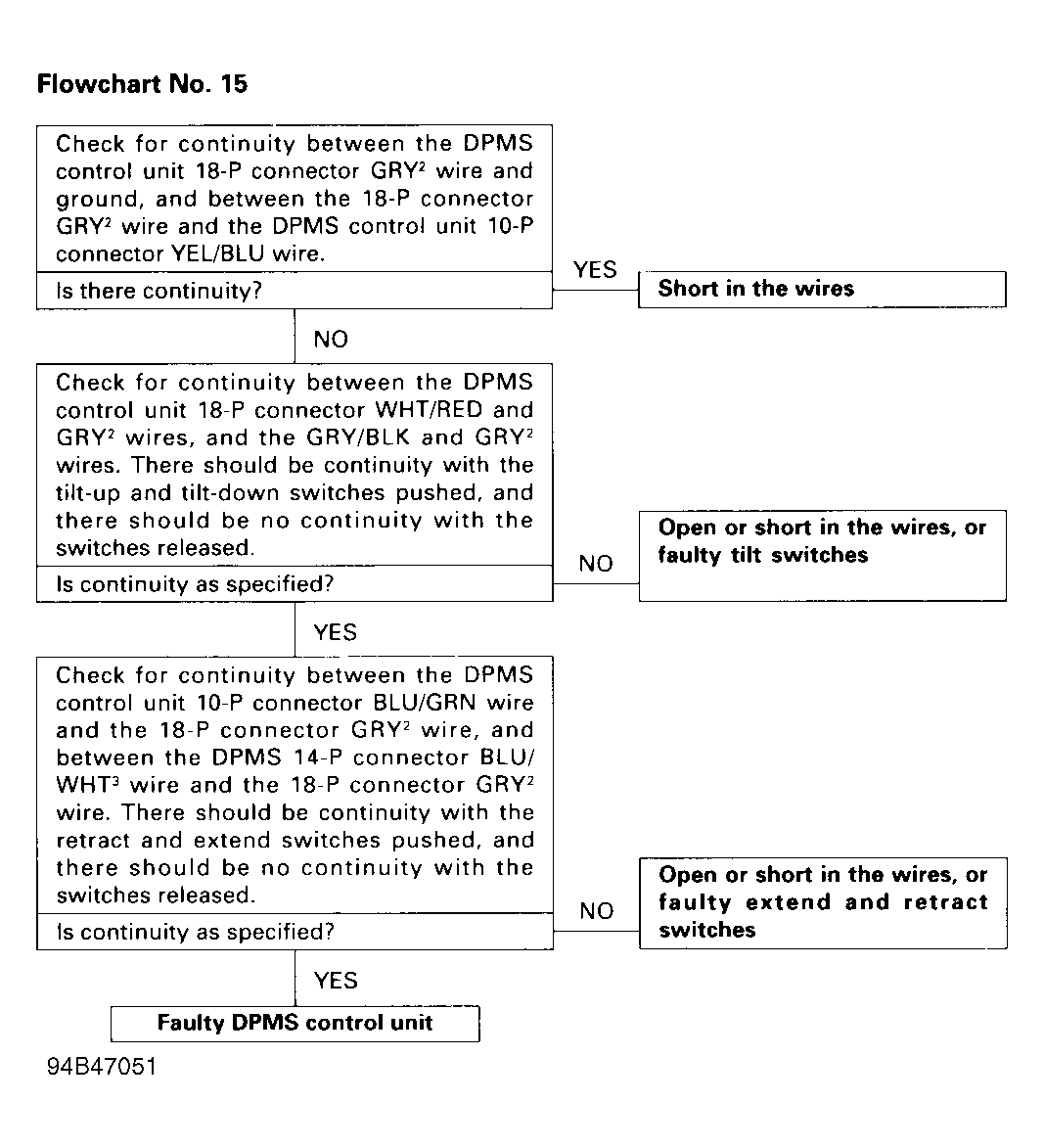

Fig 26: Flow Chart No. 15

G94B47051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Flow Chart No. 16 (1 Of 2)

G94C47052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Flow Chart No. 16 (2 Of 2)

G94D47053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

Fig 29: Flow Chart No. 17

G94G47056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Flow Chart No. 18

G94H47057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Flow Chart No. 19

G94I47058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Flow Chart No. 20

G94J47059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

Fig 33: Flow Chart No. 21

G94C47060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

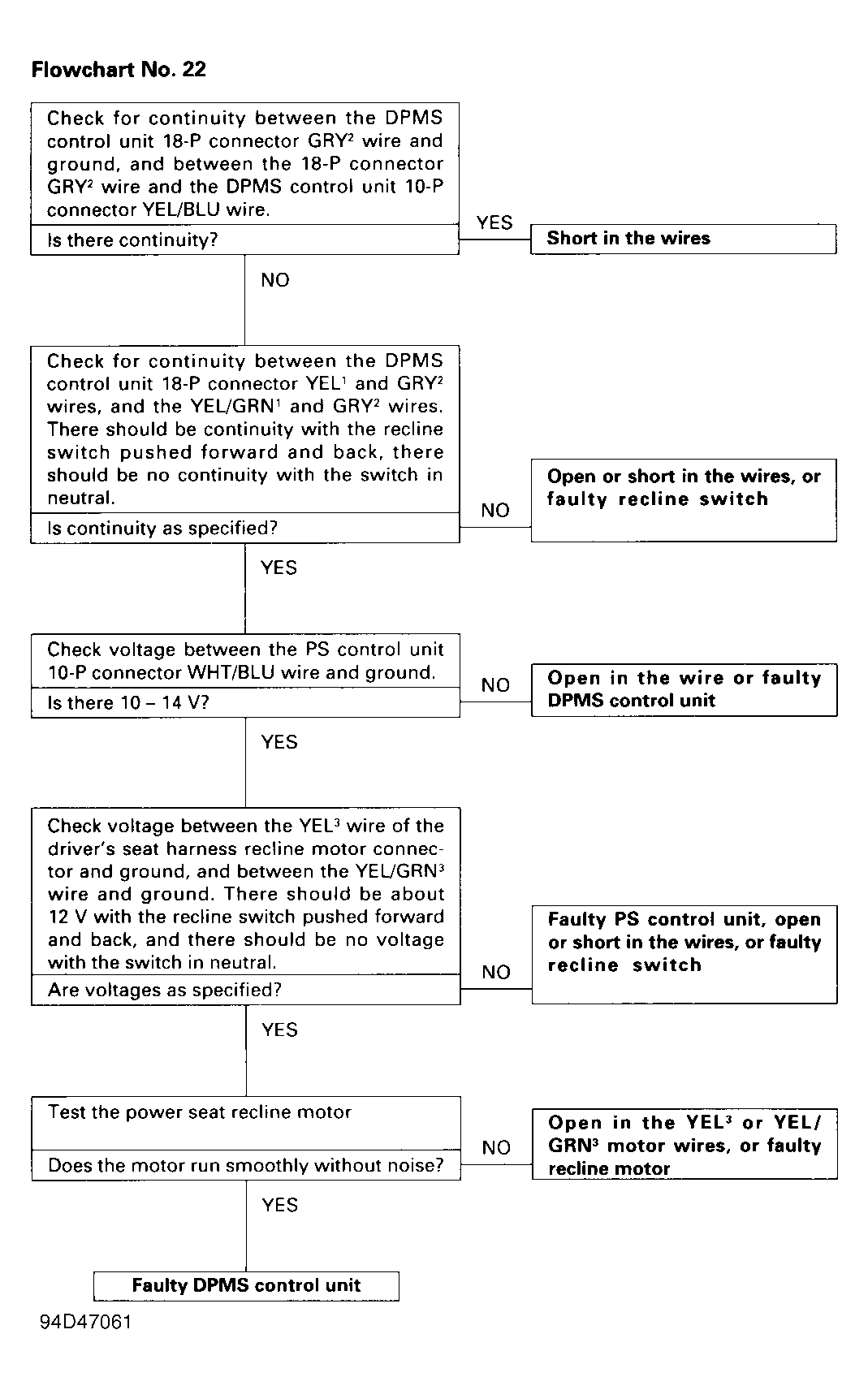

Fig 34: Flow Chart No. 22

G94D47061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

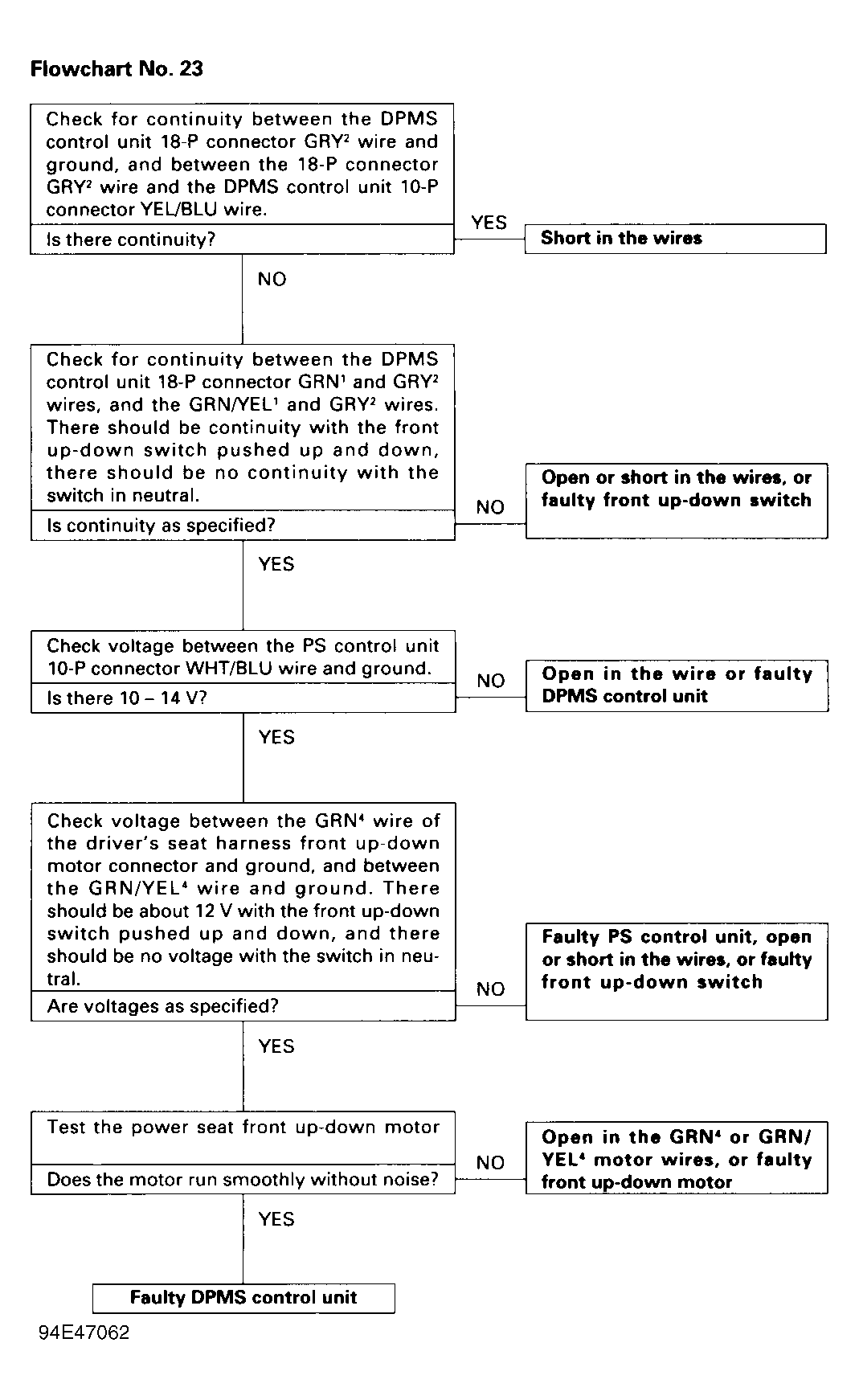

Fig 35: Flow Chart No. 23

G94E47062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

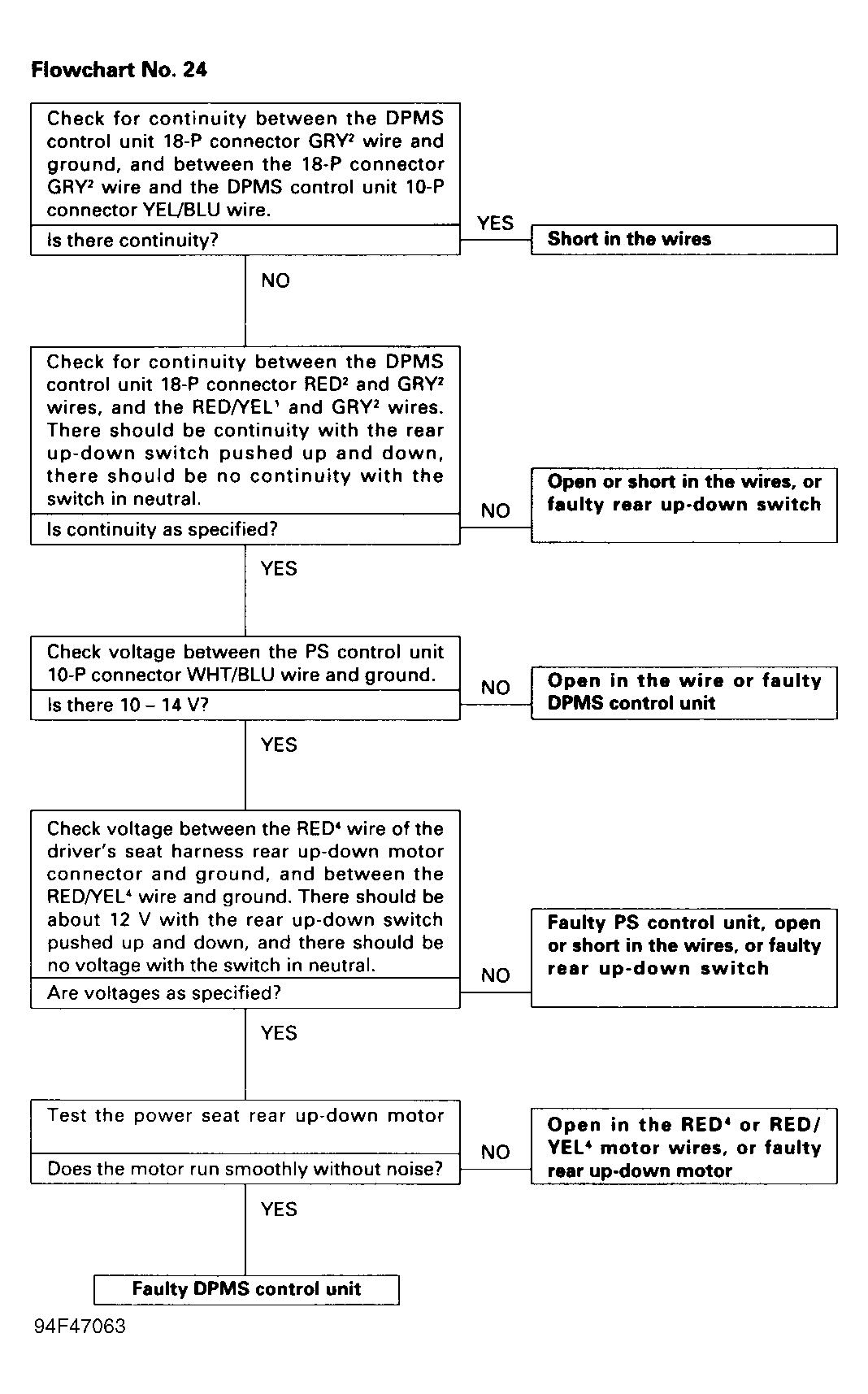

Fig 36: Flow Chart No. 24

G94F47063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

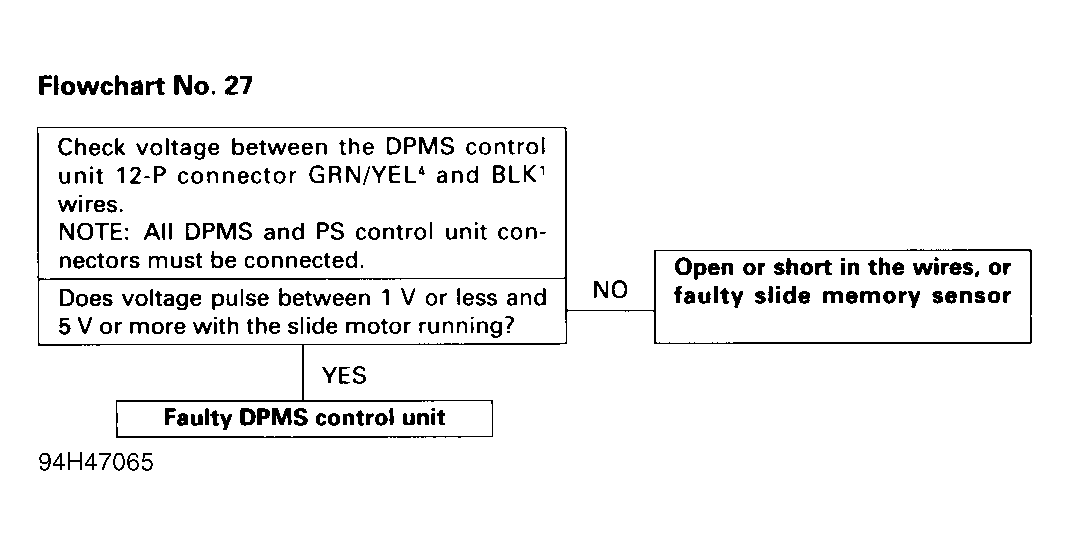

Fig 37: Flow Chart No. 27

G94H47065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

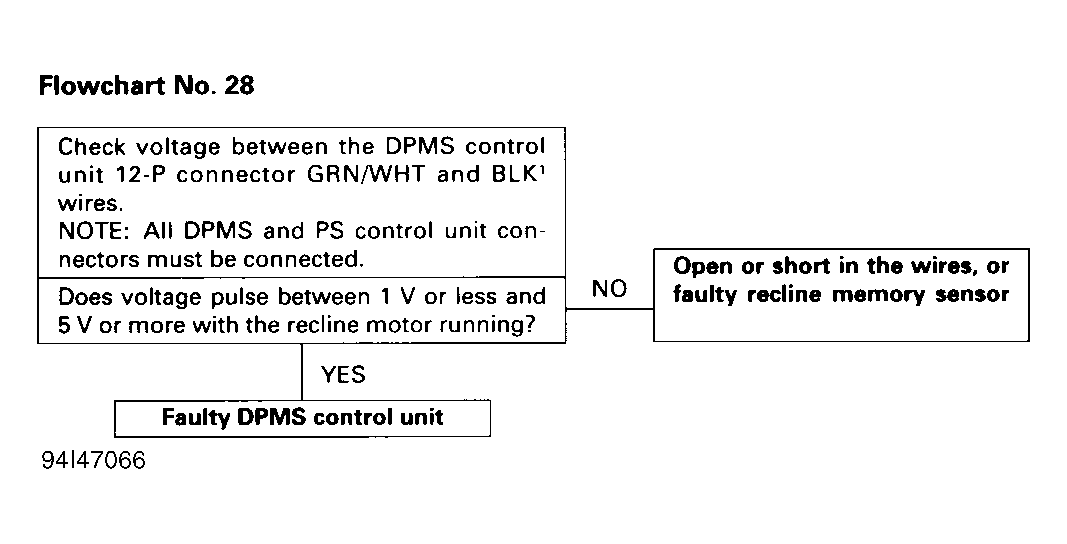

Fig 38: Flow Chart No. 28

G94I47066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

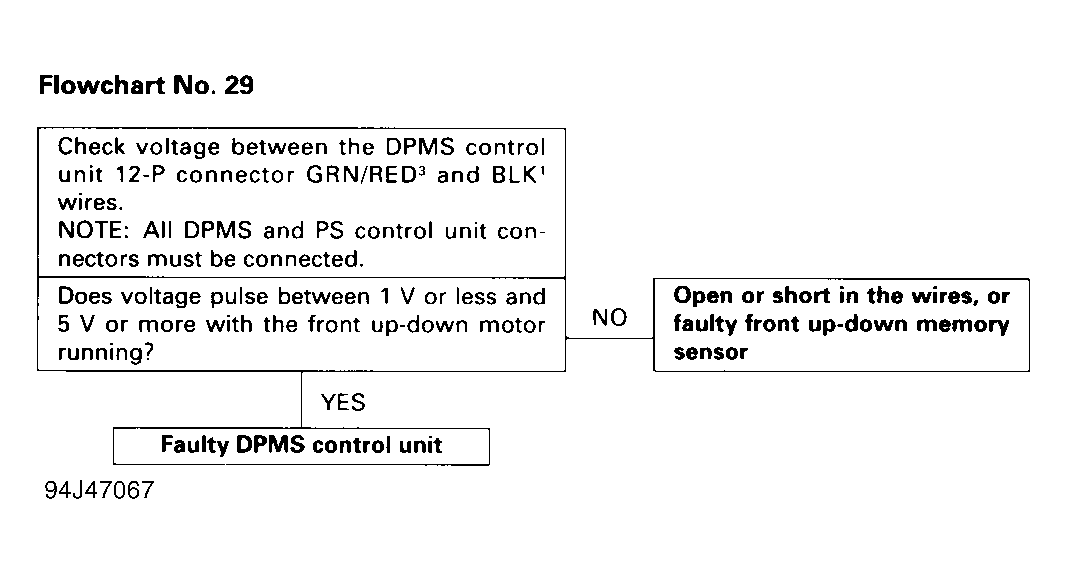

Fig 39: Flow Chart No. 29

G94J47067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

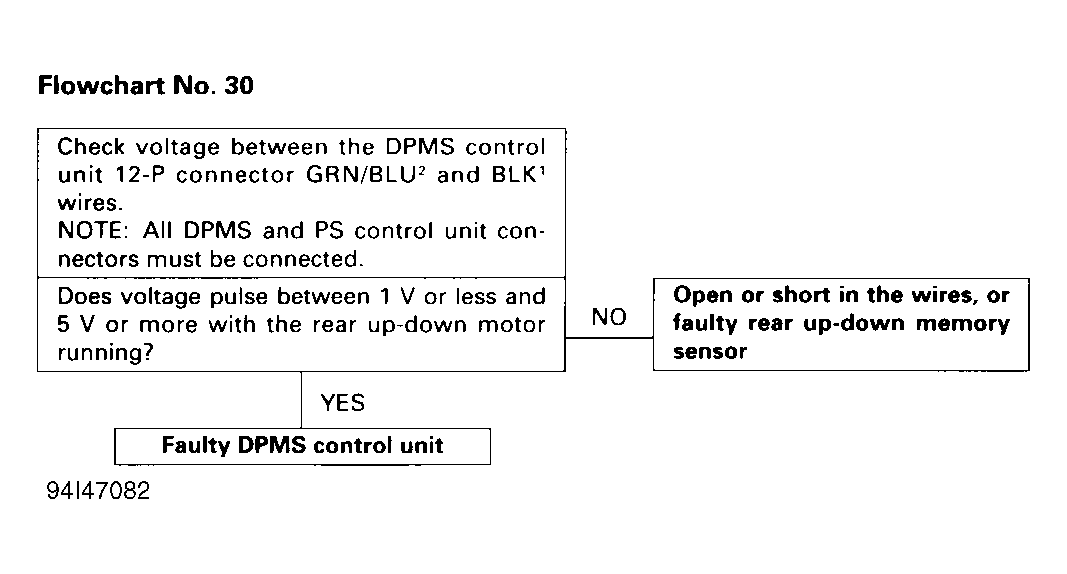

Fig 40: Flow Chart No. 30

G94I47082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

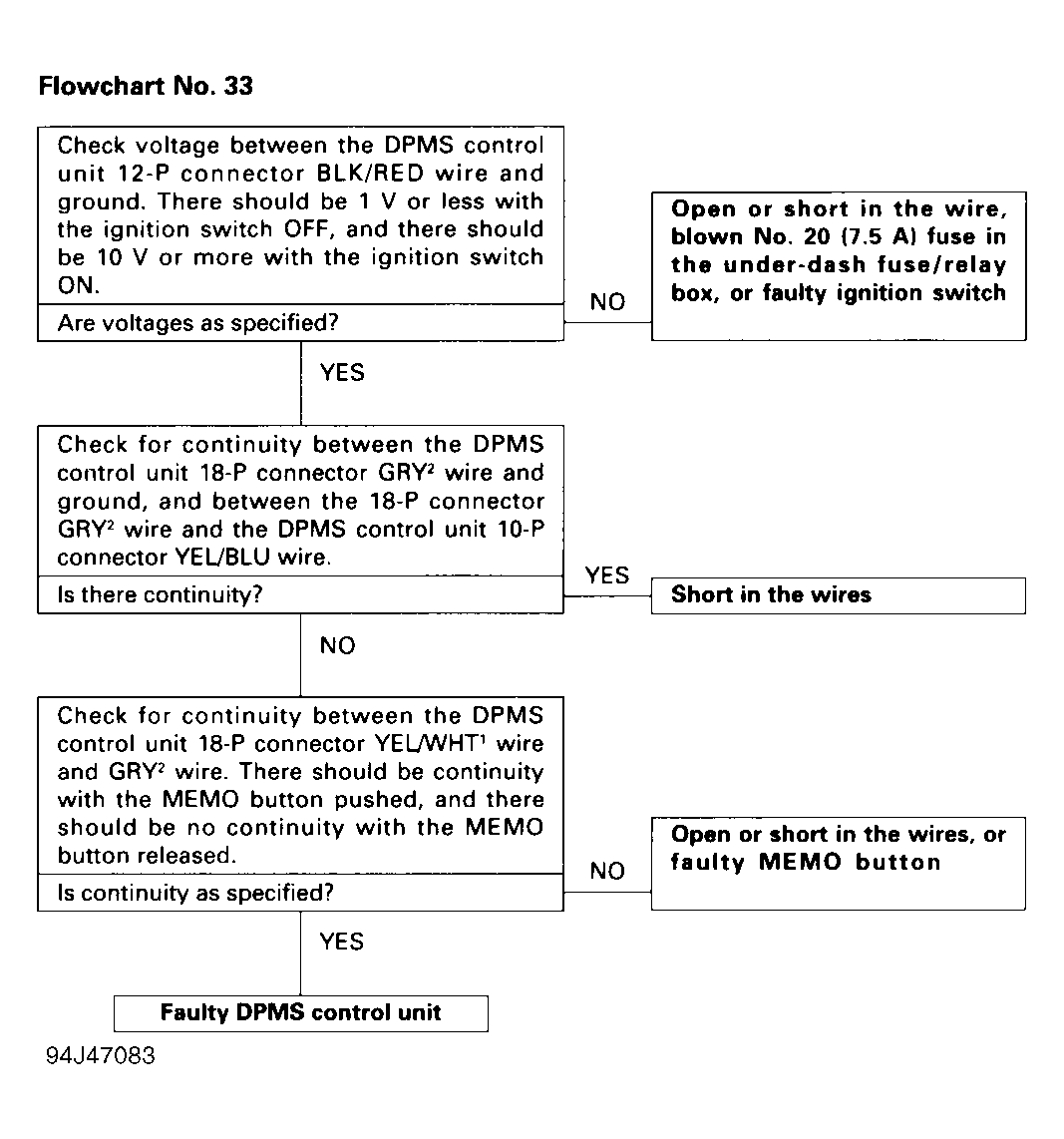

Fig 41: Flow Chart No. 33

G94J47083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

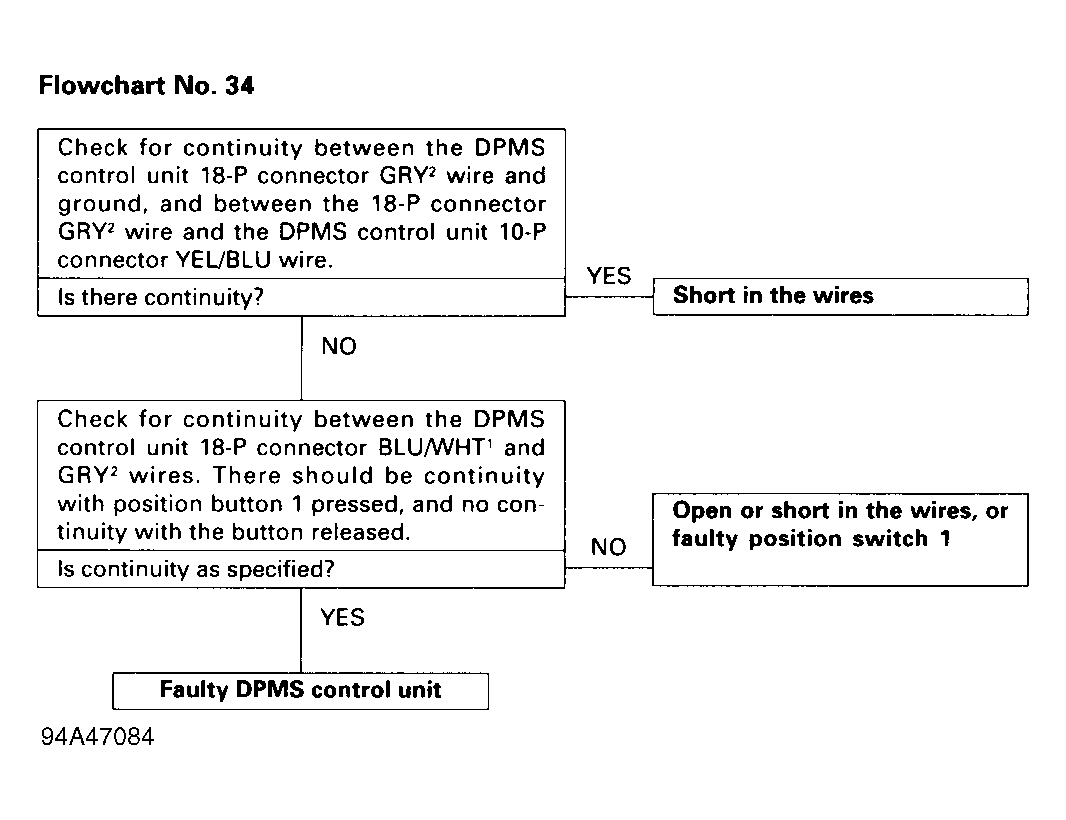

Fig 42: Flow Chart No. 34

G94A47084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

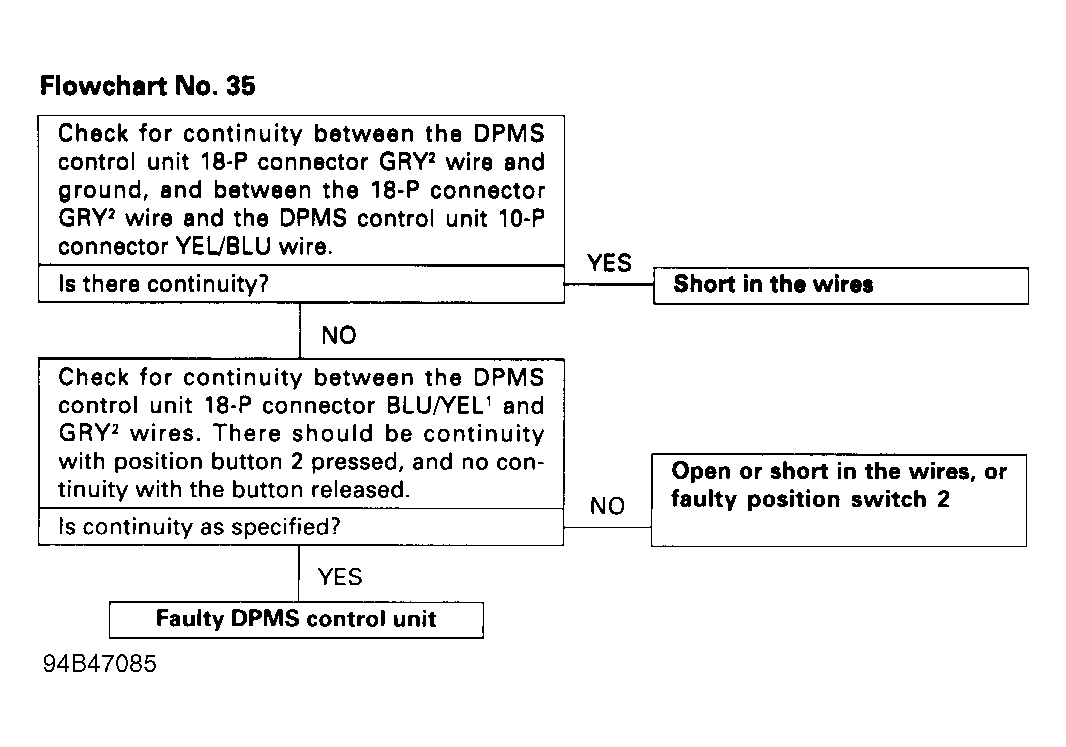

Fig 43: Flow Chart No. 35

G94B47085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

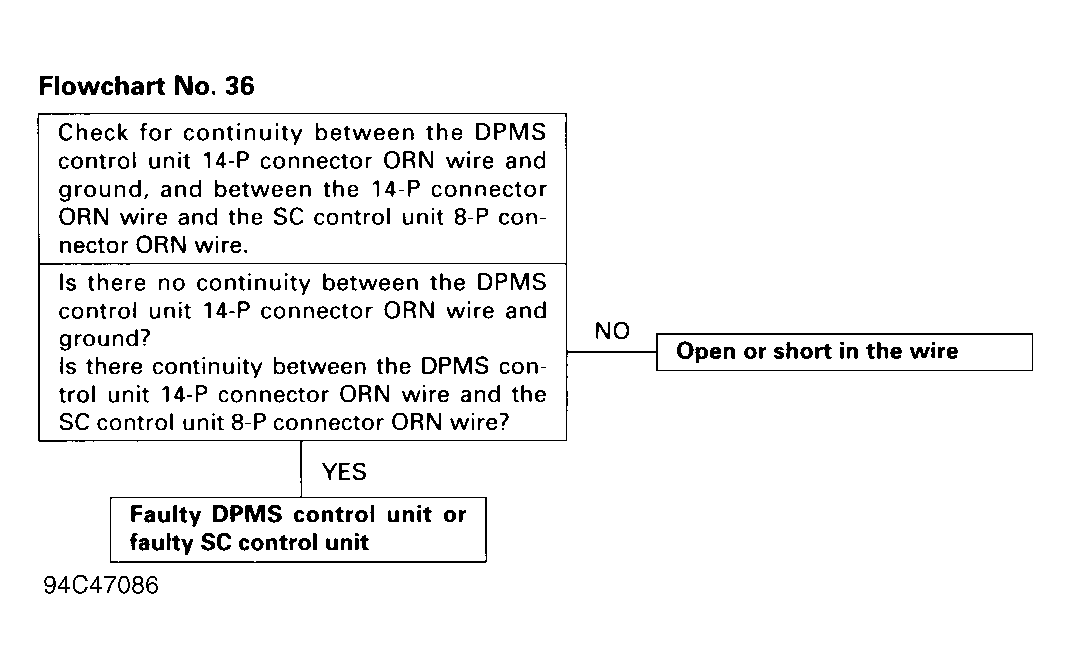

Fig 44: Flow Chart No. 36

G94C47086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

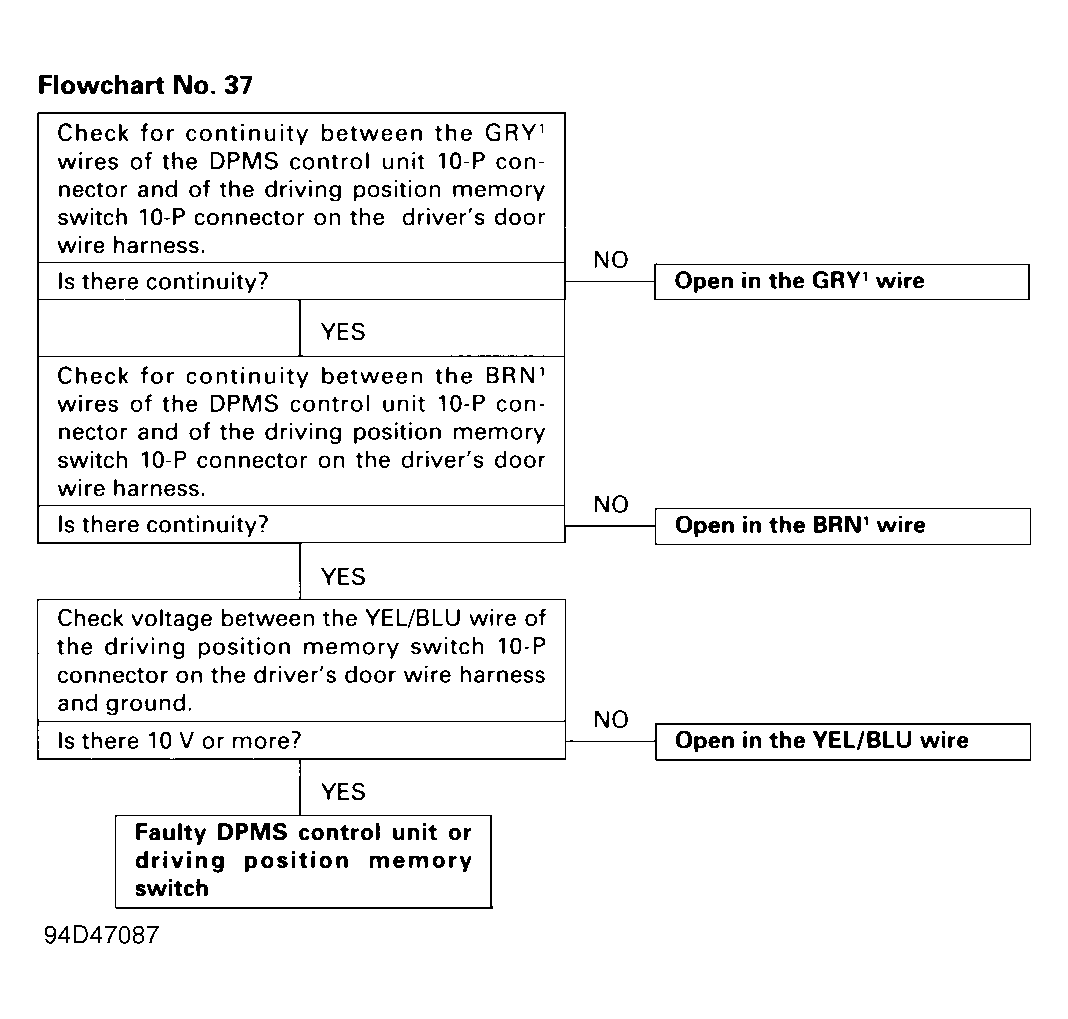

Fig 45: Flow Chart No. 37

G94D47087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For applicable connector terminals, see Figure -75

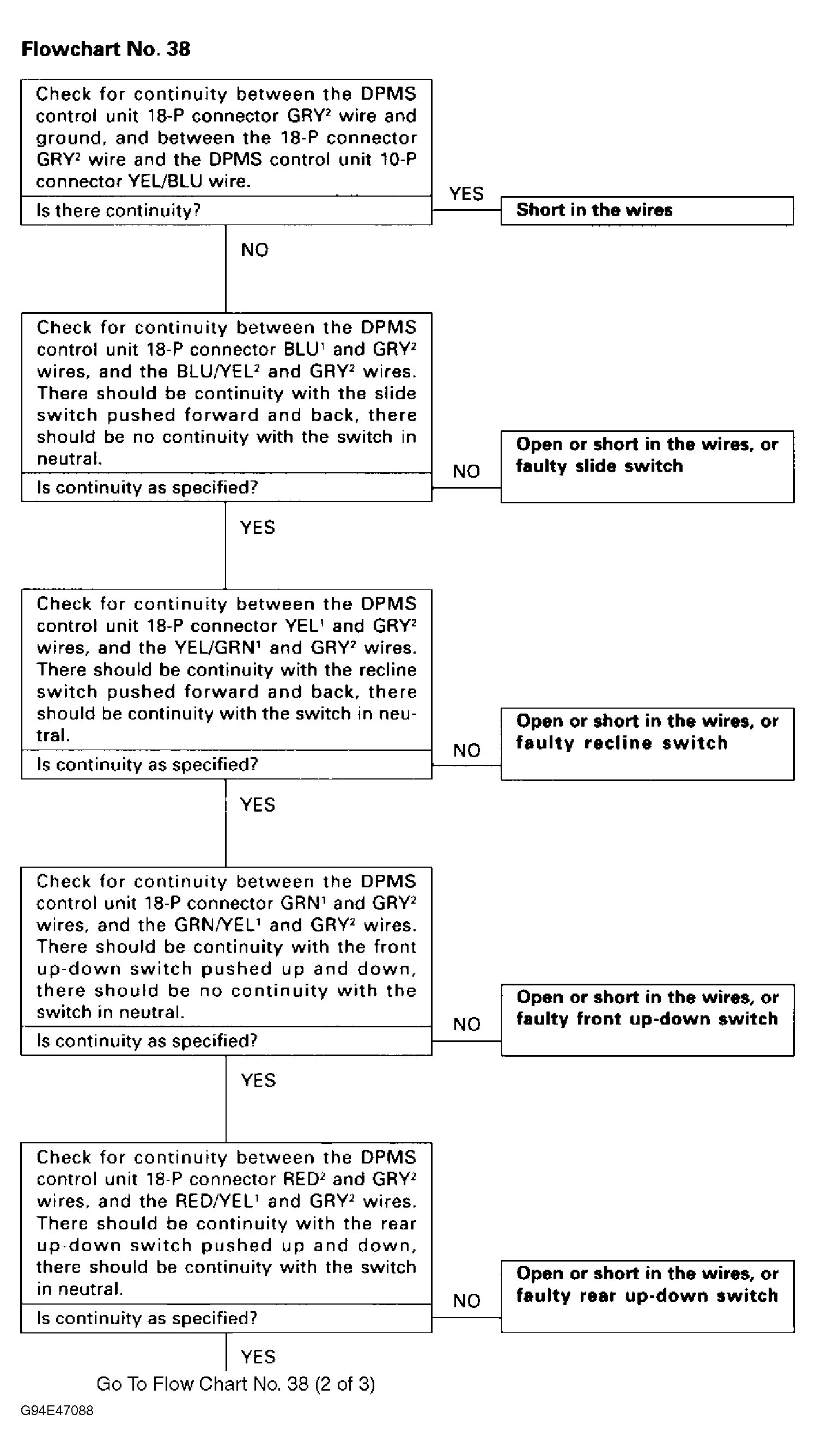

Fig 46: Flow Chart No. 38 (1 Of 3)

G94E47088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

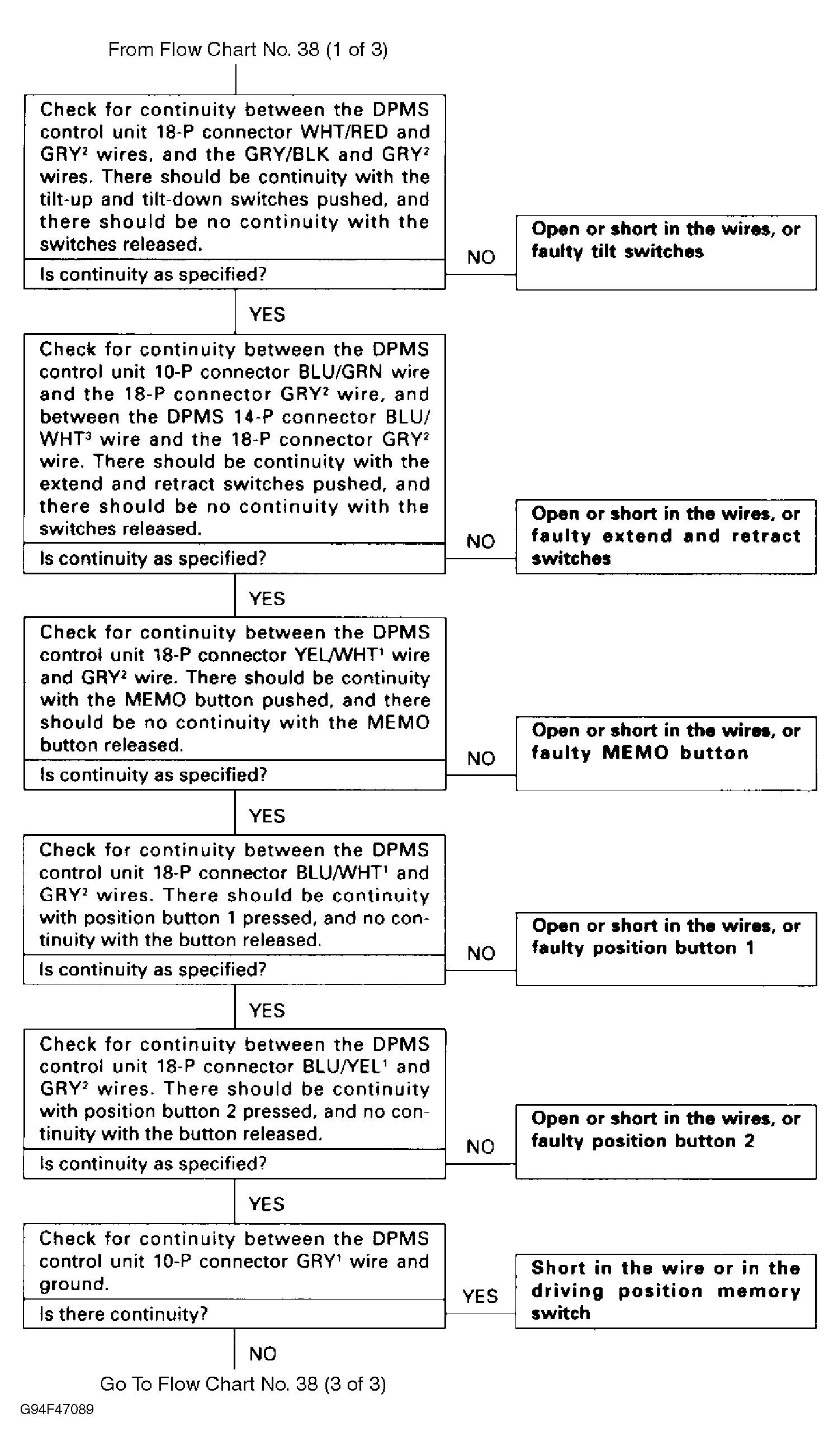

Fig 47: Flow Chart No. 38 (2 Of 3)

G94F47089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

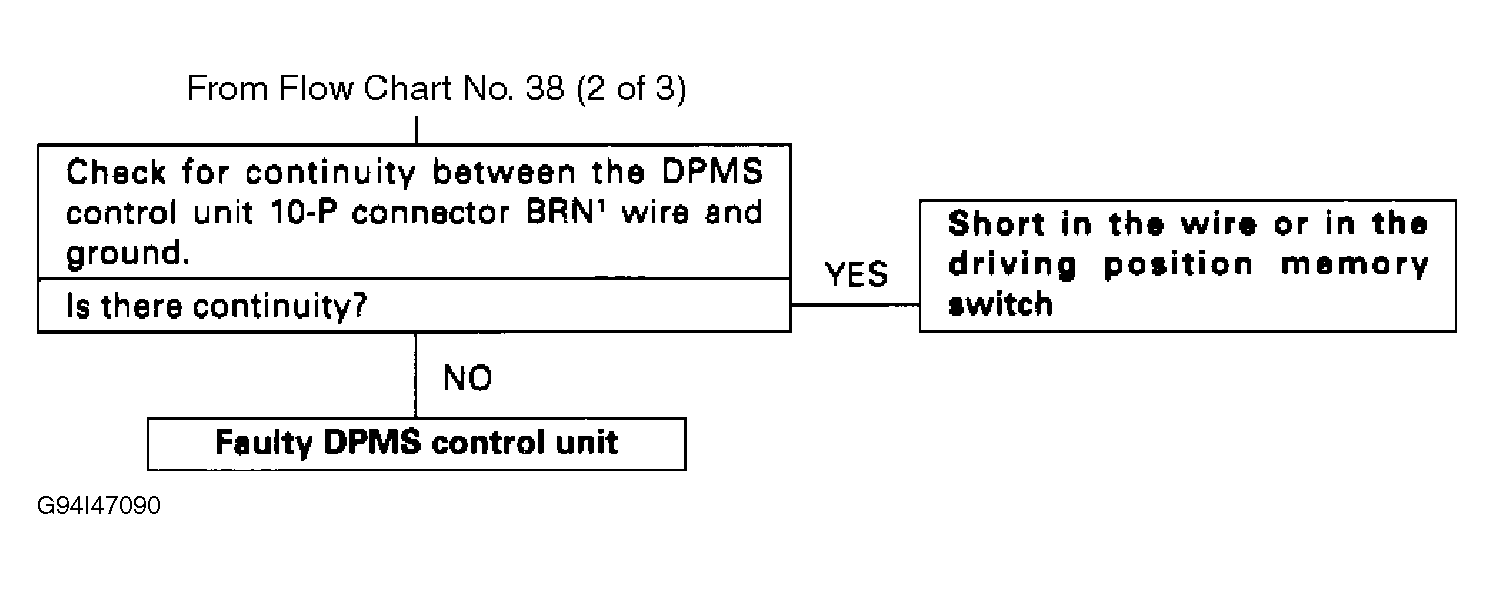

Fig 48: Flow Chart No. 38 (3 Of 3)

G94I47090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

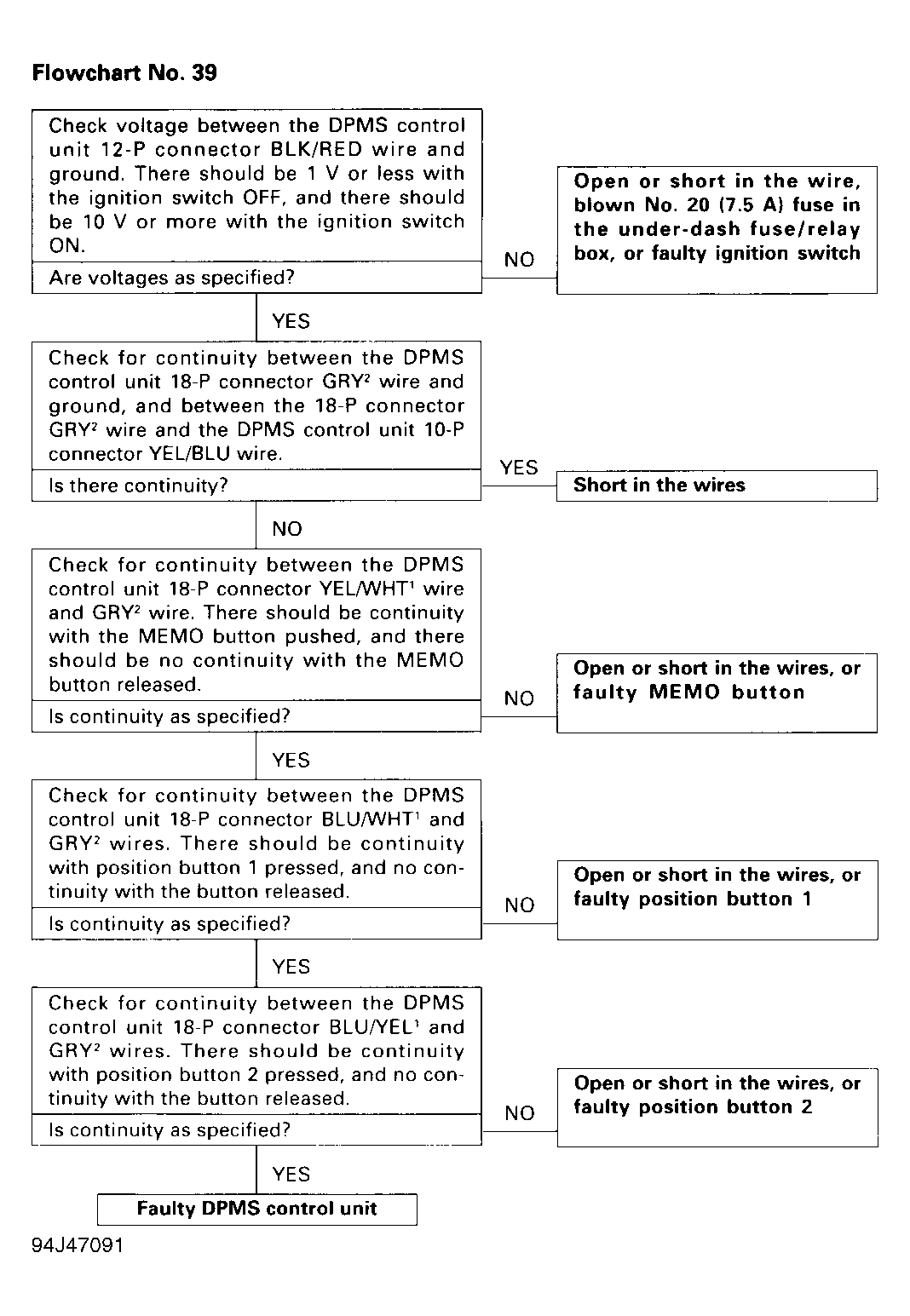

Fig 49: Flow Chart No. 39

G94J47091

Courtesy of AMERICAN HONDA MOTOR CO., INC.
