| Engine Stiffener Mounting Bolts |
| 8 mm |
16 (22) |
| 12 mm |
55 (75) |
| Exhaust Pipe Bracket-To-Transaxle Bolt |
| 8 mm |
16 (22) |
| 10 mm |
29 (39) |
| Exhaust Pipe-To-Manifold Nut |
40 (54) |
| Extension Shaft 36-mm Sealing Bolt |
58 (79) |

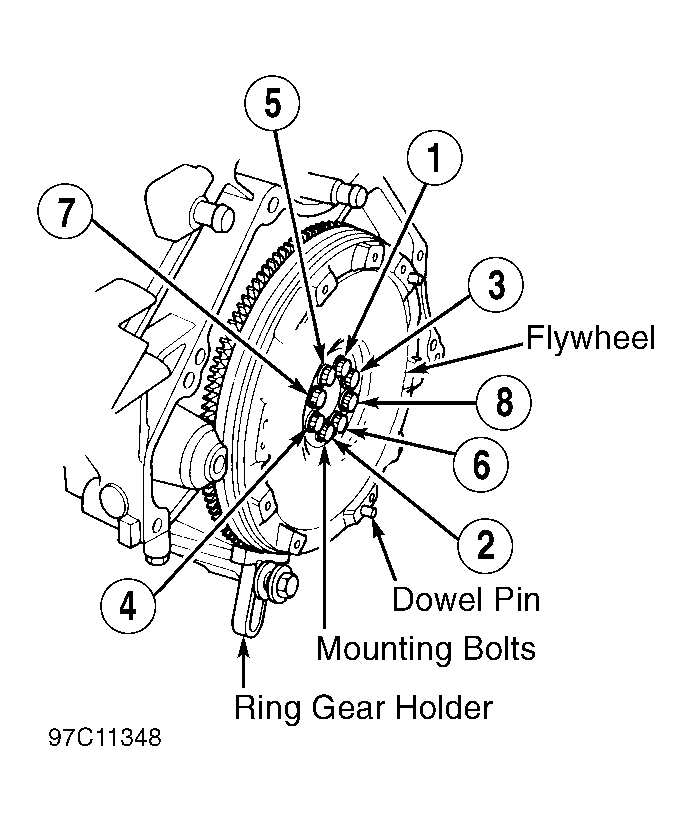

| Flywheel-To-Crankshaft Bolt |
76 (103) |
| Lower Engine Shield Bolts |
29 (39) |
| Master Cylinder Mounting Stud |
10 (14) |

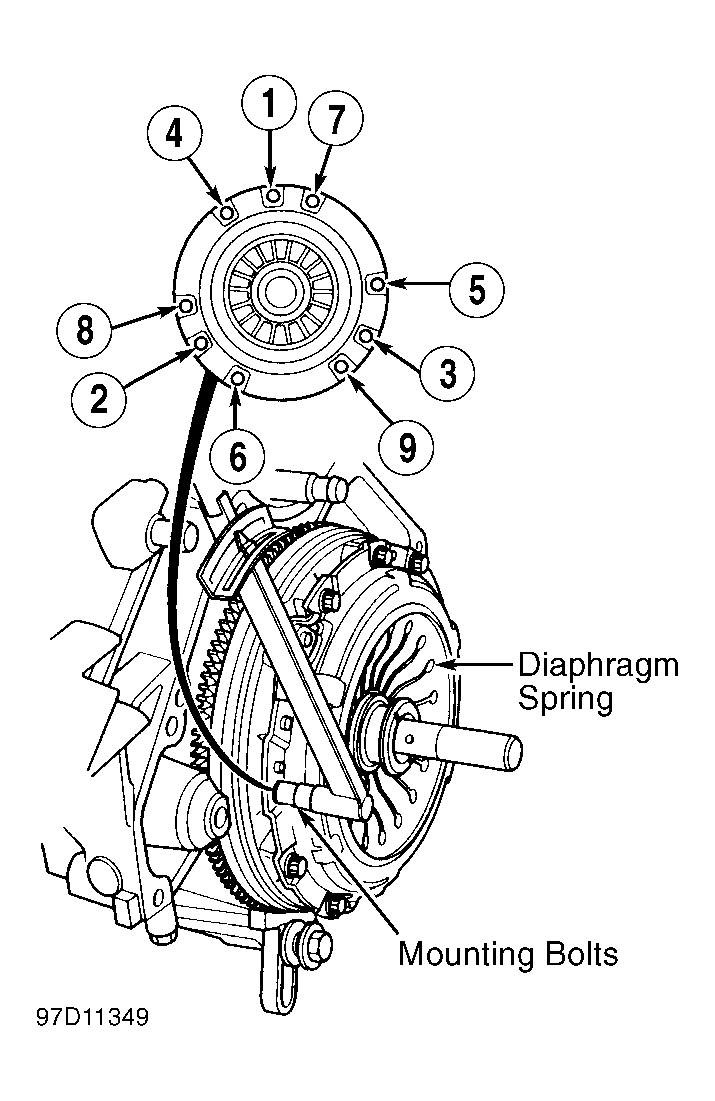

| Pressure Plate-To-Flywheel Bolt |
19 (26) |
| Release Cylinder-To-Housing Bolt |
16 (22) |
| Steering Gear Bolts |
44 (60) |
| Transaxle Mount Bolt |
29 (39) |
| Transaxle Mount Nut |
36 (49) |
| Transaxle Shift Rod Bolt |
16 (22) |
| Transaxle-To-Engine Mounting Bolts |
| 12 mm |
| Lower |
47 (64) |
| Upper |
55 (75) |
| Transaxle Torque Rod Bolt |
16 (22) |
