Component Locations

NOTE: For component locations, see Fig 1 .For more information on component locations, including grounds, see 1995-96 ACURA -- NSX & NSX-T .

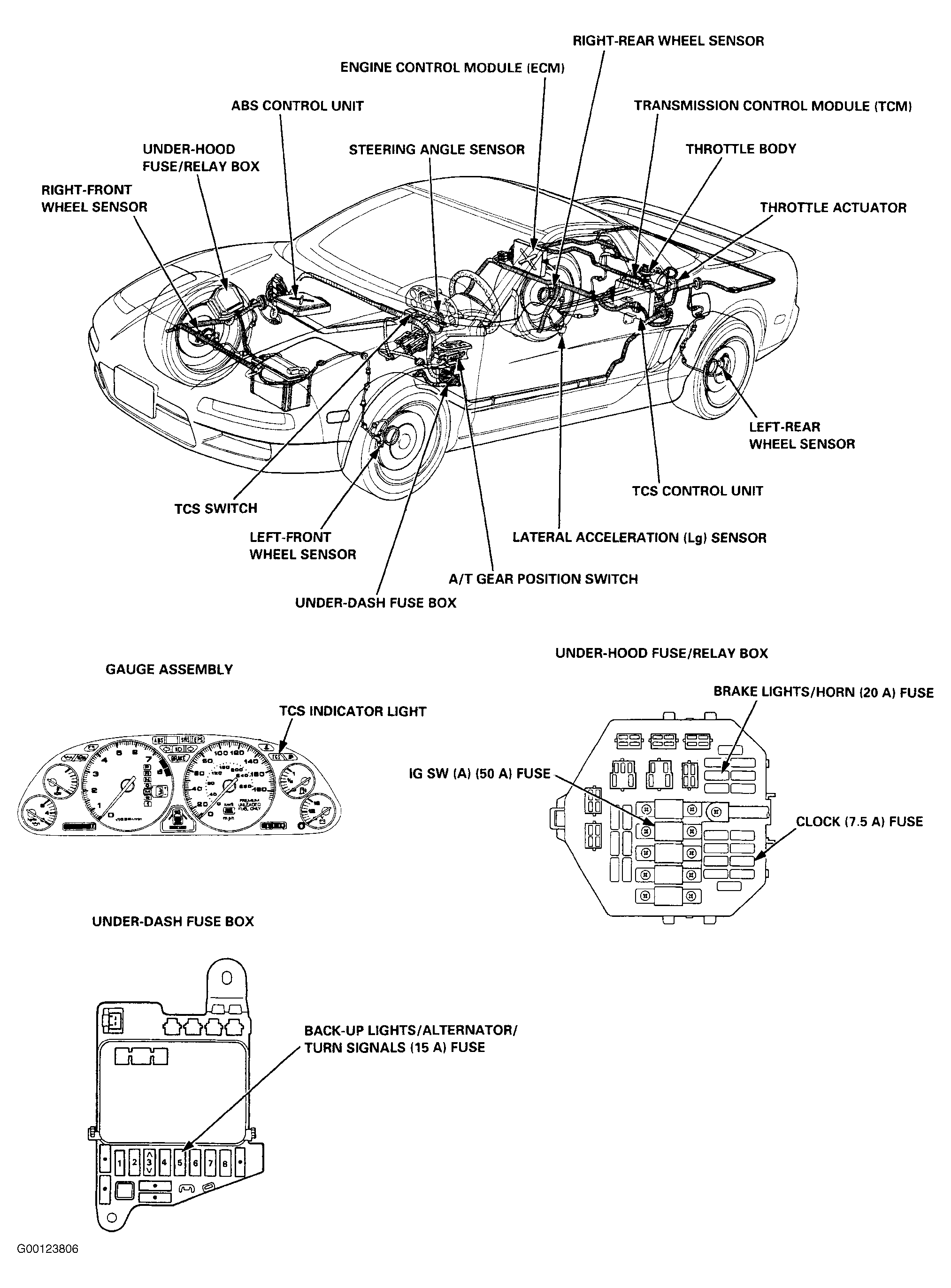

Fig 1: Locating Traction Control System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
