Diagnostic Trouble Code Definitions

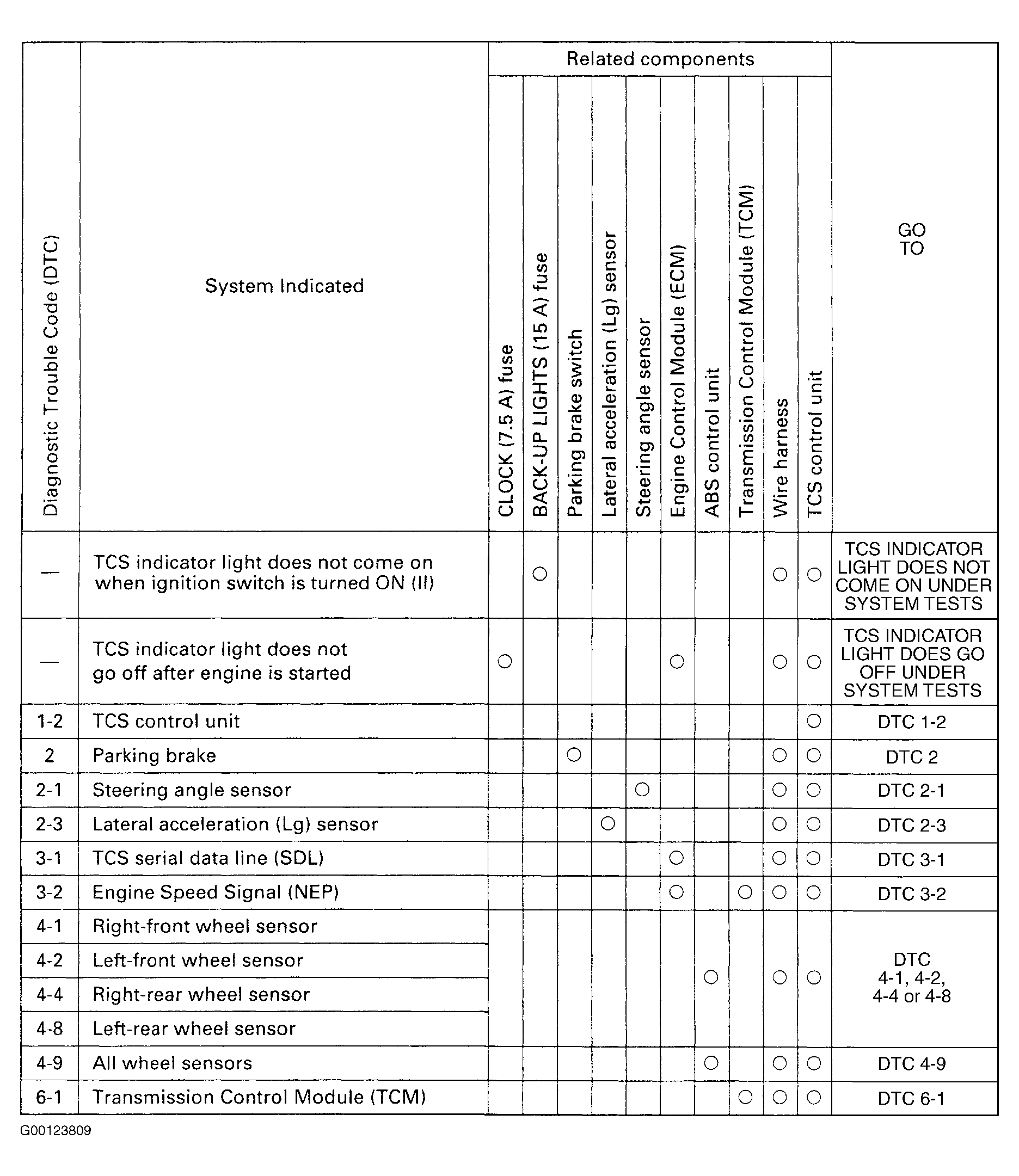

DIAGNOSTIC TROUBLE CODE (DTC) LIST
| DTC | Description |
|---|---|
| DTC 1-2 | TCS CONTROL UNIT |
| DTC 2 | PARKING BRAKE |
| DTC 2-1 | STEERING ANGLE SENSOR |
| DTC 2-3 | LATERAL ACCELERATION (Lg) SENSOR |
| DTC 3-1 | TCS SERIAL DATA LINE (SDL) |
| DTC 3-2 | ENGINE SPEED SIGNAL (NEP) |
| DTC 4-1, 4-2, 4-4, 4-8 | WHEEL SENSOR |
| DTC 4-9 | ALL WHEEL SENSOR |
| DTC 6-1 | TRANSMISSION CONTROL MODULE (TCM) |
