Lateral Acceleration Detection

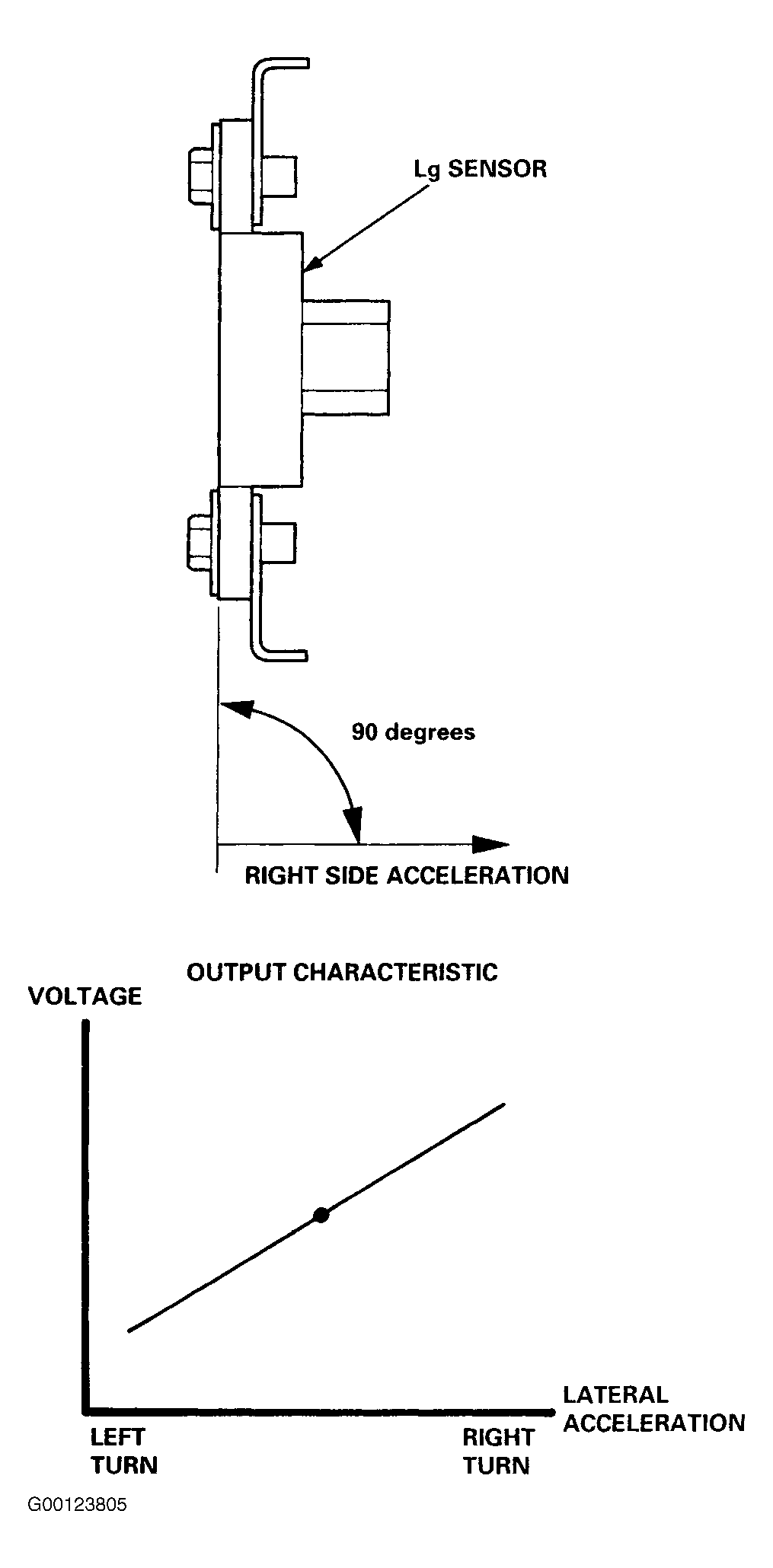

Lateral acceleration is detected by the lateral acceleration (Lg) sensor located under the rear center trim panel. The Lg sensor varies the output voltage in accordance with the left or right side acceleration and sends it to the TCS control unit as a lateral acceleration signal.
