TCS Control Unit Terminal Arrangement

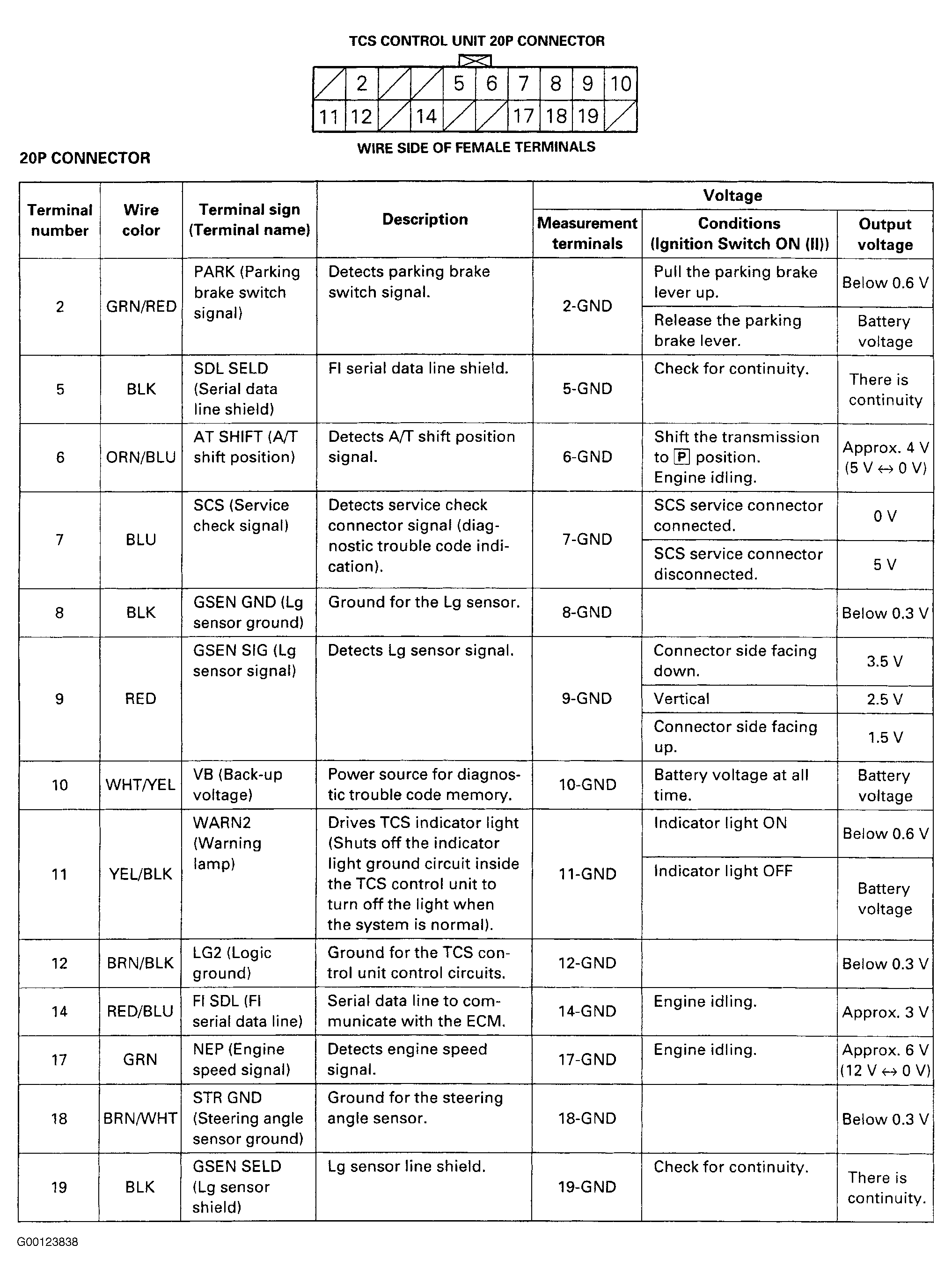

Fig 1: TCS Control Unit Terminal Arrangement & Pin Out Values (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

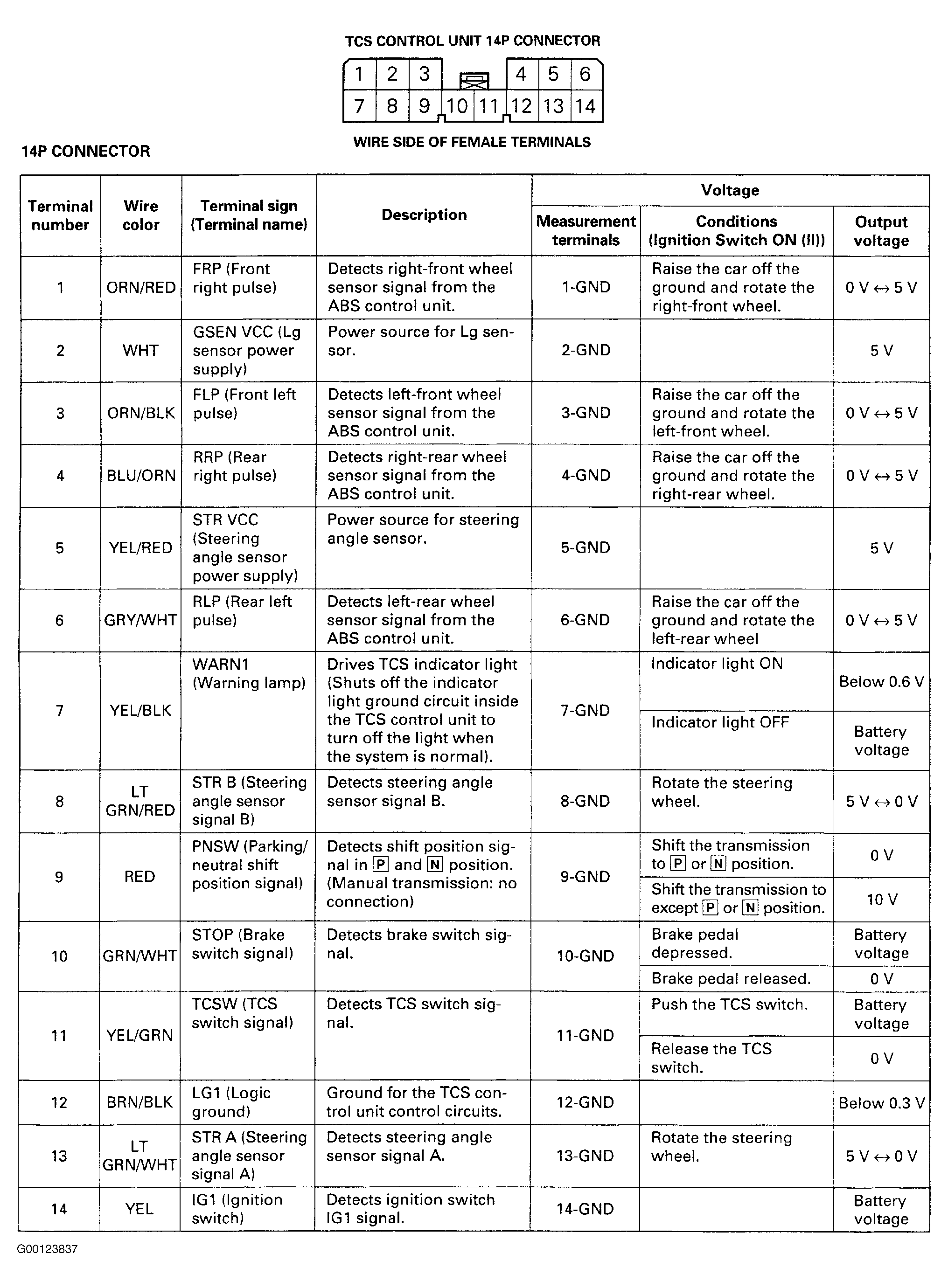

Fig 2: TCS Control Unit Terminal Arrangement & Pin Out Values (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
