Ignition Timing

IGNITION TIMING ⁽¹⁾ (Degrees BTDC - RED MARK @ RPM)

Application

⁽²⁾ Man. Trans.

⁽³⁾ Auto. Trans.

NSX & NSX-T

13-17 @ 750-850

13-17 @ 730-830

⁽¹⁾	Install SCS Service Connector (07PAZ-0010100) to service check connector before checking timing.

⁽²⁾	Manual transaxle in Neutral.

⁽³⁾	Automatic transaxle in Neutral or Park.

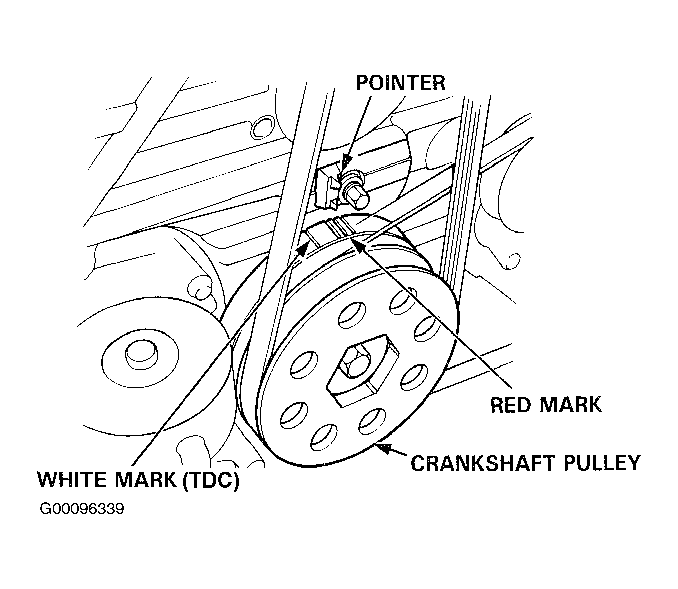

Fig 1: Locating Ignition Timing Marks

Courtesy of AMERICAN HONDA MOTOR CO., INC.
